Namaqualand 0-4-0WT Condenser
zurück
Südafrika | 1886
3 Stück

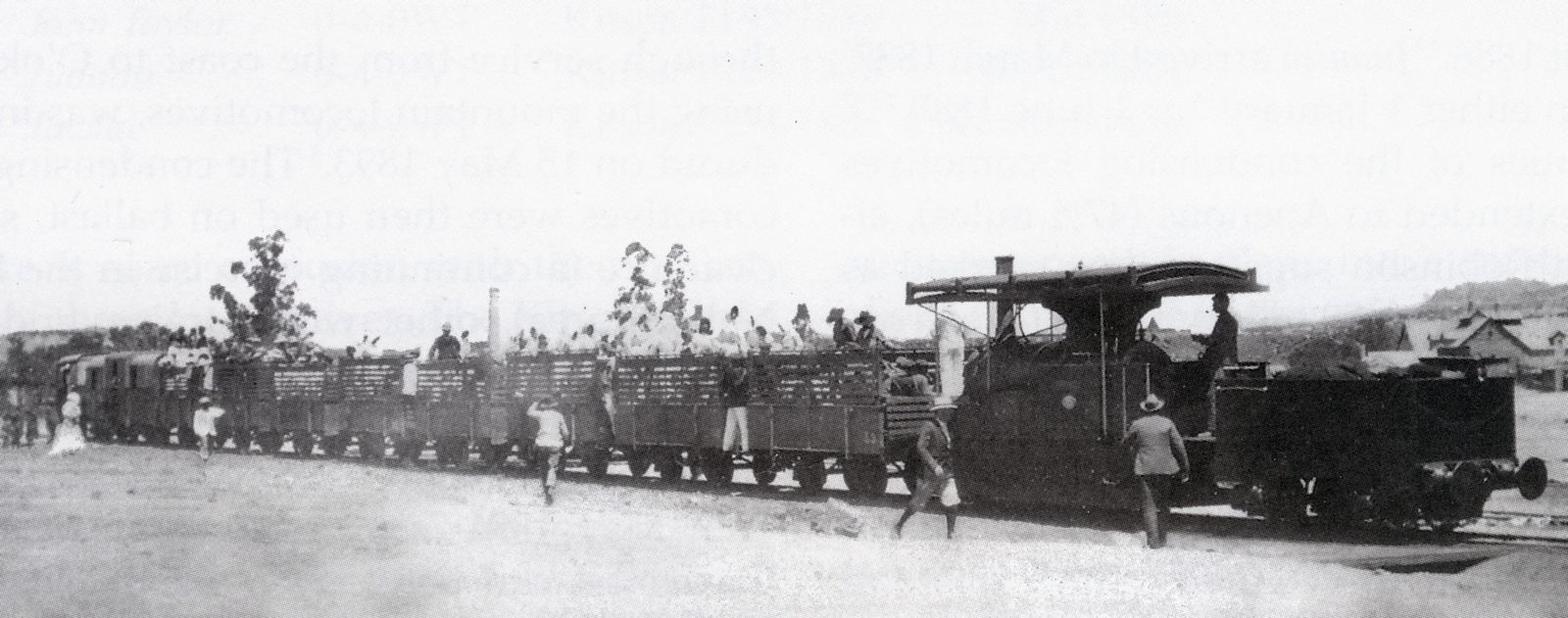

Eine der Loks mitsamt Tender und einem Ausflugszug
Eine der Loks mitsamt Tender und einem Ausflugszug
Transnet Heritage Foundation Library
Allgemein
Bauzeit1886-1888
HerstellerKitson & Co.
Achsfolge0-4-0WT (Four-coupled)
Spurweite2 ft 6 in (Zwei Fuß sechs Zoll)
Maße und Gewichte
Radstand6 ft
Fester Radstand6 ft
Dienstmasse31,808 lbs
Reibungsmasse31,808 lbs
Gesamtmasse51,744 lbs
Achslast15,906 lbs
Wasservorrat464 us gal
Brennstoff800 lbs (Kohle)
Kessel
Rostfläche7.3 sq ft
Strahlungsheizfläche30 sq ft
Rohrheizfläche157.6 sq ft
Verdampfungsheizfläche187.6 sq ft
Gesamtheizfläche187.6 sq ft
Triebwerk
Ø Treibräder34 in
Kesseldruck150 psi
DampfdehnungEinfach
Zylinderzwei, 9 x 15 in
Antrieb
AntriebDampf
Geschätzte Leistung80 hp (60 kW)
Opt. Geschwindigkeit11 mph
Anfahrzugkraft4,556 lbf
Berechnete Werte
Dampflok
Güterzug
Personenzug
Tenderlok
Kondensator
