Bavarian D IIII
Bavarian R 3/3, German Reichsbahn class 896, and Polish State Railways TKh101
Germany 1898 73 produced

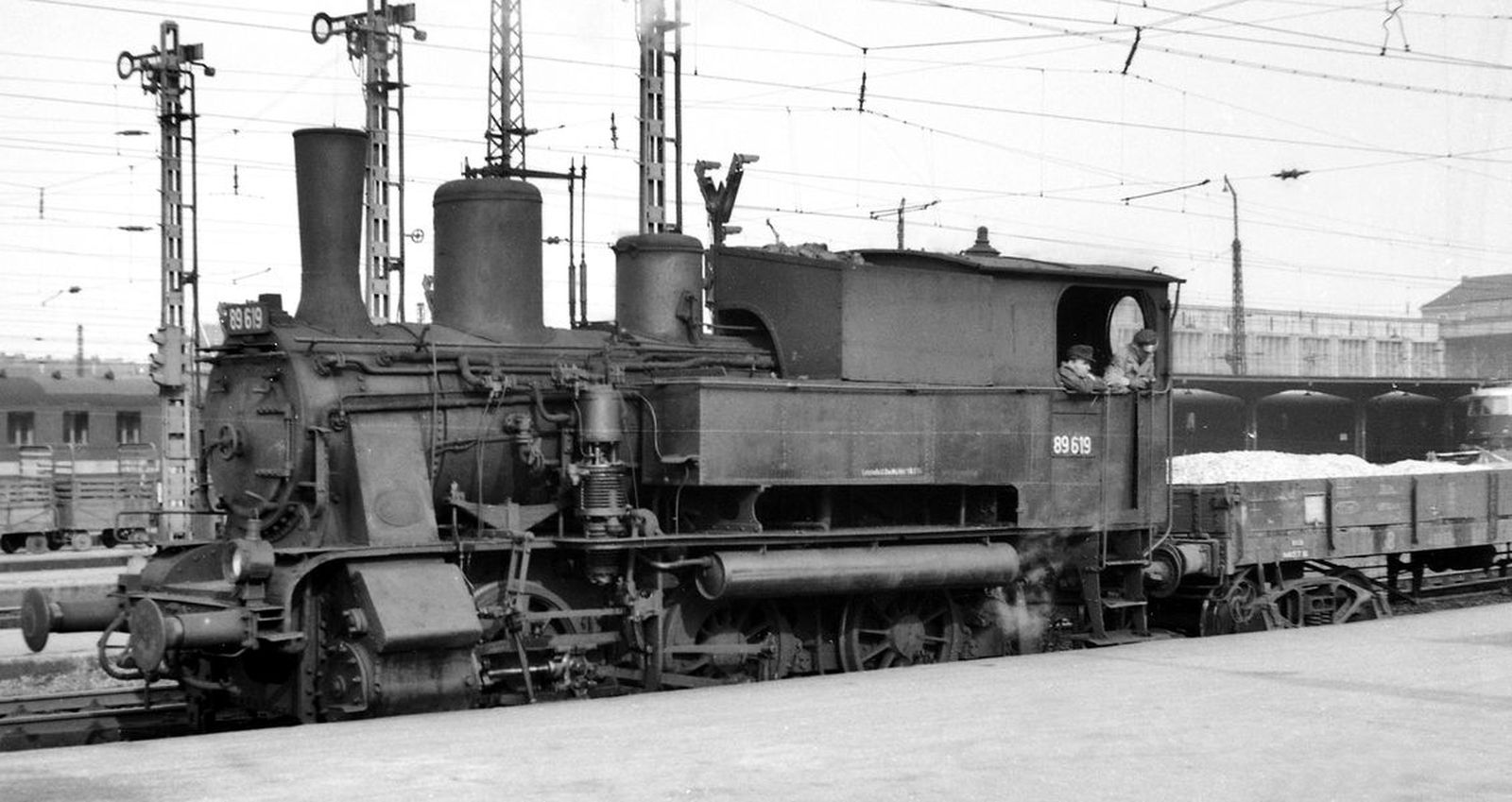

The D IIII was a three-axle tank locomotive for shunting that was introduced after the withdrawals of the last D II used in local service. Between 1898 and 1904, Krauss and Maffei built a total of 73. A prominent feature of these locomotives that can also be seen in the photo is a coal bunker in front of the left side of the cab. Like the similar locomotives built from 1906, they later got the designation R 3/3. Three came to Poland after World War I and became the TKh101. The remaining 70 locomotives became Reichsbahn class 896. Most survived World War II and came to the Bundesbahn, where the last one was withdrawn in 1960.
Technical data
General
- Built
- 1898-1904
- Manufacturers
- Maffei, Krauss
- Wheel arrangement
- 0-6-0T (Six-coupled)
- Gauge
- 1,435 mm (Standard gauge)
Dimensions and weights
- Length
- 9.41 m
- Service mass
- 44.8 t
- Adhesion mass
- 44.8 t
- Axle load
- 15.1 t
Boiler
- Grate area
- 1.61 m²
- Evaporative heating surface
- 89.6 m²
- Total heating surface
- 89.6 m²
Power plant
- Driver diameter
- 1,216 mm
- Boiler pressure
- 12 bar
- Expansion type
- simple expansion
- Cylinders
- two, 420 x 610 mm
Power
- Power source
- steam
- Indicated power
- 315 kW
- Top speed
- 45 km/h
- Starting effort
- 90.3 kN
Calculated values
- Factor of adhesion
- 1 : 4.87
- Optimal speed
- 21 km/h
- Power-to-weight ratio
- 7.0 kW/t
- Adhesive weight/Total
- 1 : 1.00
- Tractive force/Heating surface
- 1 : 21.04
- Grate area/Heating surface
- 1 : 55.65
