Midland No. 1550
British Rail BEL 1
go back
Great Britain | 1913
only one produced

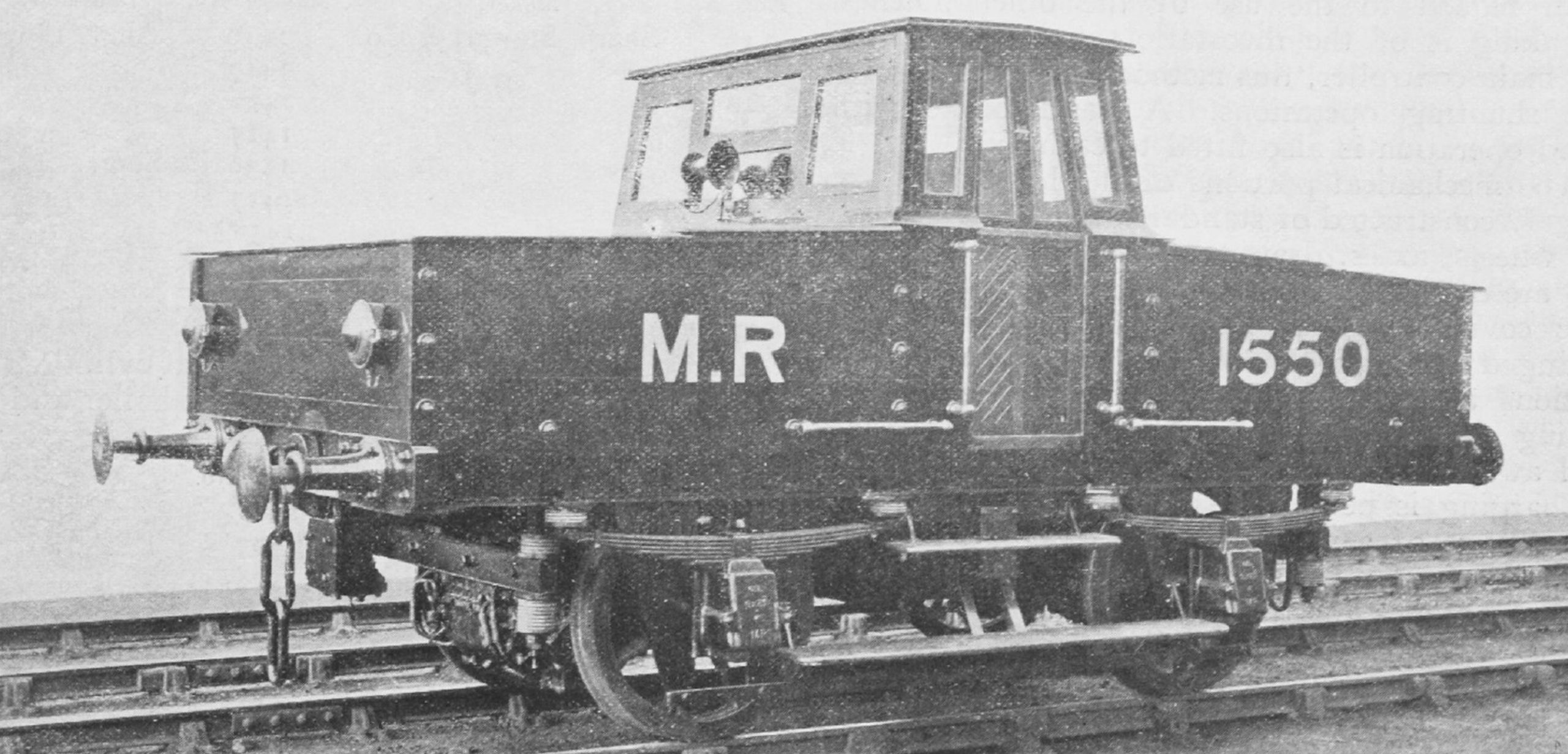

Image of locomotive
Locomotive Magazine, March 1916

This was a small battery locomotive built by the Midland Railway in their own shops at Derby in 1913. It was used for shunting and sorting coal trains in the West India Docks in central London, a task that had previously been carried out by horses. The rails in the docks had no direct rail connection to the network and the wagons were transferred using hydraulic hoists, so there was no possibility for steam locomotives to enter the docks. Similar locomotives were built for industrial service.

The small locomotive had two axles and weighed 17.5 tons including the batteries. Recharging the 300 Ah capacity was done over 1.5 to 2 hours after midnight and each morning before work the locomotive had to be plugged in for a short time to refresh the batteries. Rated capacity were either six 15-ton wagons or twelve six-ton wagons. Braking was also done by a rheostatic brake since feeding back current into the batteries was not possible. British Railways designated it BEL 1 (Battery-electric locomotive 1) and used it until 1964.

General
Built1913
ManufacturerDerby
Wheel arr.B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase8 ft 6 in
Rigid wheelbase8 ft 6 in
Service weight39,200 lbs
Adhesive weight39,200 lbs
Boiler
Power Plant
Power
Power sourceelectric - battery
Continuous power44 hp (33 kW)
Top speed12 mph
Calculated Values
electric locomotive
switcher
battery
