Vossloh Modula
DB AG classes 1020 and 1120
go back
Germany | 2022
more than 2 produced

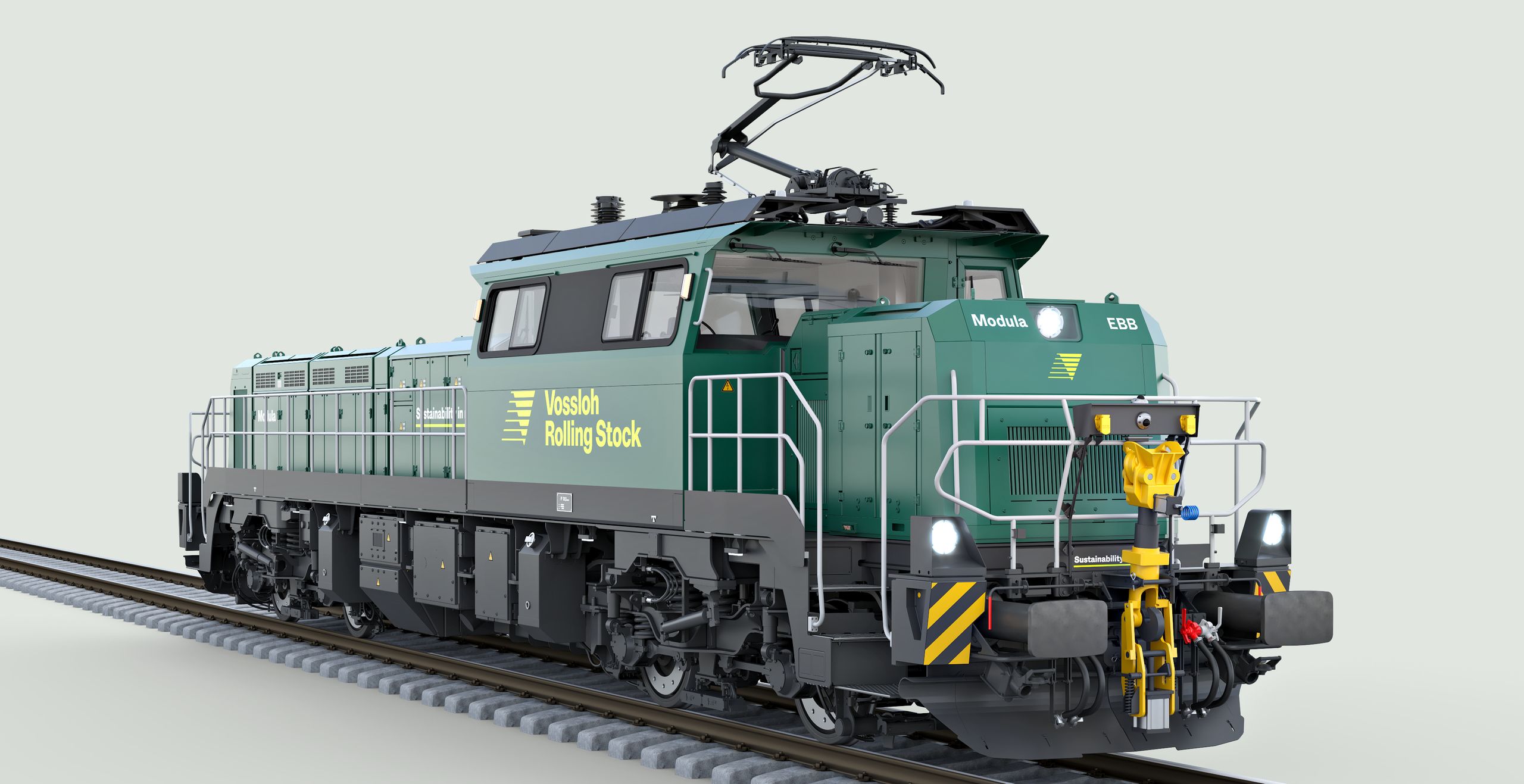

Image of locomotive
Vossloh Rolling Stock

As its name suggests, the Modula is a type of locomotive that can be configured with several different types of traction equipment. Its concept was presented by Vossloh in 2018 as “DM 20” and the first prototype was unveiled in 2022. It had four axles and a large cab that sat between a very long and a very short hood. Depending on configuration, the locomotive weighs between 84 and 90 tonnes.

One variant is the Modula EBB that combines the ability to run under overhead lines with two batteries with a total capacity of 350 kWh. It delivers 2,500 kW under AC, 1,500 kW under DC and 500 kW when running on batteries. The EDD can only be used under AC overhead line and has two 480 kW MAN diesel engines instead of the batteries. The third variant currently on offer is the BDD that can be called a plug-in hybrid. It combines two of the same diesel engines with a single 160 kWh last-mile battery. On battery power it delivers 300 kW. A fourth variant currently under development is the BFC with a hydrogen fuel cell and a 160 kWh battery for shunting.

Although entry into service was originally planned for 2024, there were lengthy delays. As of 2026, several locomotives are in the testing and certification process. In Germany, they will be called classes 1020 and 1120. By now, a low three-digit number has been ordered with a larger number of options. Customers include DB Cargo, Paribus and Railpool.

VariantEBBEDDBDDBFC
General
Builtsince 2022
ManufacturerVossloh
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length61 ft 4 1/4 in
Service weight198,416 lbs185,188 lbs
Adhesive weight198,416 lbs185,188 lbs
Axle load49,604 lbs46,297 lbs
Boiler
VariantEBBEDDBDDBFC
Power Plant
Power
Power sourceelectric - battery + AC/DCelectric - AC + diesel-electricelectric - battery + diesel-electricfuel cell + battery
Electric system15,000 V 16,7 Hz, 25,000 V 50 Hz, 1,500 V15,000 V 16,7 Hz, 25,000 V 50 Hz
Continuous power3,353 hp (2,500 kW)402 hp (300 kW)
Top speed75 mph
Starting effort67,443 lbf
EngineMAN D3876
Engine type2x 6-cyl. diese1
Engine output1,287 hp (960 kW)
Calculated Values
diesel locomotive
electric locomotive
dual power
Batterie
last mile diesel
freight
switcher
fuel cell
three-phase AC
multi-system
last changed: 09/2026
