German Federal Railway class 210
Germany | 1970
8 produced

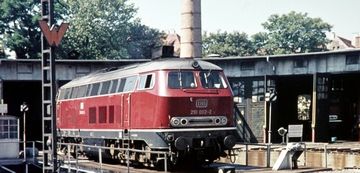

210 002 in July 1974 in Lindau
210 002 in July 1974 in Lindau
Ion Tichy

As locomotives with pure turbine propulsion consumed too much, eight locomotives of the class 210 were built after the prototype V 169 001 from 1970. In principle, this was a class 218, whose 2,500 hp diesel was supplemented by a 1,150 hp turbine. This turbine needed little space, could burn the same diesel fuel and was switched on when heavy express trains had to be accelerated. The locomotives were used successfully between Munich and the Allgäu until 1978, when the first signs of fatigue appeared due to the frequent switching on and off. The turbines were then removed and the locomotives were redesignated as class 2189. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1970-1971
ManufacturerKrupp
Axle configB-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length53 ft 9 11/16 in
Wheelbase37 ft 4 13/16 in
Rigid wheelbase9 ft 2 1/4 in
Service weight180,779 lbs
Adhesive weight180,779 lbs
Axle load45,195 lbs
Boiler
Power Plant
Power
Power sourcediesel-hydraulic + gas turbine
Top speed99 mph
Starting effort52,830 lbf
EngineMTU 12V 956 TB 10 + AVCO Lycoming T53-L 13
Engine typeV12 diesel + gas turbine
Fuel975 us gal (diesel)
Engine output3,599 hp (2,684 kW)
Calculated Values
diesel locomotive
gas turbine
passenger
freight
last changed: 03/2023
Swiss Federal Railways Am 4/6
Switzerland | 1938
only one produced

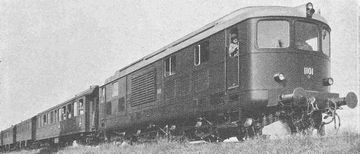

Image of locomotive
Schweizerische Bauzeitung, Band 119, Heft 20

In 1938, BBC approached the SBB with the idea to build a locomotive that was powered by a gas turbine. The SBB agreed with the limitations that the six-axle locomotive should have a maximum weight of 92 tonnes and a top speed of 110 km/h. The Am 4/6 was built by the SLM with a turbine and electrical equipment from BBC and was ready for testing in 1941, numbered 1101.

Like the Ae 4/6, it had two central powered axles in the frame and one bogie at each end with a powered and a leading axle. The turbine was started by an auxiliary diesel engine and drove a generator that powered all four traction motors. Due to the weight restrictions, the power of the turbine was limited to 2,200 hp. In medium to high power settings, the locomotive reached a total efficiency of 15 to 18 percent, but at lower settings it dropped to below 15 percent.

Trials also took place at the SNCF in 1945 and 1946 and at the Bundesbahn in 1950. In general the performances of the locomotive were favorable, but the efficiency was lower than that of diesel locomotives. Additionally, the SBB didn't have many non-electrified lines at this time and multiple failures would have required a rebuilding. So it was withdrawn in 1954. The only export order for a similar locomotive came from the British GWR in 1946 and was directly delivered as British Railways No. 18000.

To test the multi-current equipment for the new TEE train sets, the Am 4/6 was rebuilt into a three-system electric locomotive between 1958 and 1961. The bogies and traction motors were retained, but it got a transformer for AC service, starting resistors for DC service and a new body. It was put into service in 1964, but most of the time only performed secondary duties due to its low power of only 1,692 kW. After the transformer had been removed due to damage in 1976, the locomotive was only used in the DC network between Geneva and the French border. It was finally withdrawn in 1978.

Variantas builtrebuilt Ae 4/6III
General
Built19381961
ManufacturerSLM, BBCSLM, BBC, SBB
Axle config1A-B-A1
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length53 ft 7 5/16 in
Service weight203,707 lbs176,370 lbs
Adhesive weight130,073 lbs125,663 lbs
Axle load32,518 lbs31,416 lbs
Boiler
Variantas builtrebuilt Ae 4/6III
Power Plant
Power
Power sourcegas turbine-electricelectric - AC/DC
Electric system15.000 V 16⅔ Hz, 25,000 V 50 Hz, 1,500 V
Hourly power2,269 hp (1,692 kW)
Top speed68 mph
Starting effort28,551 lbf32,597 lbf
Engine typegas turbine
Engine output2,170 hp (1,618 kW)
Calculated Values
turbine
gas turbine-electric
passenger
freight
prototype
last changed: 02/2025
Union Pacific GTEL (Gas Turbine Electric Locomotive)
United States | 1952
55 produced

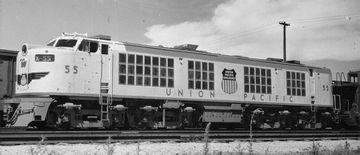

X-55, a member of the first generation
X-55, a member of the first generation
Arthur E. Stensvad / collection Taylor Rush

Although the conversion from steam to other types of traction in the United States had begun before World War II, there were still no single diesel locomotives to replace the large steam locomotives. Since the diesel engines at that time did not yet produce 2,000 hp and there were steam locomotives with more than 5,000 hp to be replaced, experiments were carried out with other energy sources. There were also other attempts with gas turbines, in which the power was transmitted electrically, just like with the diesel locomotives. However, the Union Pacific was the only railroad company that purchased entire series of gas turbine-electric locomotives and used them profitably on a large scale. The turbines, generators and traction motors came from General Electric, while ALCO manufactured the mechanical part.

A key consideration when using gas turbines was the high fuel consumption, which was about twice as high compared to diesel-electric locomotives. The solution was to use heavy fuel oil, which was a waste product from refineries in large quantities and therefore cheap to obtain. However, there were problems with the very high viscosity and the dirt particles it contained, which could be avoided by heating the oil to around 200 degrees Fahrenheit and filtering it accordingly.

The 1948 prototype stood on four two-axle bogies and had a 4,800 hp turbine, of which 4,500 hp was available for traction. The engine had two driver's cabs, which on the outside had a streamlined shape similar to that of ALCO's FA locomotives. For starting the turbine, a 250 hp Cummins diesel was used, which itself had a generator and used the electricity generated to turn the generator connected to the turbine, thus causing the turbine to rotate. The turbine was initially powered by diesel until a steam generator had heated the heavy oil to the required temperature. The turbine ran constantly at nominal speed during operation, while a change in power setting only resulted in a change in the turbine and generator load.

The first generation of ten production engines were built in 1952 and 1953 and were largely based on the prototype. One difference that was visible from afar, however, was that there was only one driver's cab. After the side air intakes were replaced with an intake on the roof in one example, the last four examples were delivered in this form. The engines hauled large numbers of freight trains across the Rocky Mountains and were soon given a 24,000-gallon tender in addition to their 7,200-gallon tank. Propane firing was tested on one example in order to reduce fouling of the turbine blades. This was just as unsuccessful as coupling two locomotives together to form a double unit with 9,000 hp. In the latter case, the exhaust gases from the front turbine often caused flameouts in the rear turbine in tunnels.

The 15 locomotives of the second generation were delivered in 1954 and were technically still largely the same as the first generation. The hoods were now narrower and allowed running boards on both sides of the locomotives, which earned them the nickname “Veranda”. Since the previous attempts with two turbine locomotives coupled to each other were unsuccessful, these locomotives were provided with multiple controls in order to be able to control additional diesel locomotives.

With the introduction of a new turbine with 8,500 hp, the third generation was created, which was delivered 30 times between 1958 and 1961 and replaced the locomotives of the first and second generation. Now a locomotive consisted of two six-axle parts. In the front part, besides the driver's cab, there was the now 850 hp auxiliary diesel and other machinery, while the second part housed the turbine and its generator. Now the 24,000 gallon tender was used from the start and it was now insulated to allow it to be loaded with preheated and filtered oil to avoid warming up on the loco.

The turbine was designed to achieve rated power at 6,000 feet and in very hot temperatures so as not to suffer performance losses. Attempts were made to use the higher turbine output possible at sea level and at lower temperatures by also equipping the tender with traction motors. Since this effort was not worthwhile, the project was not pursued further.

The locomotives were used so intensively that the Union Pacific stated at times that ten percent of its freight traffic was handled by turbine locomotives. On routes with a ruling grade of 1.14 percent, the permissible train weight was set at 5,180 short tons. The locomotives were phased out in 1969, when the price of heavy oil had risen sharply due to increased uses. The practice of having heavy trains pulled by several diesel locomotives in multiple was then continued. By then all locomotives had clocked up more than a million miles. Today there are only two pieces of the third generation remaining that are on static display.

Variantfirst generationthird generation
General
Built1952-19531958-1961
ManufacturerALCO-GE, General Electric
Axle configB+B-B+B C-C+C-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length83 ft 6 1/2 in165 ft 11 in
Service weight552,000 lbs849,212 lbs
Adhesive weight552,000 lbs849,212 lbs
Total weight1,220,016 lbs
Axle load68,784 lbs70,768 lbs
Boiler
Variantfirst generationthird generation
Power Plant
Power
Power sourcegas turbine-electric
Top speed65 mph
Starting effort138,000 lbf212,312 lbf
EngineGE Frame 5
Engine typegas turbine
Fuel7,200 us gal (oil)26,500 us gal (oil)
Engine output4,500 hp (3,356 kW)8,500 hp (6,338 kW)
Calculated Values
turbine
gas turbine-electric
freight
prototype
last changed: 09/2022
Second generation No. 64 together with FEF-3 No. 826 in front of a fruit train
Second generation No. 64 together with FEF-3 No. 826 in front of a fruit train
H.R. Griffiths Jr.
Side view of the third generation
Side view of the third generation
Larryzap
