Steam Locomotives of the Victorian Railways (VR)[Inhalt]
Victorian Railways class NA
Australia | 1898
17 produced
No. 14A in May 2010 on the Puffing Billy Railway
No. 14A in May 2010 on the Puffing Billy Railway
nzsteam / David Maciulaitis

Baldwin supplied two 2-6-2T two and a half foot gauge tank locomotives to the Victorian Railways in 1898. The VR workshops in assembled two more from the spare parts supplied. Further production locomotives brought the number to 17. Two locomotives had received a four-cylinder compound engine of the Vauclain type, the rest had a two-cylinder simple engine. The first locomotive was scrapped in 1929 due to wear, most were retired between 1945 and 1960. Today there are six machines on the Puffing Billy Railway, five of which are operational.

Variantsimplecompound
General
Built1898-1915
ManufacturerBaldwin, NewportBaldwin
Axle config2-6-2T (Prairie)
Gauge2 ft 6 in (Two feet six inch)
Dimensions and Weights
Length30 ft 10 in
Wheelbase21 ft 10 in
Rigid wheelbase8 ft
Service weight76,748 lbs78,176 lbs
Adhesive weight57,204 lbs58,128 lbs
Axle load21,224 lbs20,832 lbs
Water capacity780 us gal
Fuel capacity3,360 lbs (coal)
Boiler
Grate area9.1 sq ft9 sq ft
Firebox area47 sq ft44 sq ft
Tube heating area477 sq ft480 sq ft
Evaporative heating area524 sq ft
Total heating area524 sq ft
Variantsimplecompound
Power Plant
Driver diameter36 in
Boiler pressure180 psi
Expansion typesimplecompound
Cylinderstwo, 13 x 18 infour, HP: 9 x 18 in
and LP: 15 x 18 in
Power
Power sourcesteam
Estimated power250 hp (186 kW)
Optimal speed12 mph17 mph
Starting effort12,929 lbf9,112 lbf
with start valve10,934 lbf
Calculated Values
steam locomotive
tank locomotive
narrow gauge
passenger
freight
Vauclain compound
last changed: 04/2023
Victorian Railways class A2
Australia | 1907
185 produced
No. 986, which is still operational today, around 1916 on the turntable in what was then the North Melbourne depot
No. 986, which is still operational today, around 1916 on the turntable in what was then the North Melbourne depot
AHRS North Williamstown Railway Museum

With the class A2, the Victorian Railways introduced the first class of steam locomotives from 1907, which they had developed themselves and which were also built in their own workshops. The first series of 125 locomotives had Stephenson valve gear and were powered by saturated steam. Between 1915 and 1922, 60 more followed with Walschaerts valve gear and a larger cylinder diameter. Soon they were built with superheaters and the earlier ones were rebuilt.

They were designed for the main line of the VR, which had many steep gradients and tight curves. Although they were express locomotives, they had the highest starting tractive effort of all VR steam locomotives until 1918. Nevertheless, they were approved for speeds of up to 70 mph or 113 km/h and could also go faster if necessary. This made it possible to shorten travel times to times that have only been bettered in modern times.

The machines were also used in front of freight trains. This primarily happened when the axle boxes were worn in the time before the next maintenance. In the 1930s, with the collaboration of Richard Paul Wagner of the Reichsbahn, a new exhaust system was developed that increased drawbar horsepower by more than 40 percent and was retrofitted not only in this class, but also in many other classes.

Due to the great depression and the Second World War, the construction of newer express locomotives was delayed, so that the A2 was the VR's primary express locomotive for over 40 years. After the introduction of the R class, they were increasingly used on branch lines that had since been upgraded to accommodate higher axle loads. In the 1950s there was an increasing number of withdrawals, and the last one disappeared in 1963.

Variant1907 variant1915 variantrebuilt oil-fired
General
Built1907-19141915-1922from 1946
ManufacturerNewport, Ballarat North, Bendigo
Axle config4-6-0 (Ten-wheeler)
Gauge5 ft 3 in (Irish broad gauge)
Dimensions and Weights
Length63 ft 3 3/4 in
Wheelbase26 ft 8 in
Rigid wheelbase13 ft 4 in
Total wheelbase63 ft 7 in
Service weight151,200 lbs163,520 lbs
Adhesive weight120,960 lbs
Total weight259,840 lbs
Axle load40,320 lbs
Water capacity5,644 us gal5,524 us gal5,644 us gal
Fuel capacity11,200 lbs (coal)14,336 lbs (coal)1,801 us gal (oil)
Boiler
Grate area29 sq ft32 sq ft
Firebox area145 sq ft173 sq ft
Tube heating area2,075 sq ft1,702 sq ft
Evaporative heating area2,220 sq ft1,875 sq ft
Superheater area331 sq ft375 sq ft
Total heating area2,551 sq ft2,250 sq ft
Variant1907 variant1915 variantrebuilt oil-fired
Power Plant
Driver diameter73 in
Boiler pressure200 psi185 psi
Expansion typesimple
Cylinderstwo, 21 x 26 intwo, 22 x 26 in
Power
Power sourcesteam
Estimated power1,100 hp (820 kW)1,200 hp (895 kW)1,600 hp (1,193 kW)
Optimal speed26 mph28 mph38 mph
Top speed70 mph
Starting effort26,702 lbf27,107 lbf
Calculated Values
steam locomotive
express
last changed: 12/2023
Victorian Railways class B
Australia | 1861
27 produced
A locomotive in 1862 at Ballarat
A locomotive in 1862 at Ballarat
Victorian Railways
Variantas builtrebuilt
General
Built1861-1881
ManufacturerBlack, Hawthorn & Co., Beyer, Peacock & Co., Phoenix Foundry
Axle config2-4-0 (Porter)
Gauge5 ft 3 in (Irish broad gauge)
Dimensions and Weights
Wheelbase16 ft 9 in
Rigid wheelbase16 ft 9 in
Service weight79,128 lbs
Adhesive weight56,728 lbs
Total weight137,368 lbs
Axle load39,200 lbs
Water capacity2,522 us gal
Fuel capacity8,960 lbs (coal)
Boiler
Grate area15.3 sq ft
Firebox area113.7 sq ft
Tube heating area901.3 sq ft
Evaporative heating area1,015 sq ft
Total heating area1,015 sq ft
Variantas builtrebuilt
Power Plant
Driver diameter72 in
Boiler pressure130 psi140 psi
Expansion typesimple
Cylinderstwo, 16 x 24 intwo, 17 1/2 x 24 in
Power
Power sourcesteam
Estimated power320 hp (239 kW)
Optimal speed22 mph17 mph
Starting effort9,429 lbf12,148 lbf
Calculated Values
steam locomotive
passenger
Victorian Railways class DD
Australia | 1902
261 produced
D<sup>D</sup> No. 5902 on a factory photo
DD No. 5902 on a factory photo

The class DD express locomotive marked the change from the 4-4-0 to the 4-6-0 wheel arrangement for the Victorian Railways. It was the railway's first locomotive, which they developed themselves in 1902 and which was no longer based on British designs. As early as 1907 it was superseded by the more powerful class A2 and was no longer used in express service.

Thanks to its low axle load, it could now be used in mixed service on branch lines. As early as 1907, 58 were rebuilt into 4-6-2T tank locomotives for suburban service in Melbourne and designated class DDE. They were later given the designation D4, but were scrapped in 1924 and 1925 due to electrification.

Production of the normal tender variant ran until 1916, with individual production lots being put out to tender again and again. In order to test the production of their indigenous design abroad, 20 were built at Beyer, Peacock & Co. and at Baldwin. The last locomotives were already delivered with superheaters, and many existing ones were retrofitted. Just as the tank variant was soon called D4, the saturated locomotives were soon called D1 and the superheated ones D2.

D4 No. 279
D4 No. 279
Locomotive Magazine, September 1939

A total of 261 were built. Between 1929 and 1947, 93 locomotives were rebuilt with the more powerful and superheated class K boiler, which now became the D3. About half were scrapped by about 1950, and most of the rest by the 1960s. Only one, used as an inspection locomotive, remained in service until 1974. Today only the 639 is still operational and around 15 others are existing or preserved non-operational.

VariantDDrebuilt D2DDE
General
Built1902-1916from 1914from 1908
ManufacturerNewport, Ballarat North, Bendigo, Baldwin, Beyer, Peacock & Co., Walkers, Thompsons Ltd, Phoenix FoundryNewport
Axle config4-6-0 (Ten-wheeler) 4-6-2T (Pacific)
Gauge5 ft 3 in (Irish broad gauge)
Dimensions and Weights
Length57 ft 4 9/16 in41 ft 10 3/8 in
Wheelbase24 ft 3 1/2 in31 ft 4 1/2 in
Rigid wheelbase13 ft12 ft 10 in
Total wheelbase48 ft 6 in48 ft
Service weight118,720 lbs122,976 lbs154,560 lbs
Adhesive weight86,912 lbs87,808 lbs96,992 lbs
Total weight212,352 lbs217,616 lbs
Axle load29,120 lbs29,344 lbs32,480 lbs
Water capacity5,068 us gal5,058 us gal
Fuel capacity11,200 lbs (coal)
Boiler
Grate area21.2 sq ft22.5 sq ft
Firebox area107.5 sq ft120 sq ft
Tube heating area1,267.5 sq ft1,034 sq ft1,288 sq ft
Evaporative heating area1,375 sq ft1,154 sq ft1,408 sq ft
Superheater area334 sq ft
Total heating area1,375 sq ft1,488 sq ft1,408 sq ft
VariantDDrebuilt D2DDE
Power Plant
Driver diameter61.5 in61 in
Boiler pressure175 psi165 psi185 psi
Expansion typesimple
Cylinderstwo, 18 x 26 intwo, 19 x 26 in
Power
Power sourcesteam
Estimated power700 hp (522 kW)800 hp (597 kW)750 hp (559 kW)
Optimal speed22 mph26 mph20 mph
Starting effort20,375 lbf19,368 lbf24,196 lbf
Calculated Values
steam locomotive
express
tank locomotive
last changed: 03/2024
Victorian Railways class R
Australia | 1951
70 produced

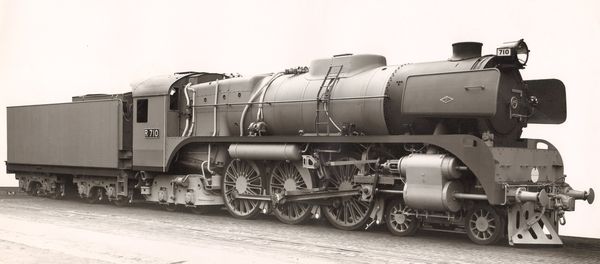

R 710 on a works photo
R 710 on a works photo

The class R was only created after the Second World War as an express locomotive to replace the class A2 ten-wheelers. By installing a stoker, they wanted to ensure that it would perform well with coal of varying grades. The 70 locos arrived at the same time as some diesel and electric locos, giving them a very short career in service pulling express trains. They were then put into a wide variety of services, in which they performed well despite often poor maintenance. Today there are still six locomotives, four of which are still operational and partly had multiple operators. The R 766 was even converted to standard gauge

General
Built1951-1953
ManufacturerNorth British
Axle config4-6-4 (Hudson)
Gauge5 ft 3 in (Irish broad gauge)
Dimensions and Weights
Length77 ft 3 3/16 in
Wheelbase36 ft 3 in
Rigid wheelbase12 ft 10 in
Total wheelbase67 ft
Service weight240,016 lbs
Adhesive weight131,040 lbs
Total weight418,544 lbs
Axle load43,680 lbs
Water capacity10,809 us gal
Fuel capacity13,440 lbs (coal)
Boiler
Grate area42 sq ft
Firebox area285 sq ft
Tube heating area1,958 sq ft
Evaporative heating area2,243 sq ft
Superheater area462 sq ft
Total heating area2,705 sq ft
Power Plant
Driver diameter73 in
Boiler pressure215 psi
Expansion typesimple
Cylinderstwo, 21 1/4 x 28 in
Power
Power sourcesteam
Estimated power2,200 hp (1,641 kW)
Optimal speed44 mph
Starting effort31,653 lbf
Calculated Values
steam locomotive
express
last changed: 07/2023
