Swedish State Railways Pb
go back
Sweden | 1922
2 produced

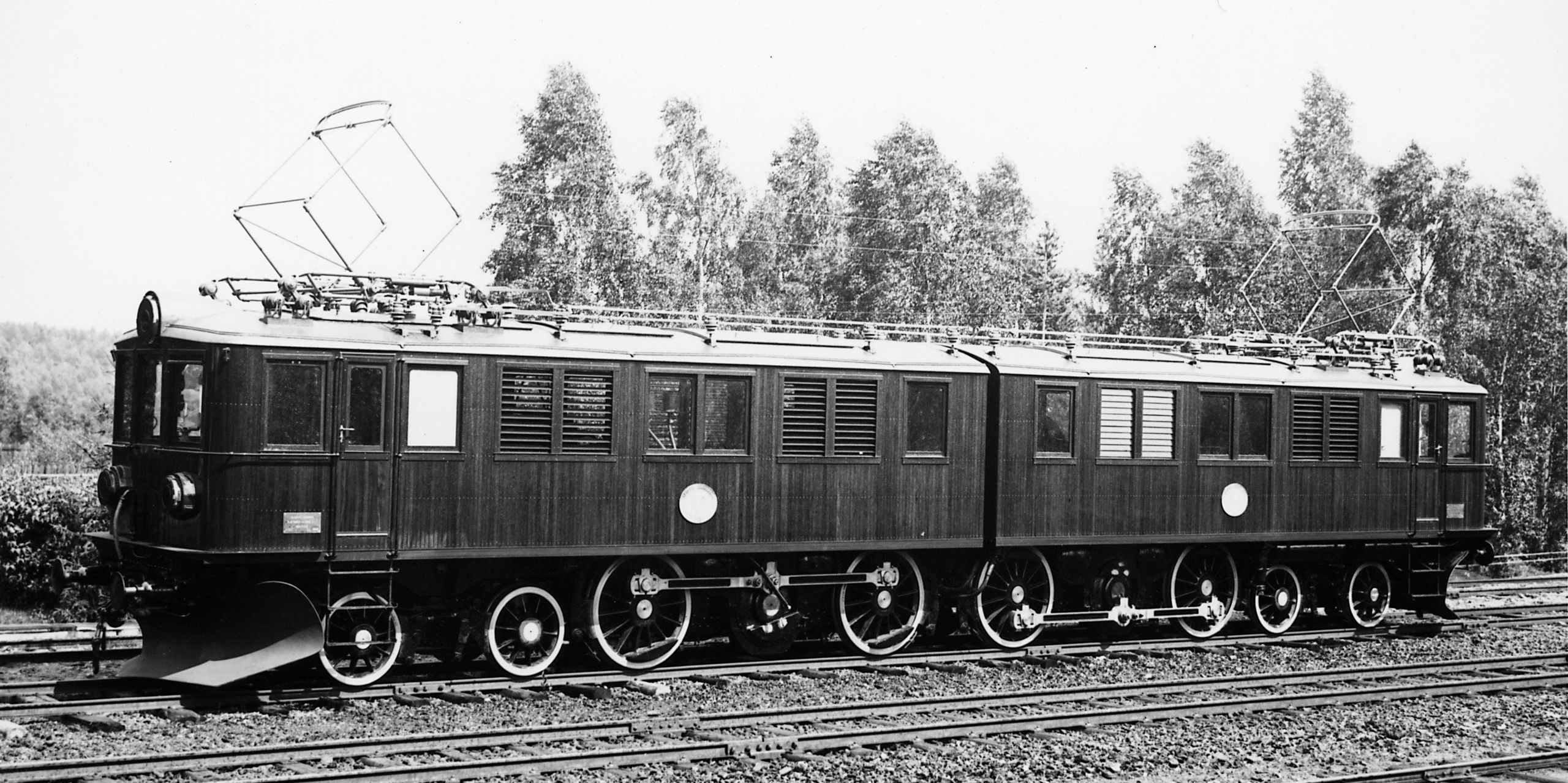

No. 52/53 as built
No. 52/53 as built

The designation Pb stood for two electric double locomotives built for passenger service on the Malmbanan between Kiruna and Riksgränsen. They were built in 1922 to reinforce the two Pa locomotives. Each section had a two-axle leading bogie and two driving axles. Two traction motors powered a common crank axle that was connected to the driving axles via coupling rods. The bodies had been constructed from wood. With 2,260 hp, they could haul 500 tonnes, while top speed was 100 km/h. Each section carried its own number, so 52 and 53 formed a pair, while 54 and 55 formed the second one.

In 1926 the pair 52/53 received steam heating boilers in both sections and then the sections were switched, what resulted in two pairs with one boiler each. As their adhesion turned out to be insufficient and the Ds was introduced into passenger service, the SJ decided to rebuild them into four 1-C-1 single-section locomotives. Most parts of the locomotives had been built new and their bodies were now made of steel. Each one now could haul 300 tonnes. They were moved to the Malmö region in the forties and withdrawn in 1960.

VariantPb (I)Pb (II)
General
Built19221937
Manufacturermechanical part: ASJ, electrical part: ASEA
Wheel arr.2-B+B-2 1-C-1
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length70 ft 2 1/2 in45 ft 8 7/16 in
Wheelbase53 ft 1 13/16 in30 ft 10 1/16 in
Service weight273,373 lbs164,465 lbs
Adhesive weight138,450 lbs98,987 lbs
Axle load34,613 lbs33,510 lbs
Boiler
VariantPb (I)Pb (II)
Power Plant
Power
Power sourceelectric - AC
Electric system15,000 V 16,7 Hz
Hourly power2,226 hp (1,660 kW)1,113 hp (830 kW)
Top speed62 mph
Starting effort40,353 lbf23,830 lbf
Calculated Values
electric locomotive
passenger
two-section
last changed: 03/2026

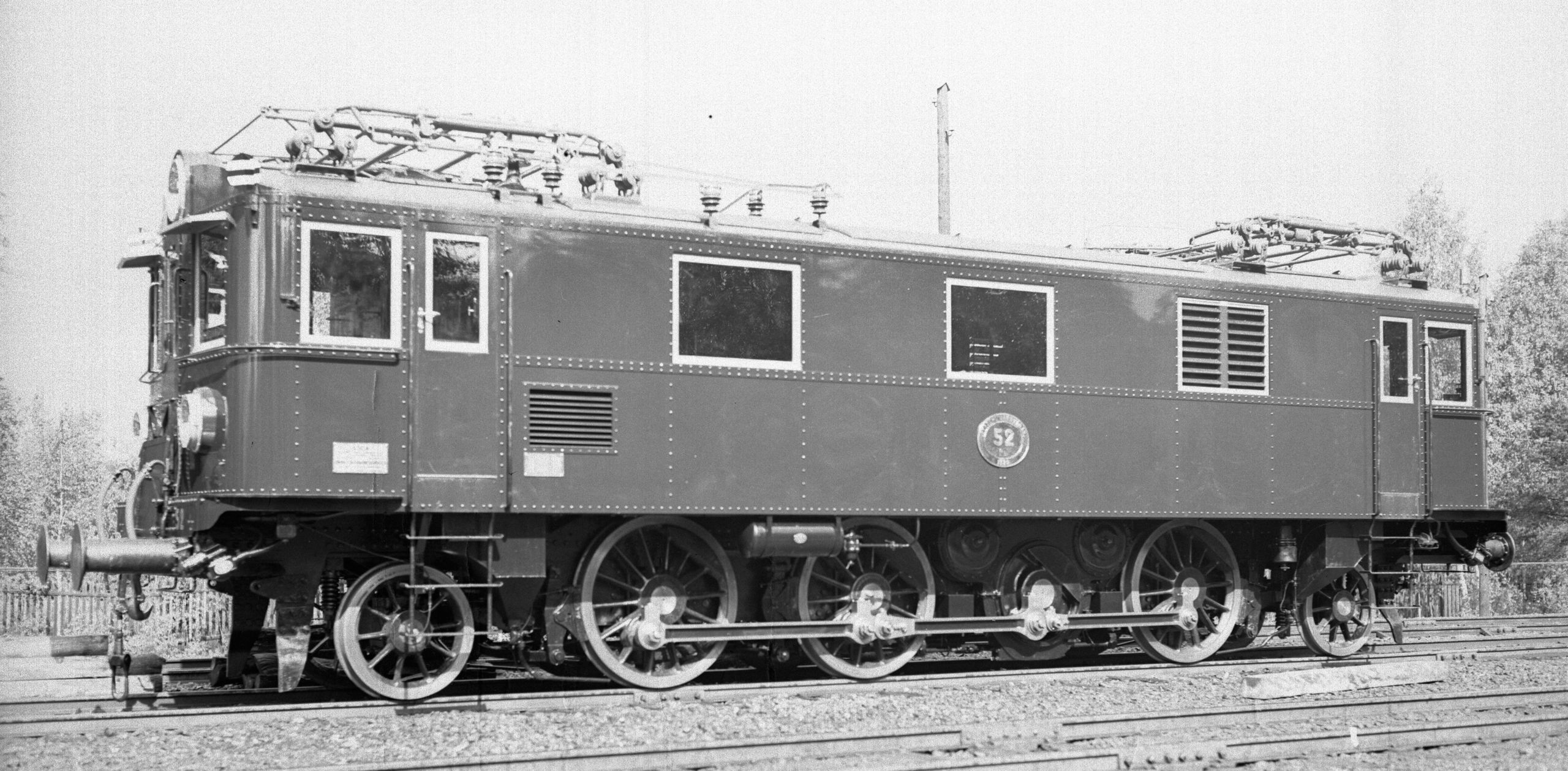

No. 52 after the rebuild
No. 52 after the rebuild
