Light and Field Railway Locomotives[Inhalt]
German Federal Railway Kdl 01
Germany | 1953
13 produced
Kdl 91-0001 in April 1984 in the Bremen shops
Kdl 91-0001 in April 1984 in the Bremen shops
Benedictus
Variantpre-productionproduction
General
Built1953-1958
ManufacturerSchöma
Axle configB
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length9 ft 6 3/16 in13 ft 1 1/2 in
Service weight11,023 lbs13,228 lbs
Adhesive weight11,023 lbs13,228 lbs
Axle load5,512 lbs6,614 lbs
Boiler
Variantpre-productionproduction
Power Plant
Power
Power sourcediesel-mechanic
Top speed12 mph
Engine output15 hp (11 kW)20 hp (15 kW)
Calculated Values
diesel locomotive
switcher
small locomotive
Deutz OMZ 122 R and F
Germany | 1932
176 produced

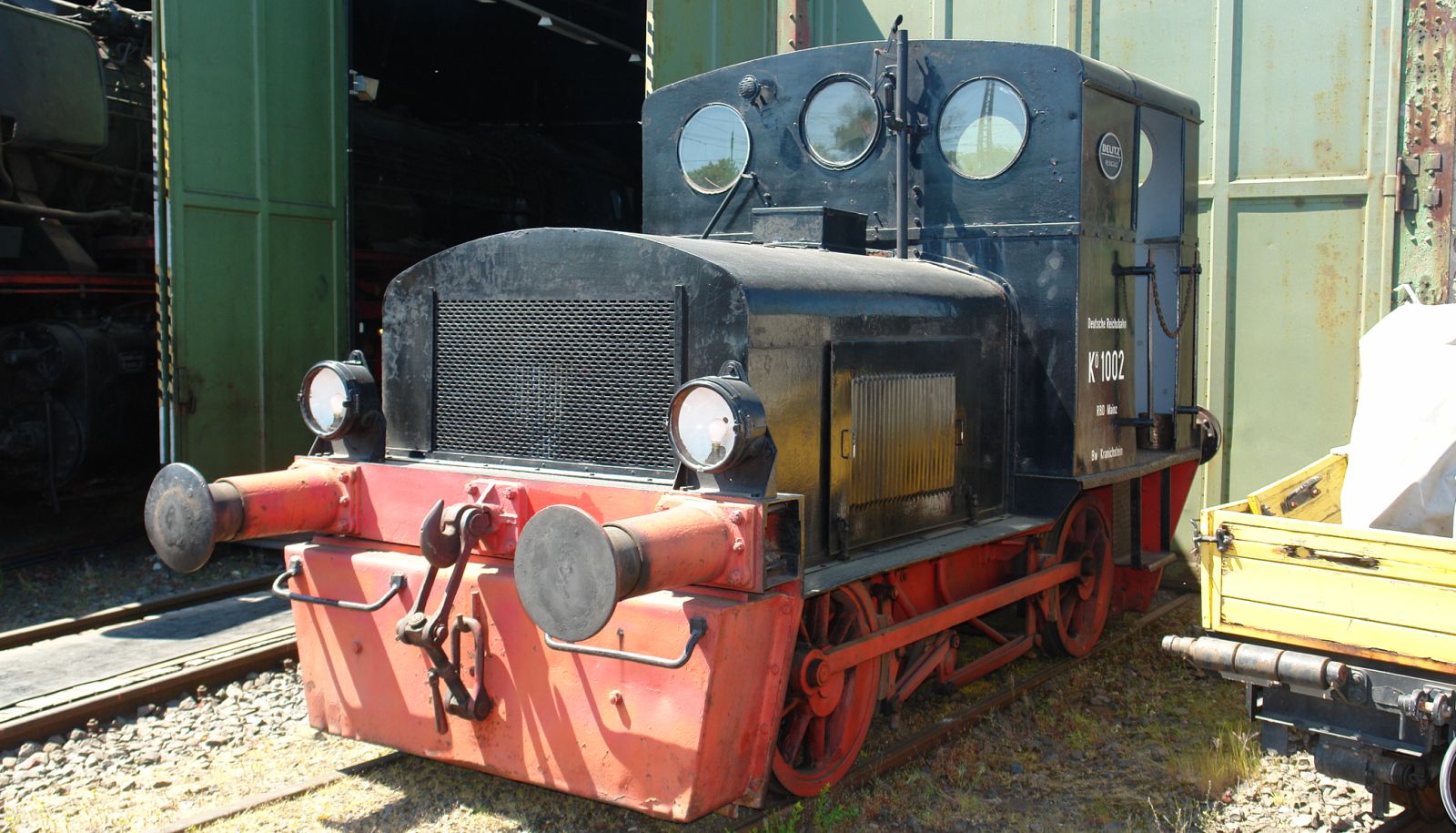

Kö 1002 of the Reichsbahn in the Darmstadt-Kranichstein Railway Museum
Kö 1002 of the Reichsbahn in the Darmstadt-Kranichstein Railway Museum
NearEMPTiness

The OM range by Deutz consisted of small diesel shunters for industrial railways built in the thirties and early forties. They were powered by two-stroke engines with one to four cylinders. Their development focused on simple construction and cheap maintenance. Most had two axles, where one was powered by a chain and the other was connected to the first one by coupling rods

The most numerous model was the OMZ 122 R with 176 produced, where the Z stood for two (zwei) cylinders. While the 1 denoted the first generation of the engine and 22 denoted the cylinder stroke in centimeters, R stood for standard gauge (Regelspur). There were also narrow gauge variants like the OMZ 122 F that was developed for field railways and had a gauge of 600 mm. It only had half the weight of the standard gauge variant and a somewhat lower power.

VariantOMZ 122 ROMZ 122 F
General
Built1932-1942
ManufacturerDeutz
Axle configB
Gauge4 ft 8 1/2 in (Standard gauge)1 ft 11 5/8 in
Dimensions and Weights
Length17 ft 9 3/8 in12 ft 5 5/8 in
Wheelbase8 ft 2 7/16 in3 ft 9 1/4 in
Rigid wheelbase8 ft 2 7/16 in3 ft 9 1/4 in
Service weight35,274 lbs17,196 lbs
Adhesive weight35,274 lbs17,196 lbs
Axle load17,637 lbs8,598 lbs
Boiler
VariantOMZ 122 ROMZ 122 F
Power Plant
Power
Power sourcediesel-mechanic
Top speed8 mph11 mph
EngineDeutz OMZ 122
Engine type2-cyl. diesel
Engine output42 hp (31 kW)35 hp (26 kW)
Calculated Values
diesel locomotive
small locomotive
switcher
last changed: 04/2024
Polish State Railways SM02 (Fablok Ls40)
Poland | 1952
581 produced
Ls40 No. 4606 in the museum in Jaworzyna Slaska
Ls40 No. 4606 in the museum in Jaworzyna Slaska
Flyz1

The SM02 was the first diesel locomotive built in Poland. From 1952, 581 of these small shunting locomotives were manufactured in the Feliks Dzierzynski locomotive factory (later Fablok) in Chrzanów and sold by the manufacturer as the Ls40 type. The Polish State Railways only procured twelve examples, which were classified there as the SM02 series. With a maximum speed of 11 km/h, a range of 60 km and an output of 44 hp, they could not be used in larger train stations, which is why they were mainly used in industrial companies. The power was transmitted mechanically to one of the axles, which drove the second axle by means of coupling rods. Over time, many of the locomotives got a new type S324HL engine, which delivered either 60 or 75 hp. Many engines were still in use up until the 1990s, but most of them became superfluous due to the abandonment or dismantling of many industrial tracks. A few are still in use today, others are preserved either as a memorial or in the museum.

Variantas builtrebuilt
General
Built1952-1961
ManufacturerChrzanów
Axle configB
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length19 ft 8 1/4 in
Wheelbase11 ft 5 13/16 in
Rigid wheelbase11 ft 5 13/16 in
Service weight35,274 lbs
Adhesive weight35,274 lbs
Axle load17,637 lbs
Boiler
Variantas builtrebuilt
Power Plant
Power
Power sourcediesel-mechanic
Top speed7 mph
Starting effort1,124 lbf
EngineS64LS324HL
Engine type4-cyl. diesel
Fuel32 us gal (diesel)
Engine output43 hp (32 kW)74 hp (55 kW)
Calculated Values
diesel locomotive
switcher
last changed: 03/2022
