Austrian Federal Railways class 2045
go back
Austria | 1952
20 produced

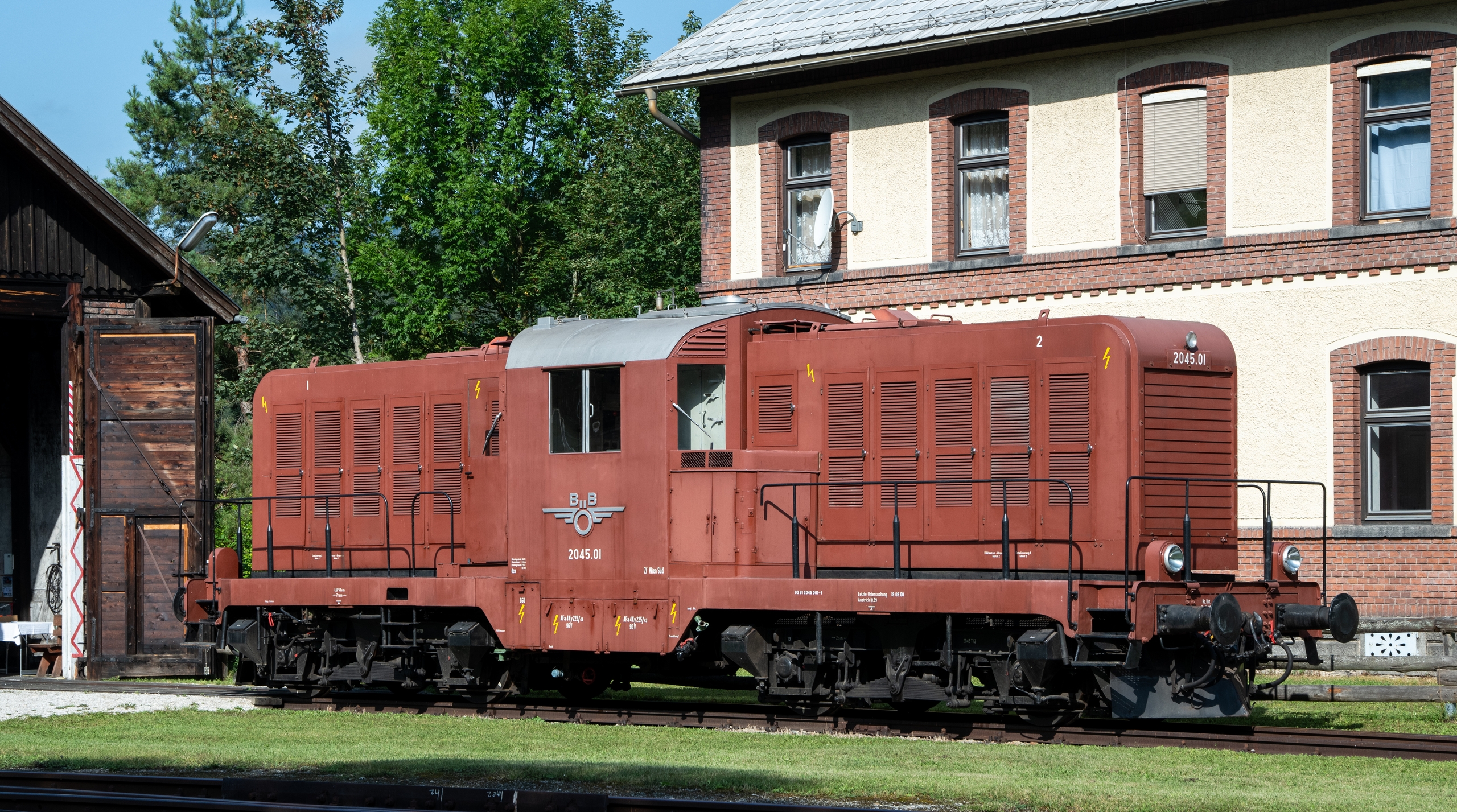

2045 001 in August 2018 at St. Aegyd am Neuwalde
2045 001 in August 2018 at St. Aegyd am Neuwalde
Linie29

The class 2045 was the first mainline diesel locomotive built in Austria. It was designed after the Second World War to resolve the severe locomotive shortage and was a step to move away from steam traction. As the ÖBB now concentrated on electric traction, this diesel locomotive for use on non-electrified lines also got electric power transmission.

It was inspired by American designs, but used as much Austrian components as possible. The locomotive was characterized by a load bearing frame that carried a central cab and two hoods. In each hood there was a 500 hp SGP diesel engine with a generator rated at 302 kW or 411 hp. Each bogie had two 140 kW traction motors which were coupled to the axles via a BBC quill drive

Simmering-Graz-Pauker built a total of 20 between 1952 and 1955. As they were intended for both passenger and freight traffic, they had an oil-fired steam generator in the cab. After heavier locomotives had taken over traffic on mainlines, the 2045 was used on branch lines, still both in passenger and freight traffic. The last one was withdrawn in 1993. Seven have been preserved at several locations.

General
Built1952-1955
ManufacturerSGP
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length48 ft 6 11/16 in
Wheelbase34 ft 9 5/16 in
Service weight154,323 lbs
Adhesive weight154,323 lbs
Axle load38,581 lbs
Boiler
Power Plant
Power
Power sourcediesel-electric
Top speed56 mph
Starting effort44,962 lbf
EngineSGP S12a
Engine type2x V12 diesel
Engine output986 hp (735 kW)
Calculated Values
diesel locomotive
freight
passenger
