Railcars and Multiple Units from the Soviet Union, Russia and the CIS States[Inhalt]
Soviet Railways series С (1929)
Soviet Union | 1929
959 produced

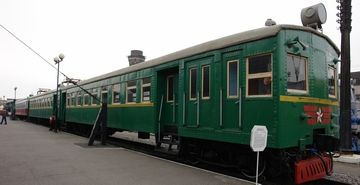

C<sup>M</sup>027 in the Russian Railway Museum in Saint Petersburg
CM027 in the Russian Railway Museum in Saint Petersburg
George Shuklin

From 1929 onwards, the Russian Northern Railway (Severnaya Zheleznaya Doroga) had multiple units manufactured for suburban traffic, which got the designation С (S). This letter stood for the railway administration mentioned. The sets normally consisted of three cars, each of which had a motor car at one end, a trailer in the middle and either a control car or another trailer at the other end.

The oldest vehicles had received electrical equipment from Metropolitan-Vickers until they switched to domestic equipment. Initially, operation only took place under 1,500 volts direct current, but when the first lines were converted to 3,000 volts, vehicles were built that could operate under both voltages. This was achieved by connecting the traction motors in series or parallel. After most of the lines had been converted, the last series were only designed for 3,000 volts.

Until 1958, a total of almost 1,000 three-car sets had been created. The vehicles, which were only built to operate under 1,500 volts, were subsequently converted to 3,000 volts. Some motor cars were used individually as locomotives and pulled cars with a total weight of up to 300 tonnes. In the 1960s, two sets were converted into battery-powered vehicles that could be recharged while running under the overhead line and were used in the Baltics. Most were retired in the 1980s, but some were in use in Yaroslavl until 1997.

VariantCДCPCP3
General
Built1929-1958
ManufacturerMytischtschi, Dynamo Moskau, Riga
Axle configB-B+2-2+2-2
Gauge4 ft 11 13/16 in (Russian broad gauge)
Dimensions and Weights
Length193 ft 11 15/16 in
Empty weight297,403 lbs307,544 lbs306,442 lbs
Axle load32,628 lbs33,951 lbs34,172 lbs
Boiler
VariantCДCPCP3
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V3,000 V, 1,500 V3,000 V
Hourly power892 hp (665 kW)912 hp (680 kW)
Top speed53 mph
Calculated Values
EMU
suburban
last changed: 09/2023
Soviet Railways series ЭР1, ЭР2 and ЭР9
Soviet Union | 1957
1,757 produced

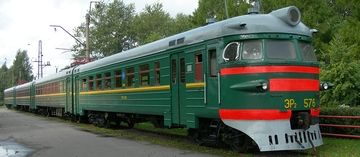

Four-car train parked in Saint Petersburg in 2017
Four-car train parked in Saint Petersburg in 2017
Lexeych

The series ЭР1, ЭР2 and ЭР9 (ER1, ER2 and ER9) denote electric multiple units for suburban traffic, of which over 10,000 cars were manufactured and which came to a total of almost 40 years of production. The design was based on a type of three-car multiple units for 3,000 volts direct current, which were built from 1949. In order to increase the capacity to meet the requirements, the concept of two-car train parts was developed. These each consisted of a control car and a motor car or a trailer and a motor car, so that in all possible combinations every second car always had a pantograph and power on all four axles. These had the center buffer couplers common in the Soviet Union, so they could be coupled and uncoupled quickly. The trains were mainly used as ten-car trains, but four-, six- and eight-car combinations were also possible.

From 1957, initially the vehicles of the ЭР1 type were built, the doors of which were only suitable for the high platforms of the well-developed urban suburban railways. The passenger compartment was designed as one large room and had six seats per row with an aisle. The ЭР2 introduced more modern technical equipment with initially the same optics and the entrance areas were now equally suitable for high and low platforms. About 9,200 cars of this model were built in Riga and Tver from 1962 to 1984 and distributed throughout the Soviet Union. Later examples received redesigned driver's cabs with angular cladding. The power selector of the ЭР1 and ЭР2 work as usual with DC railcars with series-parallel circuits and resistors. The ЭР9 was the variant for 25 kV alternating current, which was otherwise similar in structure to the ЭР2 and was controlled by a tap changer.

The production of these vehicles ended in 1995 after more than 4,000 cars of the ЭР9 series. In 2001 and 2003, a ten-car train each followed in Kyiv, which were assembled from existing assemblies. During the construction period, the interior furnishings in particular were modernized. For example, the wooden benches were replaced with upholstered seats and the materials and lighting in the interior were updated. New technologies were tested with individual vehicles, for example in the area of control electronics. Vehicles with batteries were also built, which could also be used on non-electrified sections. Existing vehicles were also modernized over time and some were fitted with completely redesigned car bodies. The oldest vehicles, if they were in the appropriate condition, were taken out of service in the 1980s, and some were converted into two-car service vehicles. By 2010, the majority had already been retired, but some were still in use in Latvia, for example.

VariantЭР1ЭР2ЭР9
General
Built1957-19621962-19841962-2002
ManufacturerRigaRiga, Twer
Axle config2-2+B-B+2-2+B-B+2-2+B-B+2-2+B-B+B-B+2-2
Gauge4 ft 11 13/16 in (Russian broad gauge)
Seats10501040-1110
Dimensions and Weights
Length662 ft 1 1/4 in
Wheelbase52 ft 2 in
Rigid wheelbase8 ft 6 3/8 in
Empty weight992,520 lbs1,035,510 lbs1,069,241 lbs
Adhesive weight578,713 lbs601,861 lbs652,568 lbs
Axle load28,991 lbs30,203 lbs32,628 lbs
Boiler
VariantЭР1ЭР2ЭР9
Power Plant
Power
Power sourceelectric - DCelectric - AC
Electric system3,000 V25,000 V 50 Hz
Hourly power5,364 hp (4,000 kW)
Top speed81 mph
Calculated Values
EMU
suburban
local
last changed: 01/2022
Soviet Railways Series Д
Soviet Union | 1960
89 produced

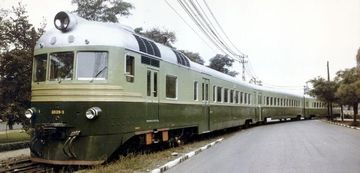

Д029 multiple unit shortly before its delivery in 1962 at Ganz
Д029 multiple unit shortly before its delivery in 1962 at Ganz
A. Siig

After the Second World War, the SŽD needed diesel multiple units for the non-electrified routes for the traction conversion from steam to electric and diesel. Since there was no experience in this area at the time, eight three-car diesel multiple units of the “Hargita” type for long-distance traffic had already been procured from Ganz-MÁVAG in Budapest in 1949. This series ДП (DP) was almost identical to the trains used in the GDR as VT 1214 and to the M 495.0 in Czechoslovakia.

From 1960, the Д (D) type railcars were procured from the same manufacturer for use in suburban traffic. In terms of the basic technical structure, they were largely the same as these, but each had an engine output increased by 50 hp and the top speed was increased from 105 to 120 km/h. Otherwise, it remained the case that a train consisted of two powered end cars and one trailer. The end cars each had a machine room behind the driver's cab, under which was a three-axle bogie with two driven axles. Power was transmitted through a five-speed mechanical gearbox. Inside, the new trains differed from the old ones primarily by the omission of the dining car compartment and a larger passenger capacity.

A total of 89 trains were purchased by 1964, which were concentrated on the Baltic States and today's Ukraine. In operation, the mechanical transmissions in particular often caused problems, which were also considered loud and had to be shifted manually by the driver with use of the clutch. That is why the Д1 (D1) type multiple units, which had hydromechanical power transmission, were introduced in their original areas of application as early as 1964. The trains of the Д series were distributed to other locations. However, retirement of the oldest vehicles did not begin until around 1980 and by 1987 all had disappeared from active service. From the time after that there are photos of converted service vehicles, which only consist of an end car with a second driver's cab.

General
Built1960-1964
ManufacturerGanz-MÁVAG
Axle configA1A-2+2-2+2-A1A
Gauge4 ft 11 13/16 in (Russian broad gauge)
Seats282
Dimensions and Weights
Length251 ft 4 9/16 in
Rigid wheelbase13 ft 8 3/16 in
Service weight407,855 lbs
Adhesive weight141,096 lbs
Axle load35,274 lbs
Boiler
Power Plant
Power
Power sourcediesel-mechanic
Top speed75 mph
EngineGanz-Jendrassik 12 JV 17/24
Engine type2x V12 diesel
Engine output987 hp (736 kW)
Calculated Values
DMU
suburban
local
last changed: 01/2022
Soviet Railways series Д1
Soviet Union | 1964
605 produced

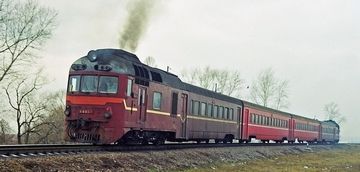

Д1-685 in the year 2005
Д1-685 in the year 2005

Due to inadequacies of the manually operated, mechanical transmission of the D-series DMUs and the required higher passenger capacity, new four-part multiple units were ordered from 1964. These were initially also given the series designation Д (D) and only after 98 units were manufactured were they re-designated Д1 (D1) to distinguish them.

Externally, the most noticeable difference was the second trailer on the new multiple units. If required, operation with three or four trailers or in multiple working was also possible. Each end car was powered by a diesel engine, which was a direct development of the engines from the older vehicles and, thanks to the added turbocharger and intercooler, produced 730 hp. The hydromechanical power transmission had three gears. While first gear transmitted power through a torque converter, the other two gears were mechanical. Since these gearboxes were now shifted automatically, this meant that the work of the driver was made easier. A total of 605 units were built up to 1988. New powered bogies were introduced during production, with the outer axle now being the carring axle rather than the middle one.

They were used on non-electrified suburban lines throughout the European part of Russia. In the earlier trainsets, technical problems in the drive train became apparent over time, so that the vehicles used in Russia got new hydraulic transmissions between 1995 and 2002 from the DMUs of the ДР1А (DR1A) series and new engines. Many vehicles remained in other countries after the collapse of the Soviet Union. In the Baltic States, they were already phased out shortly after the turn of the millennium. In Moldova, a comprehensive modernization of the interior and powertrain took place from 2012, during which the vehicles were given a modern, streamlined head shape.

Variantoriginal variantbogies changed
General
Built1964-1988
ManufacturerGanz-MÁVAG
Axle configA1A-2+2-2+2-2+2-A1A 1B-2+2-2+2-2+2-B1
Gauge4 ft 11 13/16 in (Russian broad gauge)
Seats400
Dimensions and Weights
Length325 ft 0 13/16 in
Rigid wheelbase13 ft 8 3/16 in14 ft 9 3/16 in
Empty weight462,970 lbs
Service weight604,066 lbs
Axle load37,479 lbs
Boiler
Variantoriginal variantbogies changed
Power Plant
Power
Power sourcediesel-hydromechanic
Top speed78 mph
EngineGanz-Jendrassik 12 VFE 17/24
Engine type2x V12 diesel
Engine output1,440 hp (1,074 kW)
Calculated Values
DMU
suburban
local
last changed: 01/2022
Soviet Railways series АЧ2
Soviet Union | 1983
122 produced
АЧ2-096 with a second motor car and two trailers in June 2011 at Dmitriev-Lgovsky
АЧ2-096 with a second motor car and two trailers in June 2011 at Dmitriev-Lgovsky
6yxouPUSCHKIN
General
Built1983, 1988-1990
ManufacturerVagonka Tatra Studénka
Axle configB-2
Gauge4 ft 11 13/16 in (Russian broad gauge)
Seats70
Dimensions and Weights
Length82 ft 0 1/4 in
Wheelbase64 ft 7 9/16 in
Rigid wheelbase8 ft 2 7/16 in
Empty weight130,073 lbs
Boiler
Power Plant
Power
Power sourcediesel-hydraulic
Top speed75 mph
EngineM 756 B
Engine typeV12 diesel
Engine output986 hp (735 kW)
Calculated Values
DMU
suburban
local
Soviet Railways series ТУ8П
Russia | 1988
115 produced
ТУ8П-0005 in April 2015 on the Apsheronsk narrow-gauge railway
ТУ8П-0005 in April 2015 on the Apsheronsk narrow-gauge railway
Alexander Novikov
General
Built1988-1997
ManufacturerKambarka
Axle configB-B
Gauge2 ft 5 1/2 in, 3 ft 6 in (Cape gauge), 4 ft 11 13/16 in (Russian broad gauge)
Seats17
Dimensions and Weights
Length31 ft 11 1/16 in
Wheelbase21 ft 7 13/16 in
Rigid wheelbase4 ft 7 1/8 in
Service weight35,274 lbs
Adhesive weight35,274 lbs
Axle load8,818 lbs
Boiler
Power Plant
Power
Power sourcediesel-mechanic
Top speed31 mph
EngineJaMS-236?
Engine typeV6 diesel
Engine output177 hp (132 kW)
Calculated Values
drainsine
work train
narrow gauge
Russian Railways series ЭД4
Russia | 1996
475 produced
ЭД4-0451 with a modern front design in August 2014 on the Kaluga-Moscow line
ЭД4-0451 with a modern front design in August 2014 on the Kaluga-Moscow line
Andrei1967
VariantЭД4MЭД4M-500
General
Built1996-20112011-2016
ManufacturerDemichowo
Axle config2-2+B-B+2-2+B-B+2-2+B-B+2-2+B-B+B-B+2-2 2-2+B-B+2-2+B-B+2-2+B-B+2-2+B-B+2-2+B-B+2-2
Gauge4 ft 11 13/16 in (Russian broad gauge)
Seats10881048
Dimensions and Weights
Length723 ft 11 13/16 in796 ft 3 1/8 in
Empty weight1,139,789 lbs1,231,280 lbs
Adhesive weight666,898 lbs
Axle load33,400 lbs
Boiler
VariantЭД4MЭД4M-500
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V
Hourly power6,303 hp (4,700 kW)6,705 hp (5,000 kW)
Top speed81 mph
Calculated Values
EMU
suburban
local
Russian Railways series ЭД9
Russia | 1995
329 produced
ЭД9-0024 in December 2005 in Moscow
ЭД9-0024 in December 2005 in Moscow
Mos.ru
General
Built1995-2016
ManufacturerDemichowo
Axle config2-2+B-B+B-B+2-2+B-B+2-2+B-B+B-B+2-2
Gauge4 ft 11 13/16 in (Russian broad gauge)
Seats940
Dimensions and Weights
Length651 ft 6 7/8 in
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Hourly power4,720 hp (3,520 kW)
Top speed81 mph
Calculated Values
EMU
suburban
local
Russian Railways series ЭТ2
Russia | 1993
147 produced

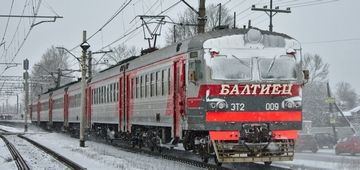

ЭТ2-009 “Baltiyets” at the Warsaw Railway Station in Gatchina
ЭТ2-009 “Baltiyets” at the Warsaw Railway Station in Gatchina
Neu-Zwei

After the outdated suburban EMUs of the ЭТ1 and ЭТ2 series for the DC network, the ЭТ2 (ET2) series was built in the Torshok wagon factory from 1993. They have a similar structure and can be used in combinations of two, four, six, eight, ten and twelve cars. The propulsion is still carried out with direct current motors. After 30 sets of the basic version, a total of 116 sets of the modernized ЭТ2M were built from 1999. These had improvements in many areas, which differed depending on the year of construction. The innovations included new plastic seats, LED lighting inside and outside and more modern driver's cabs. These vehicles can also carry additional trailers, even though mostly ten-car sets are still used.

A special model was the six-car ЭТ2Л from 1999, where the Cyrillic “L” stood for “luxury”. This train had a more comfortable interior, some of which was also used on the ЭТ2M. Another one-off was the Э2A, which was intended to test the use of three-phase motors in the DC network. These offer better performance characteristics regardless of speed and significantly lower power consumption. The train also received more modern technology in other areas, such as computer-controlled traction control. Multiple working was not only possible with vehicles of the ЭТ2 series, but also with the old ЭТ2.

General
Built1993-2010
ManufacturerTorschok
Axle config2-2+B-B+2-2+B-B+2-2+B-B+2-2+B-B+B-B+2-2
Gauge4 ft 11 13/16 in (Russian broad gauge)
Seats970
Dimensions and Weights
Length66 ft 1 9/16 in
Rigid wheelbase8 ft 6 3/8 in
Service weight1,172,417 lbs
Adhesive weight661,386 lbs
Axle load33,069 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V
Hourly power6,303 hp (4,700 kW)
Top speed81 mph
Calculated Values
EMU
suburban
local
last changed: 01/2022
Siemens Mobility Desiro MainLine (Russland)
Russian Railways series ЭС1 and ЭС2Г “Lastotchka”
Russia | 2011
more than 289 produced
ЭС2ГП (ES2GP) in September 2019 at Likhobory station on the Moscow Metro ring line
ЭС2ГП (ES2GP) in September 2019 at Likhobory station on the Moscow Metro ring line
Ekimov Aleksei

Starting in 2011, Siemens built the first 54 trains of the Russian variant of the Desiro MainLine in Germany. They got the designation ЭС1 (ES1) and were nicknamed “Lastochka” (“Swallow”). To ensure the operation on most electrified Russian lines, they are equipped for both 25.000 V AC and 3.000 V DC. With -40 to +40°C, the temperature range in which the trains can operate is also wider than in the other Desiro variants. The sets are composed of five to ten cars and deliver a power of 2,550 kW in the shortest variant, at a maximum speed of 1.600 km/h.

Their introduction into service was in January 2013 in the St. Petersburg commuter network and they were also used during the 2014 Winter Olympics at Sochi. A second variant that was being built by Sinara in Russia is the ЭС2Г (ES2G) that is only equipped for operation under DC. Now these trains are operated in the northwest and south of Russia, around Moscow and in the Urals. After the start of the Ukraine War in 2022, Siemens ceased all operations in Russia and production was cancelled. Since 2024, Sinara is producing the ЭС104 (ES104) on the technical basis of the Desiro and with a changed exterior design, but without a license.

VariantЭС1 five-carЭС1 seven-carЭС2Г Zehnteiler
General
Builtsince 2011
ManufacturerSiemens, Sinara
Axle configB-B+2-2+2-2+2-2+B-B B-B+2-2+2-2+2-2+B-B+2-2+B-B B-B+2-2+2-2+2-2+B-B+B-B+2-2+2-2+2-2+B-B
Gauge4 ft 11 13/16 in (Russian broad gauge)
Seats443
Dimensions and Weights
Length414 ft 10 13/16 in577 ft 7 9/16 in821 ft 8 11/16 in
Empty weight573,642 lbs
Boiler
VariantЭС1 five-carЭС1 seven-carЭС2Г Zehnteiler
Power Plant
Power
Power sourceelectric - AC/DCelectric - DC
Electric system25,000 V 50 Hz, 3,000 V3,000 V
Hourly power3,420 hp (2,550 kW)5,898 hp (4,398 kW)7,864 hp (5,864 kW)
Top speed99 mph87 mph
Calculated Values
EMU
multi-system
local
regional
Siemens Desiro
last changed: 09/2024
