Camelback steam locomotives
Wootten firebox for burning anthracite fragments
go back
The class L1 of the Erie was the largest Camelback locomotive
The class L1 of the Erie was the largest Camelback locomotive

Anthracite is considered the highest quality coal of all. It contains hardly any volatile components and a very high proportion of carbon. For this reason, it not only has a high calorific value and burns for a very long time, but also burns almost without smoke and leaves hardly any ash and slag. For these reasons, it has long been used as domestic fuel.

Traditionally, steam locomotives use softer types of coal that burn faster. In Pennsylvania, however, large quantities of anthracite were mined and fragments (culm) were left over as waste, which could hardly be used industrially. A very large grate area was required to burn these fragments in a steam locomotive. Since an excessively long grate was very difficult to load with coal by hand, a very wide firebox had to be used instead. John E. Wootten then developed the firebox named after him, which, with its great width, allowed a large, thin layer of anthracite to be slowly burned off.

Since the cab was usually located behind the firebox, the forward view of the track was restricted. The solution was a cab that was on top of the boiler like a saddle in front of the firebox. The engineer now had a clear view of the track, while the fireman continued to stand on a covered platform at the back of the boiler. Communication between the two was now only possible by means of whistle signals.

Despite the disadvantages, more and more of these Camelback steam locomotives appeared in the vicinity of the anthracite mining areas in Pennsylvania in the 1890s, since the anthracite fragments could be obtained very cheaply. These ranged from small switchers to passenger locomotives to the Erie Railroad's L-1 class eight-axle Mallet. In the field of passenger transport, some railroads used the clean and smoke-free combustion of anthracite coal in their advertising campaigns to raise public awareness.

Around 1910, mechanical stokers, which could distribute the coal evenly over a long grate, became popular in the USA. At the same time, more and more locomotives with trailing axles were being developed, in which long fireboxes that were no longer quite as wide could easily be implemented. Another factor that hastened the Camelback's demise was safety concerns over the cab's location above the connecting and coupling rods. It was feared that in the event of a defect, loose steel parts would pose a danger to the life of the engineer. Thus, the production of this type of locomotive ended within a few years. Since many Camelbacks were rebuilt into conventional locomotives, only five known representatives of this type exist today.

The Philadelphia & Reading class A-4 was a small 0-4-0 camelback switcher.
The Philadelphia & Reading class A-4 was a small 0-4-0 camelback switcher.

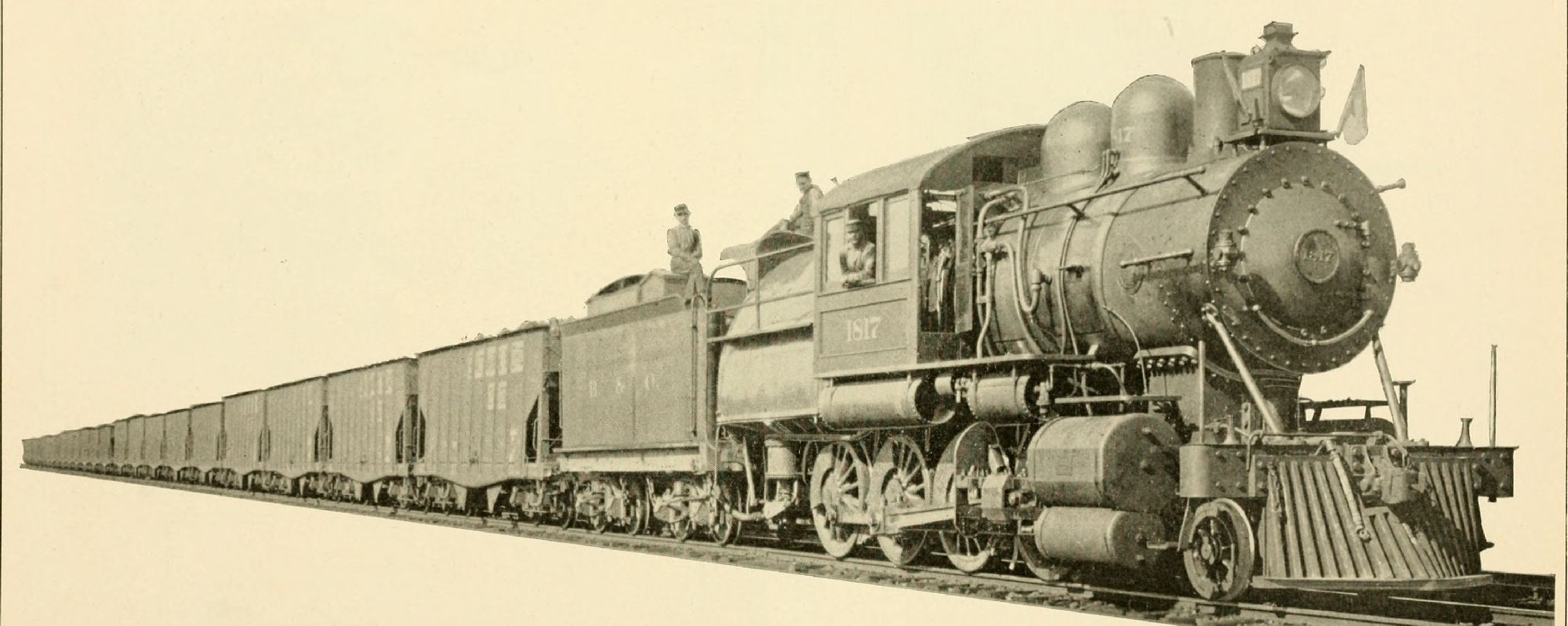

Baltimore & Ohio class E19a with a coal train
Baltimore & Ohio class E19a with a coal train
Baltimore & Ohio
Canadian Pacific class D10
go back
Canada | 1905
507 produced
D10g No. 1074 in Magog, Quebec
D10g No. 1074 in Magog, Quebec

The class D10 referred to a series of ten-wheelers of the Canadian Pacific, which, with a total number of 507, were widely used throughout Canada. They were simple in construction and easy to maintain, but had a larger boiler than ten-wheelers of the 19th century and a superheater. The first locomotives were built as camelbacks, but were rebuilt after about two years. Unlike most locomotives in Canada, they did not have a completely enclosed cab.

There were the subclasses D10a to D10k, which also showed differences within a subclass. Basically they all used the same firebox, but different numbers of tubes and different superheaters. The driver diameter was 63 inches and the stroke of the cylinders was always 28 inches. For cylinder diameter and boiler pressure, either the combination of 22.5 inches and 180 psi or smaller cylinders with 21 inches and a boiler pressure increased to 200 psi were used. By installing arch tubes in the firebox, its heating surface later increased. The retirements took place between 1938 and 1965.

VariantD10a, b, cD10dD10e, fD10g, h, j
General
Built1905-1913
ManufacturerCanadian Locomotive Co., Montreal, CPR, ALCO
Wheel arr.4-6-0 (Ten-wheeler)
Dimensions and Weights
Wheelbase26 ft 1 in
Rigid wheelbase14 ft 10 in
Total wheelbase56 ft 4 in
Service weight190,000 lbs205,000 lbs
Adhesive weight141,000 lbs156,000 lbs
Total weight317,000 lbs354,000 lbs
Axle load47,000 lbs52,000 lbs
Water capacity24,000 us gal
Fuel capacitycoal6,000 lbs (coal)
Boiler
Grate area49 sq ft
Firebox area180 sq ft209 sq ft
Tube heating area2,233 sq ft2,209 sq ft2,100 sq ft2,022 sq ft
Evaporative heating area2,413 sq ft2,418 sq ft2,309 sq ft2,231 sq ft
Superheater area374 sq ft408 sq ft472 sq ft488 sq ft
Total heating area2,787 sq ft2,826 sq ft2,781 sq ft2,719 sq ft
VariantD10a, b, cD10dD10e, fD10g, h, j
Power Plant
Driver diameter63 in
Boiler pressure200 psi180 psi200 psi
Expansion typesimple
Cylinderstwo, 21 x 28 intwo, 22 1/2 x 28 intwo, 21 x 28 in
Power
Power sourcesteam
Estimated power1,700 hp (1,268 kW)1,650 hp (1,230 kW)1,700 hp (1,268 kW)1,750 hp (1,305 kW)
Top speed65 mph
Starting effort33,320 lbf34,425 lbf33,320 lbf
Calculated Values
steam locomotive
freight
camelback
last changed: 11/2023
No. 784 in its original form as Camelback
No. 784 in its original form as Camelback
Railway and Locomotive Engineering, January 1906
Central RR of New Jersey class E-1
go back
United States | 1912
25 produced
Image of locomotive
flickr/stratfordman72

The class E-1 consisted of 25 0-8-0 Camelback switchers built by ALCO-Schenectady between 1912 and 1918. For burning fine anthracite, they had a large grate of 91.6 square feet. The Wootten firebox had a surface of 202 square feet, with additional 18 square feet in a combustion chamber. They were also designated 8S53 due to their eight wheels and 53,000 pounds of tractive effort. The superheated class E-2s had the same designation. The E-1 was retired between 1948 and 1954.

General
Built1912-1918
ManufacturerALCO
Wheel arr.0-8-0 (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase15 ft 3 in
Rigid wheelbase15 ft 3 in
Total wheelbase49 ft 10 1/8 in
Service weight230,000 lbs
Adhesive weight230,000 lbs
Total weight375,000 lbs
Axle load57,500 lbs
Water capacity7,500 us gal
Fuel capacity24,000 lbs (coal)
Boiler
Grate area91.6 sq ft
Firebox area220 sq ft
Tube heating area3,132 sq ft
Evaporative heating area3,352 sq ft
Total heating area3,352 sq ft
Power Plant
Driver diameter56 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 24 x 30 in
Power
Power sourcesteam
Estimated power1,650 hp (1,230 kW)
Starting effort52,457 lbf
Calculated Values
steam locomotive
switcher
camelback
last changed: 09/2025
Central RR of New Jersey classes I-5 and I-6s
go back
United States | 1903
10 produced
Image of locomotive
Locomotive Magazine, July 1907

The ten class I-5 Consolidations were delivered by ALCO-Brooks in 1903. For burning anthracite culm they were given a Wootten firebox with an 82 square foot grate and Camelback design. In the 1920s, all were superheated, with one locomotive keeping the cylinder diameter of 20 inches and the remaining getting 21 inch diameter cylinders. The former were designated I-5s while the rest became I-6s. The tender capacity was increased by a ton by installing boards. The last four members of the class remained in service until 1947. So far there is only a short text for this vehicle. In the future it will be described in more detail.

VariantI-5rebuilt I-6s
General
Built1903
ManufacturerALCO
Wheel arr.2-8-0 (Consolidation)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase23 ft
Rigid wheelbase17 ft
Service weight208,000 lbs216,500 lbs
Adhesive weight186,000 lbs194,500 lbs
Total weight350,000 lbs358,300 lbs
Axle load46,500 lbs48,625 lbs
Water capacity7,000 us gal
Fuel capacity26,000 lbs (coal)28,000 lbs (coal)
Boiler
Grate area82 sq ft
Firebox area200 sq ft194.4 sq ft
Tube heating area2,972 sq ft2,011.6 sq ft
Evaporative heating area3,172 sq ft2,206 sq ft
Superheater area474 sq ft
Total heating area3,172 sq ft2,680 sq ft
VariantI-5rebuilt I-6s
Power Plant
Driver diameter55 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 20 x 32 intwo, 21 x 32 in
Power
Power sourcesteam
Estimated power1,450 hp (1,081 kW)1,500 hp (1,119 kW)
Starting effort39,564 lbf43,619 lbf
Calculated Values
steam locomotive
freight
camelback
last changed: 08/2023
Central RR of New Jersey classes L-6 to L-8
later classes T-38 and T-40
go back
United States | 1910
40 produced
No. 780 in November 1948 at Jersey City, New Jersey
No. 780 in November 1948 at Jersey City, New Jersey
collection Taylor Rush

After the classes L-3 to L-5, the ten L-6a built in 1910 were the next Camelback ten-wheelers for commuter service in the roster of the Central Railroad of New Jersey. They still had 69-inch drivers, but were somewhat heavier than their predecessors and had larger cylinders. With their massive Wootten firebox and no full cab behind it, they had a very compact appearance and looked relatively short.

In 1912, ten superheated L-7s followed with cylinders of 23 instead of 22 inches. Between 1928 and 1941, all L-6a were also rebuilt to the L-7s standard by adding a superheated boiler and larger cylinders. The L-7as was created by widening the grate and again a total of ten were built in 1913 and 1914. 1918 saw the introduction of the L-8s, of which again ten were built. These were very similar to the L-7as, but had a higher boiler pressure.

All of these had been built by Baldwin and they got consecutive numbers between 750 and 789. In the new class scheme, the L-7a and L-7as became class T-38, where the “T” stood for the 4-6-0 wheel arrangement (Ten-wheelers) and the 38 stood for a starting tractive effort of 38,000 pounds. In the same way, the L-8s became class T-40. All reached the end of steam, with their retirements only occurring between 1950 and 1954.

VariantL-6aL-7sL-7asL-8s
General
Built191019121913-19141918
ManufacturerBaldwin
Wheel arr.4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase24 ft 10 in24 ft 10 1/2 in25 ft 2 in25 ft 2 1/2 in
Rigid wheelbase13 ft 6 in
Total wheelbase52 ft 1 1/2 in56 ft 1 in56 ft 5 in
Service weight195,000 lbs225,100 lbs225,600 lbs
Adhesive weight150,000 lbs169,000 lbs170,900 lbs170,800 lbs
Total weight349,000 lbs372,100 lbs377,400 lbs
Axle load50,000 lbs56,400 lbs57,000 lbs
Water capacity7,000 us gal7,500 us gal7,600 us gal
Fuel capacity32,000 lbs (coal)24,000 lbs (coal)26,000 lbs (coal)
Boiler
Grate area81.6 sq ft91.4 sq ft
Firebox area199 sq ft209 sq ft215 sq ft211 sq ft
Tube heating area2,783 sq ft2,067 sq ft2,091 sq ft2,095 sq ft
Evaporative heating area2,982 sq ft2,276 sq ft2,306 sq ft
Superheater area474 sq ft477 sq ft
Total heating area2,982 sq ft2,750 sq ft2,783 sq ft
VariantL-6aL-7sL-7asL-8s
Power Plant
Driver diameter69 in
Boiler pressure210 psi200 psi220 psi
Expansion typesimple
Cylinderstwo, 22 x 28 intwo, 23 x 28 in
Power
Power sourcesteam
Estimated power1,500 hp (1,119 kW)1,550 hp (1,156 kW)1,600 hp (1,193 kW)1,800 hp (1,342 kW)
Starting effort35,058 lbf38,318 lbf36,493 lbf40,143 lbf
Calculated Values
steam locomotive
passenger
camelback
last changed: 07/2024
Delaware & Hudson class U-II
later class E-1a
go back
United States | 1898
10 produced
Image of locomotive
Railway and Locomotive Engineering, January 1899

The locomotives later grouped together in the class E-1 were a total of ten Camelback consolidations that the Delaware & Hudson procured in 1898 and 1899 for burning loose anthracite coal. Three were created by rebuilding a 4-4-0 and two 2-6-0. Seven others were newly built by Dickson and initially designated class U-II before becoming class E-1a.

The Wootten firebox already created a grate area of 80.3 square feet. In addition to the direct radiant area of 170 square feet, it contained a further 104 square feet in so-called “water bars”. One example of the class was built as a compound locomotive with comparatively large cylinders with a diameter of 23 and 34 inches. It was later simpled and scrapped along with its E-1 and E-1a class sisters between 1927 and 1928.

General
Built1898
ManufacturerDickson
Wheel arr.2-8-0 (Consolidation)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase23 ft 2 in
Rigid wheelbase16 ft 4 in
Total wheelbase51 ft
Service weight150,100 lbs
Adhesive weight134,500 lbs
Total weight234,600 lbs
Axle load33,625 lbs
Water capacity4,000 us gal
Fuel capacity14,000 lbs (coal)
Boiler
Grate area80.3 sq ft
Firebox area274 sq ft
Tube heating area1,712 sq ft
Evaporative heating area1,986 sq ft
Total heating area1,986 sq ft
Power Plant
Driver diameter56 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 20 x 26 in
Power
Power sourcesteam
Estimated power1,500 hp (1,119 kW)
Starting effort28,414 lbf
Calculated Values
steam locomotive
freight
camelback
last changed: 09/2022
Delaware, Lackawanna & Western classes G-2 to G-9
originally class 19C
go back
United States | 1901
65 produced
G-2 No. 975
G-2 No. 975
Railway and Locomotive Engineering, August 1901

For commuter trains, the Lackawanna needed a passenger locomotive that would combine the ability to burn culm, what means waste from anthracite mining, with the simplest possible maintenance and high tractive effort. It received a Wootten firebox, the grate of which was extraordinarily large in relation to the heating surface and, at 87,7 square feet, was probably one of the largest ever on a 4-4-0. This required a two-part Camelback cab. In order to achieve the required traction, the cylinders were dimensioned sufficiently and at the same time a moderately large driving wheel diameter was selected. The construction of the locomotive itself was kept as simple as possible.

Initially they were classified in the class 19C, but soon received new class designations with “G” for the 4-4-0 wheel arrangement. The first three batches consisted of a total of 27 locomotives and were delivered by ALCO-Schenectady between 1901 and 1903. Although they were almost identical in construction, they received the class designations G-2, G-3 and G-4. All other production lots differed in details and became the G-5 to G-9. Of these, 15 were initially delivered by Baldwin in 1904 before ALCO-Schenectady delivered 12 more in 1905 and finally the last 11 in 1910 and 1911.

Two examples of the class G-6 were equipped with superheaters of Cole type ex works and formed the class G-7. Since the lubrication was not easy to implement with this, this type of superheater was soon removed again. Between 1916 and 1921 many of the locomotives were again fitted with a superheater, but this time a Schmidt type. There were again slight differences in these conversions, which was reflected in the addition of an “a” or “b” after the class names. A single locomotive was given cylinders with a diameter of 21 instead of 20 inches, which earned it the different designation G-10b.

Even the saturated version developed a high power compared to other locomotives with the 4-4-0 wheel arrangement and could haul trains with six cars at an average of 40 mph on the existing mountain lines. Nevertheless, they later had to be used for suburban trains, since their tractive power soon no longer met the increased requirements. Ten locomotives were converted to conventional cabs in the 1920s and thus survived somewhat longer than their non-converted sisters. Most were retired just before World War II.

Variantas builtrebuilt G2a to G-6a
General
Built1901-19111916-1921
ManufacturerALCO, Baldwin
Wheel arr.4-4-0 (American)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase24 ft 5 in
Rigid wheelbase8 ft 6 in
Total wheelbase51 ft 5 in
Service weight151,200 lbs159,200 lbs
Adhesive weight100,000 lbs106,400 lbs
Total weight271,200 lbs275,100 lbs
Axle load50,000 lbs53,200 lbs
Water capacity5,000 us gal
Fuel capacity20,000 lbs (coal)
Boiler
Grate area87.7 sq ft
Firebox area192 sq ft165 sq ft
Tube heating area1,950 sq ft1,426 sq ft
Evaporative heating area2,142 sq ft1,591 sq ft
Superheater area340 sq ft
Total heating area2,142 sq ft1,931 sq ft
Variantas builtrebuilt G2a to G-6a
Power Plant
Driver diameter69 in
Boiler pressure185 psi
Expansion typesimple
Cylinderstwo, 20 x 26 in
Power
Power sourcesteam
Estimated power1,500 hp (1,119 kW)
Starting effort23,701 lbf
Calculated Values
steam locomotive
passenger
camelback
last changed: 10/2022
No. 440 probably in the thirties
No. 440 probably in the thirties
collection Raymond Storey
Delaware, Lackawanna & Western Colburn's Wide Firebox Engine
go back
United States | 1855
6 produced
No. 17 “Lehigh”
No. 17 “Lehigh”

As the DL&W hauled anthracite coal, Zerah Colburn tried to design a locomotive that could also use this as fuel. The slow combustion of this hard type of coal required a large, i.e. wide grate. To keep the center of gravity low, he positioned the grate behind the rear drivers and designed a long firebox with a combustion chamber that was between the rear drivers. A large dome could be found inside the cab that was located on top of the boiler. The No. 17 “Lehigh” was delivered in 1855, followed by five more.

As the New Jersey Locomotive Works made some changes inside the boiler and omitted the combustion chamber, the locomotives initially did not produce enough steam. Afterwards, the boilers were rebuilt into the form originally intended by Colburn. Another problem that was found were the large masses of the firebox and the cylinders, both hanging well outside of the wheelbase, what created a see-sawing motion. Although the camelback layout was later successfully used for anthracite-burning locomotives, these six locomotives were not seen as a great success and later at least No. 17 was rebuilt to a 4-6-0.

General
Built1855-1856
ManufacturerNew Jersey Locomotive Works
Wheel arr.0-6-0 (Six-coupled)
Gauge6 ft 0 in (Broad gauge)
Dimensions and Weights
Wheelbase11 ft
Rigid wheelbase11 ft
Total wheelbase48 ft 4 in
Service weight73,920 lbs
Adhesive weight73,920 lbs
Axle load24,640 lbs
Fuel capacitycoal
Boiler
Grate area45 sq ft
Firebox area269 sq ft
Tube heating area739 sq ft
Evaporative heating area1,008 sq ft
Total heating area1,008 sq ft
Power Plant
Driver diameter48 in
Boiler pressure100 psi
Expansion typesimple
Cylinderstwo, 18 x 24 in
Power
Power sourcesteam
Starting effort13,770 lbf
Calculated Values
steam locomotive
freight
camelback
last changed: 06/2025
Erie class E-1
go back
United States | 1899
29 produced
Image of locomotive
Edwin P. Alexander, „American Locomotives 1900 to 1950”

The class E-1 of the Erie Railroad consisted of 29 Atlantic express locomotives built by Baldwin between 1899 and 1901 and rated for speeds of 100 mph. They were Camelback locomotives with a square Wootten firebox measuring 96 by 96 inches.

Propulsion was provided by a Vauclain compound engine, i.e. with high and low pressure cylinders one above the other. A rebuild began as early as 1904, in which the four cylinders were replaced by two cylinders with simple expansion. One also increased the distance between the tube sheets by six inches to increase the heating surface.

Variantas builtrebuilt
General
Built1899-19011904-1906
ManufacturerBaldwin
Wheel arr.4-4-2 (Atlantic)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase24 ft 9 in
Rigid wheelbase6 ft 7 in
Total wheelbase52 ft 9 1/2 in
Service weight142,000 lbs155,100 lbs
Adhesive weight82,000 lbs75,800 lbs
Total weight258,800 lbs271,900 lbs
Axle load41,800 lbs
Water capacity6,000 us gal
Fuel capacity24,000 lbs (coal)
Boiler
Grate area64 sq ft
Firebox area160 sq ft
Tube heating area2,110 sq ft2,171 sq ft
Evaporative heating area2,270 sq ft2,331 sq ft
Total heating area2,270 sq ft2,331 sq ft
Variantas builtrebuilt
Power Plant
Driver diameter76 in
Boiler pressure200 psi
Expansion typecompoundsimple
Cylindersfour, HP: 13 x 26 in
and LP: 22 x 26 in
two, 18 x 26 in
Power
Power sourcesteam
Estimated power1,500 hp (1,119 kW)1,525 hp (1,137 kW)
Top speed100 mph
Starting effort14,570 lbf18,843 lbf
with start valve17,484 lbf
Calculated Values
steam locomotive
express
camelback
Vauclain compound
last changed: 06/2023
Erie class L-1
go back
United States | 1907
3 produced
Image of locomotive
Locomotive Magazine, September 1907

In the early years of the twentieth century, Mallet locomotives served only as an articulated solution for narrow-gauge railways. The L-1 of the Erie Railroad of 1907 was one of the first to show that very large freight locomotives could also be built with the Mallet principle. At the time it was commissioned, it was the largest and most powerful locomotive in the world. Since it was only intended as a pusher locomotive and did not have to reach high speeds, there was no need for leading or trailing axles. Thus, all eight axles were available as adhesive weight. The wheel arrangement was soon called “Angus”.

A Wooten firebox with a grate area of 100 square feet was used to maximize the energy yield from low-grade coal. In order to still ensure a good view for the engineer, the L-1 was built as a camelback engine and thus had the cab above the rearmost axle of the front bogie. It was the only camelback Mallet ever built.

Only three examples were built, which were used on the Delaware and Susquehanna divisions to push trains up a 1.3 percent incline. They were rebuilt to a more conventional form in 1921. The cab was moved to the rear and two carrying axles were added, whereby they now had the wheel arrangement 2-8-8-2.

General
Built1907
ManufacturerALCO
Wheel arr.0-8-8-0 (Angus (Mallet))
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length84 ft 9 3/4 in
Wheelbase39 ft 2 in
Rigid wheelbase14 ft 3 in
Total wheelbase70 ft 5 in
Service weight410,000 lbs
Adhesive weight410,000 lbs
Total weight577,700 lbs
Axle load54,100 lbs
Water capacity8,500 us gal
Fuel capacity32,000 lbs (coal)
Boiler
Grate area100 sq ft
Firebox area348.3 sq ft
Tube heating area4,965.7 sq ft
Evaporative heating area5,314 sq ft
Total heating area5,314 sq ft
Power Plant
Driver diameter51 in
Boiler pressure215 psi
Expansion typecompound
Cylindersfour, HP: 25 x 28 in
and LP: 39 x 28 in
Power
Power sourcesteam
Estimated power3,000 hp (2,237 kW)
Starting effort88,890 lbf
with start valve106,668 lbf
Calculated Values
steam locomotive
freight
Mallet
camelback
last changed: 06/2022
No. 2601
No. 2601
Schematic drawing
Schematic drawing
Railway and Locomotive Engineering, September 1907
View model on YouTube
Lehigh Valley class J-55½
go back
United States | 1904
105 produced
Image of locomotive
Ron Ziel, „American Locomotives 1858 to 1949”

The Lehigh Valley had the ability to source large quantities of smaller fragments of anthracite coal as residues from the processing operation at less than a dollar a ton. In order to be able to use these as fuel for steam locomotives, the camelback design was used with a very wide firebox, which included a large grate area. From 1904, a larger series of ten-wheelers was produced, which were suitable for use in front of fast freight trains in the lowlands and heavy local trains.

The locomotives were designed so heavy that the axle load was just suitable for high speeds. The large firebox was a slightly modified Wootten type and did not have a combustion chamber. The load on the individual coupled axles was distributed more rear-heavy to get better traction when starting. The initial wheel diameter of 68.5 inches represented a good compromise between higher speeds and a tractive effort of more than 30,000 pounds

There were some changes during production, for example the wheel diameter was increased to 69 inches. While the boiler initially had 378 tubes, this number was reduced to 363 from 1907. With the exception of Baldwin's last delivery, all locomotives had Stephenson-type valve gear. Of the last Baldwin engines, eight had Walschaert valve gear and two had Baker-Pilliod valve gear.

Variant1904 variant1907 variantsuperheated
General
Built1904-19061907-19101922
ManufacturerALCO, BaldwinLehigh Valley
Wheel arr.4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length57 ft 1 1/4 in
Wheelbase25 ft 4 in
Rigid wheelbase13 ft 4 in
Total wheelbase65 ft 7 in
Service weight199,200 lbs203,000 lbs207,200 lbs
Adhesive weight150,200 lbs154,000 lbs155,000 lbs
Total weight354,400 lbs358,200 lbs
Axle load50,200 lbs53,700 lbs55,200 lbs
Water capacity8,000 us gal
Fuel capacity24,000 lbs (coal)
Boiler
Grate area85 sq ft
Firebox area200 sq ft199 sq ft
Tube heating area3,084 sq ft2,960 sq ft2,171 sq ft
Evaporative heating area3,284 sq ft3,159 sq ft2,370 sq ft
Superheater area493 sq ft
Total heating area3,284 sq ft3,159 sq ft2,863 sq ft
Variant1904 variant1907 variantsuperheated
Power Plant
Driver diameter68.5 in69 in
Boiler pressure205 psi
Expansion typesimple
Cylinderstwo, 21 x 28 in
Power
Power sourcesteam
Estimated power1,550 hp (1,156 kW)1,525 hp (1,137 kW)1,600 hp (1,193 kW)
Starting effort31,411 lbf31,183 lbf
Calculated Values
steam locomotive
passenger
freight
camelback
last changed: 09/2022
Showing 1 to 10 of 15
Search
loadding loading...

We use cookies to save the following settings:

  • selected navigation structure
  • selected language
  • preferred units
  • spelling of railway company names

If you refuse the use of cookies, the settings will only be retained for the current session and will be reset to the default values the next time you visit the site.

Display of units

Here you can set the desired unit system for the technical data.

  • Metric: Lengths in meters, weights in tonnes, and volumes in cubic meters
  • Imperial (UK): Lengths in feet/inches, weights in long tons and volumes in imperial gallons
  • Imperial (US): Lengths in feet/inches, weights in pounds, and volumes in US gallons
  • Individual: Depends on the country of origin of each locomotive
Operator names

Here you can set the display of railway company names.

  • Short: Abbreviation or short form of the name
  • Standard: commonly used name, partially translated to English
  • Complete: full name in local language
