Grande Compagnie du Luxembourg No. 102 to 107 and 115 to 122
Belgian Railway types 23 and 24
go back
Belgium | 1871
14 produced

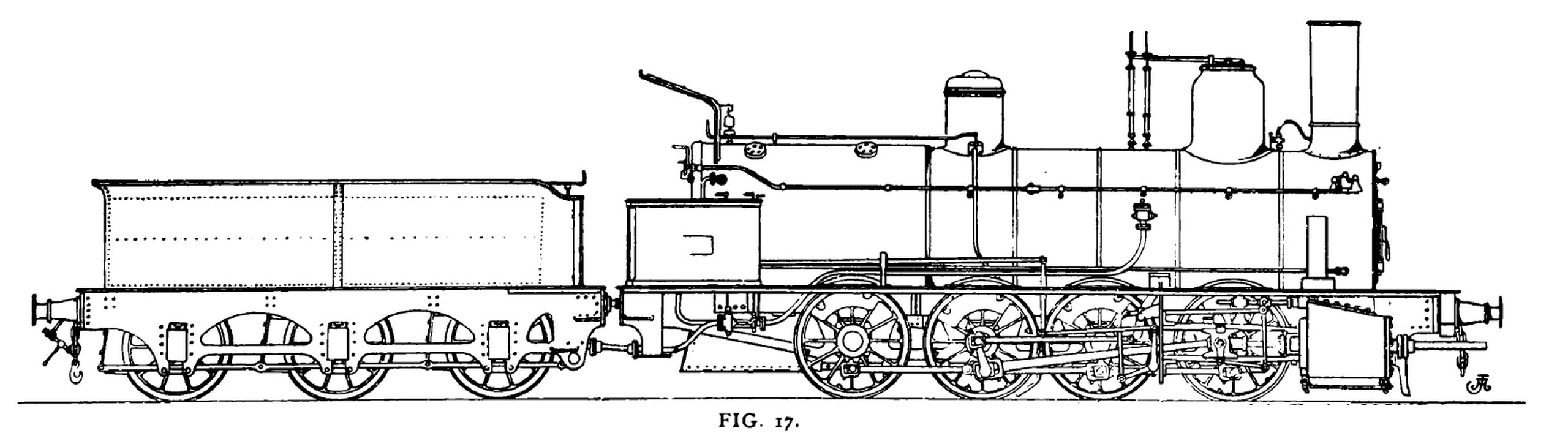

Type 24
Type 24
Locomotive Magazine, June 1922

Although they were no Engerth supporting tender locomotives, these 14 0-8-0 freight locomotives were also called “Engerth du Luxembourg”. The explanation for this is that apparently all powerful freight locomotives were called “Engerth” in France and Belgium at this time. They were the first eight-coupled locomotives in Belgium and were intended for heavy freight service on the line between Namur and Arlon that led towards Luxembourg. Their builder was Charles Evrard with his Compagnie Belge pour la Construction du Materiel de Chemins de Fer.

The first six were built in 1871 and were numbered 102 to 107. They had a round-topped firebox that was located in an overhanging position behind the last driving axle. Numbers 115 to 122 built in 1872 had a Belpaire firebox that was mounted above the last driving axle. Additionally, they had a somewhat larger firebox and less tube heating surface and weighed less. The state railway took over these batches as types 23 and 24 in 1873. Later they were used on secondary lines in the Hainault region. Their withdrawals were between 1891 and 1903.

Variant2324
General
Built18711872
ManufacturerEvrard
Wheel arr.0-8-0 (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length33 ft 6 15/16 in32 ft 9 7/8 in
Wheelbase13 ft 3 7/16 in14 ft 3 1/4 in
Rigid wheelbase13 ft 3 7/16 in14 ft 3 1/4 in
Service weight103,617 lbs97,003 lbs
Adhesive weight103,617 lbs97,003 lbs
Total weight154,323 lbs
Water capacity2,642 us gal
Fuel capacitycoal5,512 lbs (coal)
Boiler
Grate area22.2 sq ft24.1 sq ft
Firebox area115.4 sq ft122.7 sq ft
Tube heating area1,886.7 sq ft1,722.2 sq ft
Evaporative heating area2,002.1 sq ft1,844.9 sq ft
Total heating area2,002.1 sq ft1,844.9 sq ft
Variant2324
Power Plant
Driver diameter49.6 in50 in
Boiler pressure130 psi
Expansion typesimple
Cylinderstwo, 19 11/16 x 23 5/8 intwo, 19 11/16 x 26 in
Power
Power sourcesteam
Estimated power603 hp (450 kW)630 hp (470 kW)
Starting effort20,468 lbf22,338 lbf
Calculated Values
steam locomotive
freight
