New Zealand Railways class LA
go back
New Zealand | 1887
5 produced

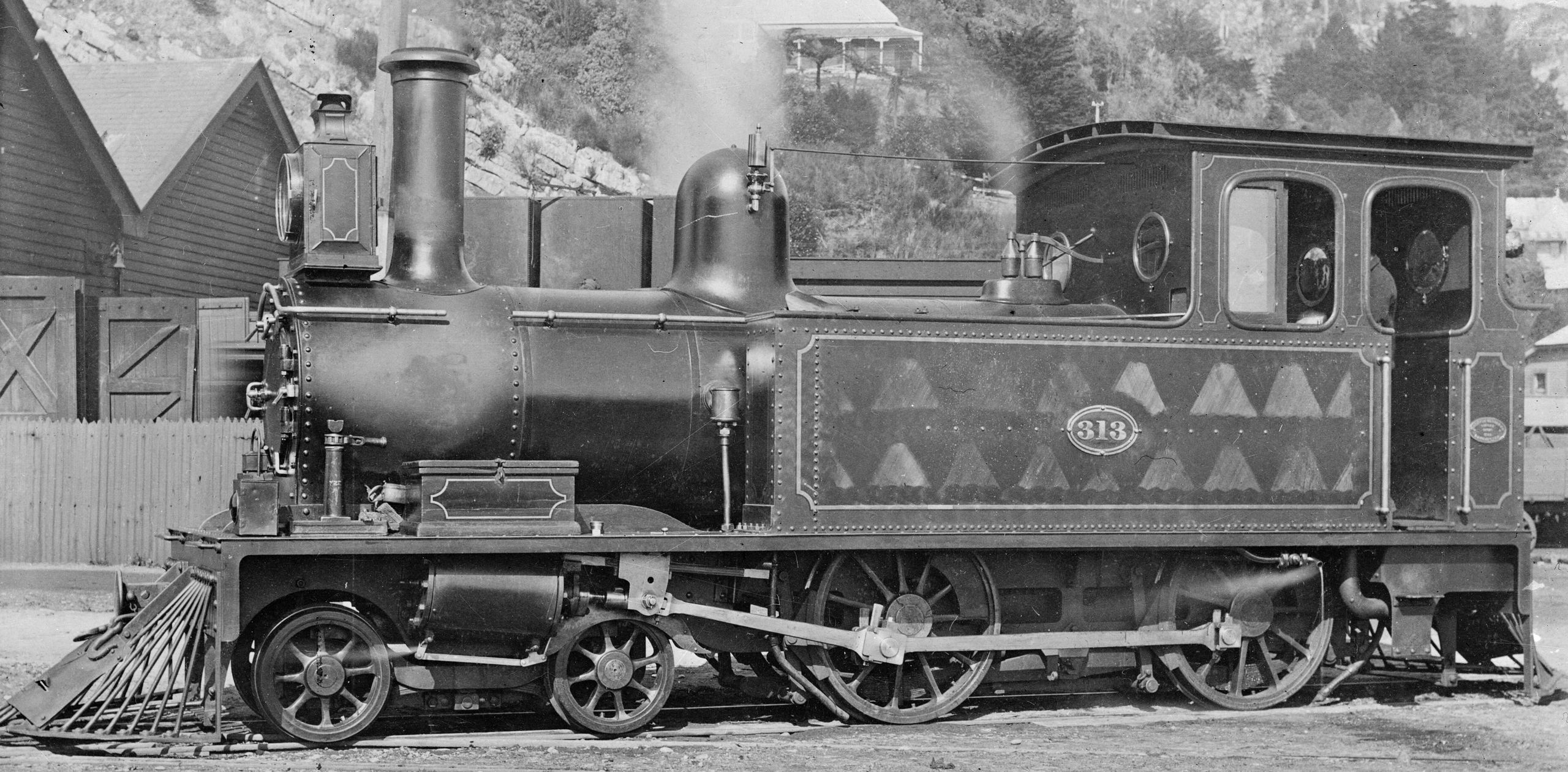

L<sup>A</sup> 313
LA 313
Albert Percy Godber

The five locomotives of the class LA were originally built between 1887 and 1892 for the New Zealand Midland Railway Company. As they were the first locomotives of this company, they had to haul all kinds of trains. They were tank locomotives with a 4-4-0T wheel arrangement and drivers of 42.5 inches. The cylinders measured twelve inches in diameter and 18 inches in stroke.

In 1900, the New Zealand Government Railways bought the Midland Railway and all their locomotives. There they received their class name LA, that was also applied to the 4-4-0T rebuilds of the L, although these had smaller drivers. The ex Midland locomotives were withdrawn between 1920 and 1928. Numbers 2 and 5, now 311 and 314, were sold to industrial operators and stayed in service until 1934 and 1950. Today 312 is in storage for a possible restoration.

General
Built1887-1892
ManufacturerNasmyth, Wilson & Co.
Wheel arr.4-4-0T (American)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length26 ft 2 in
Wheelbase17 ft 2 in
Rigid wheelbase7 ft
Service weight59,584 lbs
Adhesive weight39,872 lbs
Water capacity781 us gal
Fuel capacity2,016 lbs (coal)
Boiler
Grate area10.7 sq ft
Firebox area50 sq ft
Tube heating area535 sq ft
Evaporative heating area585 sq ft
Total heating area585 sq ft
Power Plant
Driver diameter42.5 in
Boiler pressure160 psi
Expansion typesimple
Cylinderstwo, 12 x 18 in
Power
Power sourcesteam
Estimated power250 hp (186 kW)
Starting effort8,294 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
passenger
