Southern State Railway “Cittanova” to “Pottenstein”
Austrian Southern Railway class 1 (old)
go back
Austria-Hungary | 1856
9 produced

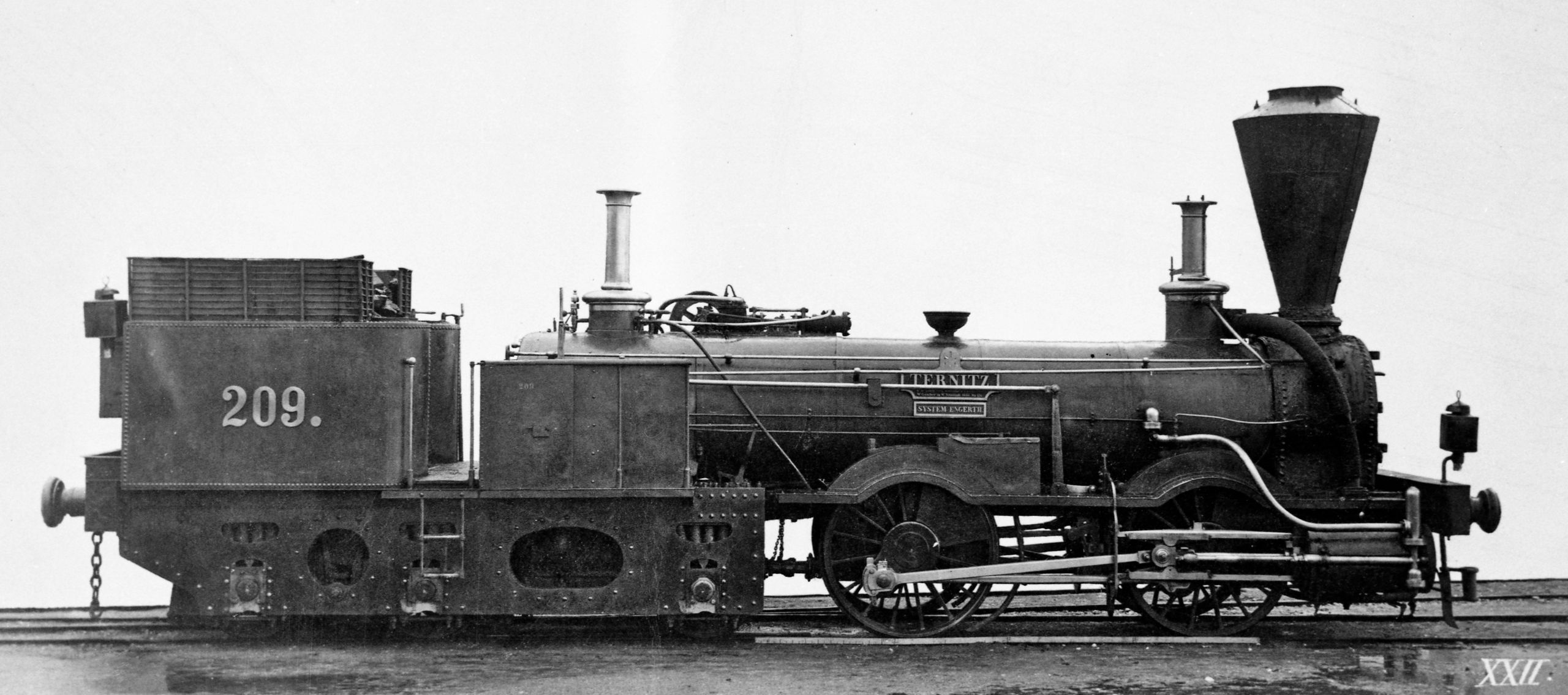

No. 209 “Ternitz”
No. 209 “Ternitz”

In 1856, Wiener Neustadt built nine 0-4-6T Engerth locomotives for the SStB which were intended für the mountainous lines in the Karst. With only 1,422 mm, their drivers were much smaller than those of the previous locomotives of this wheel arrangement. Additionally, they were the only ones with outside cylinders. The valve gear was of the Stephenson type and mounted on the inside. Usually used in passenger service, they could haul 75 tonnes on an incline of 1.4 percent with sufficient speed. In freight service, maximum train weight was 130 tonnes. Their names were “Cittanova“, “Illyrien“, “Veldes“, “Miramare“, “Ödenburg“, “Dornau“, “Sauerbrunn II“ (later “Küstenland“), “Ternitz“ and “Pottenstein“. When the SStB was privatized in 1858, these locomotives became Südbahn class 1 and carried the numbers 201 to 209. They were withdrawn between 1864 and 1867.

General
Built1856
ManufacturerWiener Neustadt
Wheel arr.0-4-6T (Engerth)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase24 ft 7 in
Rigid wheelbase7 ft 9 5/16 in
Empty weight80,028 lbs
Service weight99,869 lbs
Adhesive weight44,092 lbs
Axle load22,046 lbs
Water capacity1,427 us gal
Fuel capacity11,023 lbs (coal)
Boiler
Grate area10.8 sq ft
Firebox area66.7 sq ft
Tube heating area1,117.3 sq ft
Evaporative heating area1,184 sq ft
Total heating area1,184 sq ft
Power Plant
Driver diameter56 in
Boiler pressure94 psi
Expansion typesimple
Cylinderstwo, 16 1/16 x 24 7/8 in
Power
Power sourcesteam
Estimated power161 hp (120 kW)
Starting effort9,192 lbf
Calculated Values
steam locomotive
passenger
freight
tank locomotive
supporting tender
Engerth supporting tender
