Queensland Railways class A10
go back
Australia | 1865
20 produced

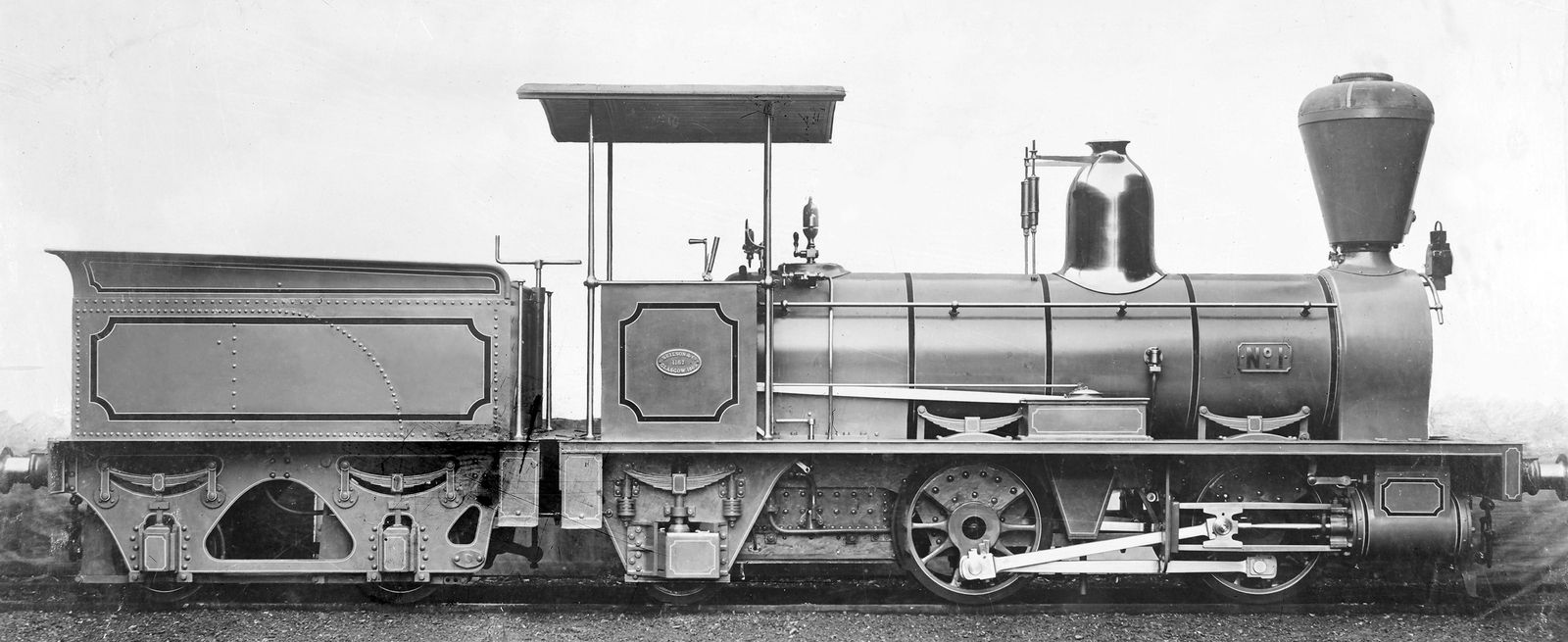

No. 1, built by Neilson & Co.
No. 1, built by Neilson & Co.
Queensland State Archives

In 1865 and 1866, Neilson & Co. built 13 small 0-4-2 locomotives for the railways of Queensland. Eight of these were destined for the Southern & Western Railway and four for the Central Railway. The last one was delivered to railway contractor Peto, Brassey and Betts. Despite the small size, they had injectors and an Adams trailing axle. No. 7 was special in that it had a vertical boiler. They were originally designated class B, but later became class A10, where the A stood for two driving axles and the 10 for the cylinder diameter in inches.

Later all four Central Railway locomotives also came to the Southern & Western Railway. After these railroads were incorporated into Queensland Railways, most retained their old numbers. Between 1887 and 1890, four were rebuilt to class 4D10 2-4-4T tank locomotives, including the vertical boiler No. 7. In 1902, only No. 3 was still in service. This locomotive was used as a shunter until 1914 and restored to working order again in 1936. No. 6 had been sold to Gibson & Howes in 1896. After it received a new boiler in 1955, it was used until 1965. Since 1991 it is in working order again at the Queensland Rail Heritage Fleet.

Apart from the 0-4-2 Neilson variant, there were two 2-4-0 variants which were also designated class A10 due to their two driving axles and ten-inch cylinders. Four were built by Avonside in 1864 which had the same basic dimensions as the Neilson variant. They had originally been designated class A and the last one had been withdrawn by 1896.

The other three built in 1877 had been ordered from the Fairlie Engine Co. which subcontracted the construction work to Vulcan Foundry. All went to the Central Railway. These had a cylinder stroke of only 14 inches instead of 18 like on the two other variants. Two were withdrawn in 1888 and the third one in 1906. All three had the luck of not being scrapped, so all are still existing today.

General
Built1865-1866
ManufacturerNeilson & Co.
Wheel arr.0-4-2
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Wheelbase11 ft 10 in
Rigid wheelbase6 ft 1 in
Service weight30,464 lbs
Adhesive weight25,088 lbs
Total weight49,280 lbs
Water capacity673 us gal
Fuel capacity5,600 lbs (coal)
Boiler
Grate area7.5 sq ft
Firebox area45 sq ft
Tube heating area375 sq ft
Evaporative heating area420 sq ft
Total heating area420 sq ft
Power Plant
Driver diameter36 in
Boiler pressure120 psi
Expansion typesimple
Cylinderstwo, 10 x 18 in
Power
Power sourcesteam
Estimated power130 hp (97 kW)
Starting effort5,100 lbf
Calculated Values
steam locomotive
passenger
freight
last changed: 08/2026

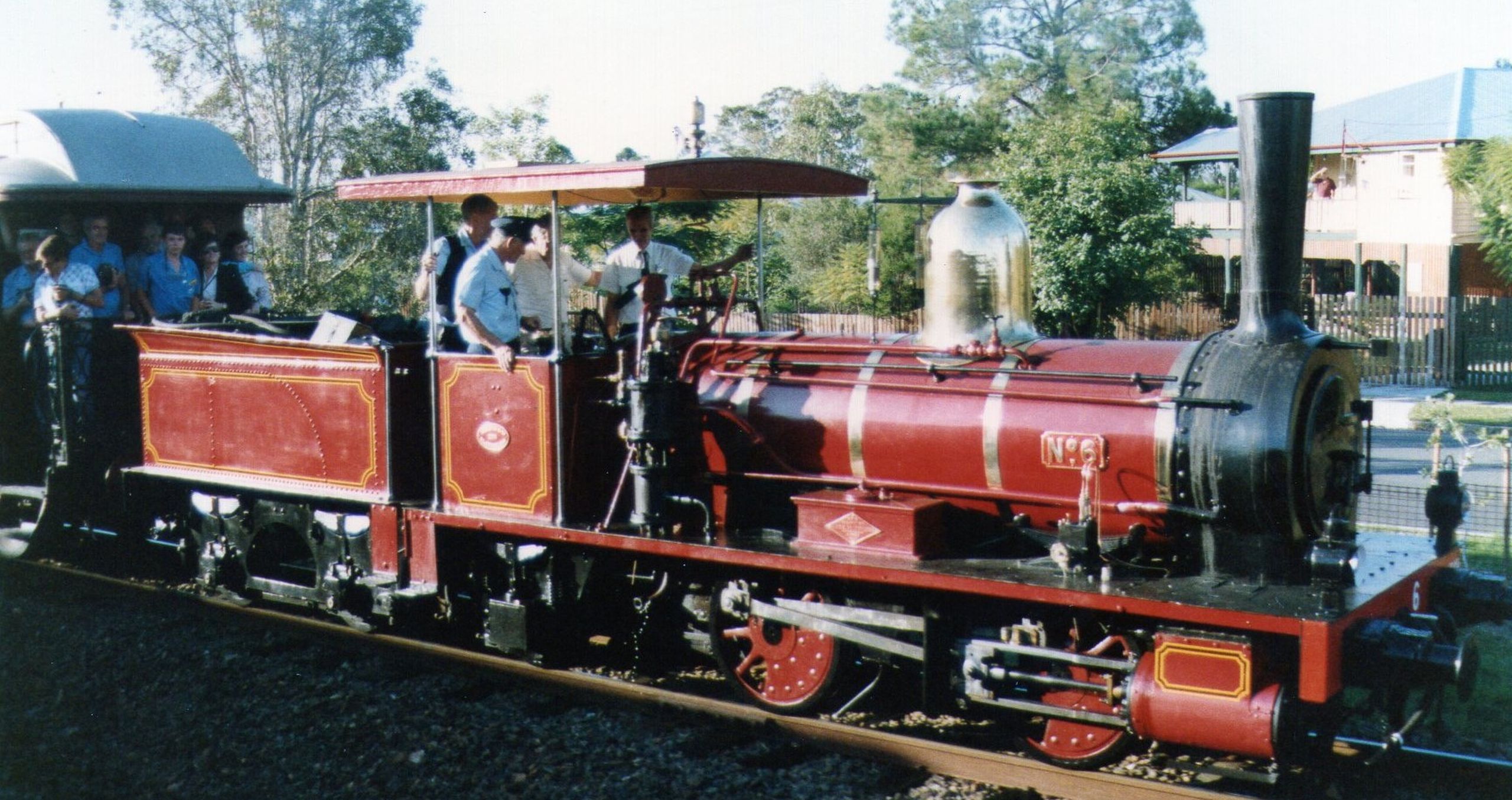

Preserved No. 6 after its preservation
Preserved No. 6 after its preservation
