Stockholm-Västeras-Bergslagens Inspection Engine
go back
Sweden | 1906
only one produced

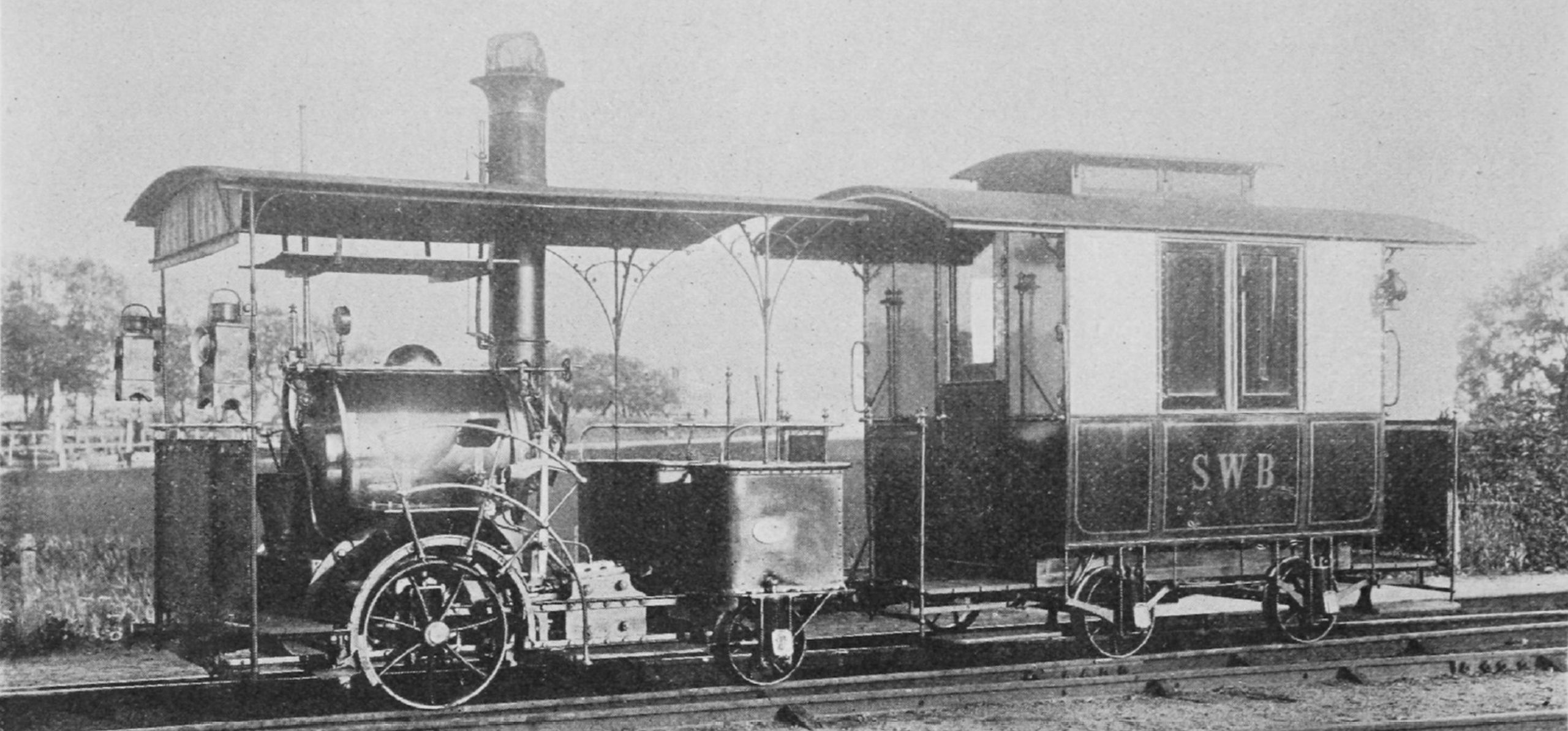

Image of locomotive
Locomotive Magazine, October 1906

Shortly after the turn of the century, the Stockholm-Västerås-Bergslagens Railway built a small inspection engine with only one cylinder. The power section had two axles, of which the front one was powered. Its drivers had a diameter of only two feet or 610 mm. There were three seats behind the boiler, all of which were in reach of the controls. The carriage section had a length of 11 feet or 3.35 metres and offered space for five persons. In it were a sofa, a chair, a table and a washstand. This vehicle usually traveled at speeds of nearly 29 km/h and is said to have reached 60 km/h on good days.

General
Built1906
ManufacturerSWB
Wheel arr.0-2-2+4T
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length loco4 ft 11 13/16 in
Wheelbase15 ft 5 13/16 in
Water capacity193 us gal
Fuel capacity882 lbs (coal)
Boiler
Grate area1.6 sq ft
Power Plant
Driver diameter24 in
Boiler pressure160 psi
Expansion typesimple
Cylindersone, 3 15/16 x 6 7/8 in
Power
Power sourcesteam
Starting effort301 lbf
Calculated Values
steam railcar
inspection engine
local
