Polish State Railways ET42
go back
Czechoslovakia | 1978
50 produced

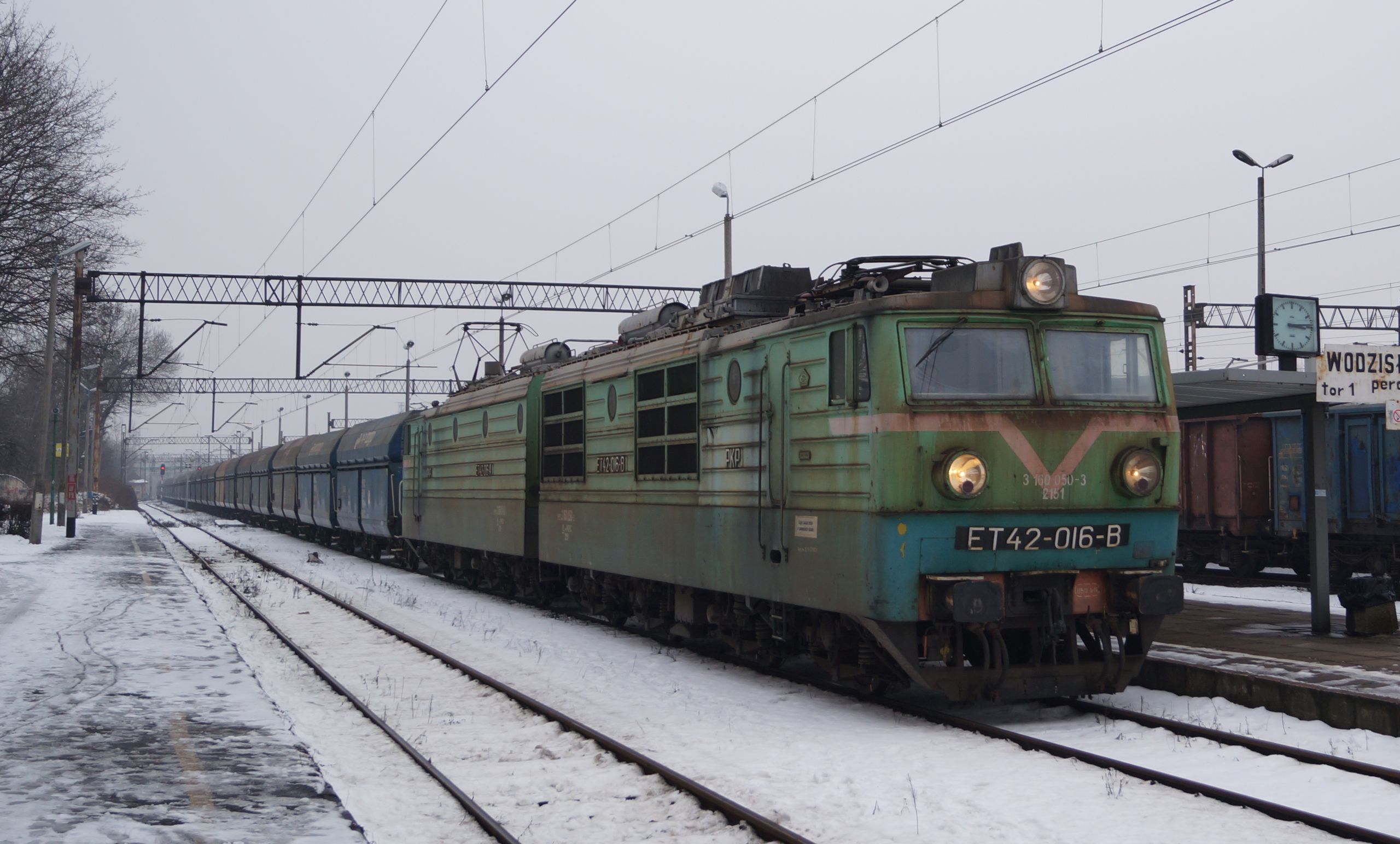

ET42 016 in February 2013 at Wodzisław Śląski station
ET42 016 in February 2013 at Wodzisław Śląski station
Sebastian Pańczyszyn

The ET42 is a two-section locomotive for freight traffic on lines with 3 kV DC. After the ET40 that had been built in Czechoslovakia and the ET41 that had been built in Poland, the ET42 came from Novocherkassk. It was based on the VL10 and VL11 and was the only electric locomotive in Poland that had been built in the Soviet Union. Each section has four axles with a total output of 4,840 kW. Both sections together have a total weight of 164 tonnes and a starting tractive effort of 560 kN. Their main task are heavy freight trains between Upper Silesia and the Baltic ports.So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1978-1982
ManufacturerNovocherkassk
Wheel arr.B-B+B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length101 ft 3 3/4 in
Service weight361,558 lbs
Adhesive weight361,558 lbs
Axle load45,195 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V
Hourly power6,491 hp (4,840 kW)
Continuous power6,008 hp (4,480 kW)
Top speed62 mph
Starting effort125,893 lbf
Calculated Values
electric locomotive
freight
two-section
last changed: 03/2026
