Bavarian Pt 2/4 N
German Reichsbahn class 721
go back
Germany | 1909
2 produced

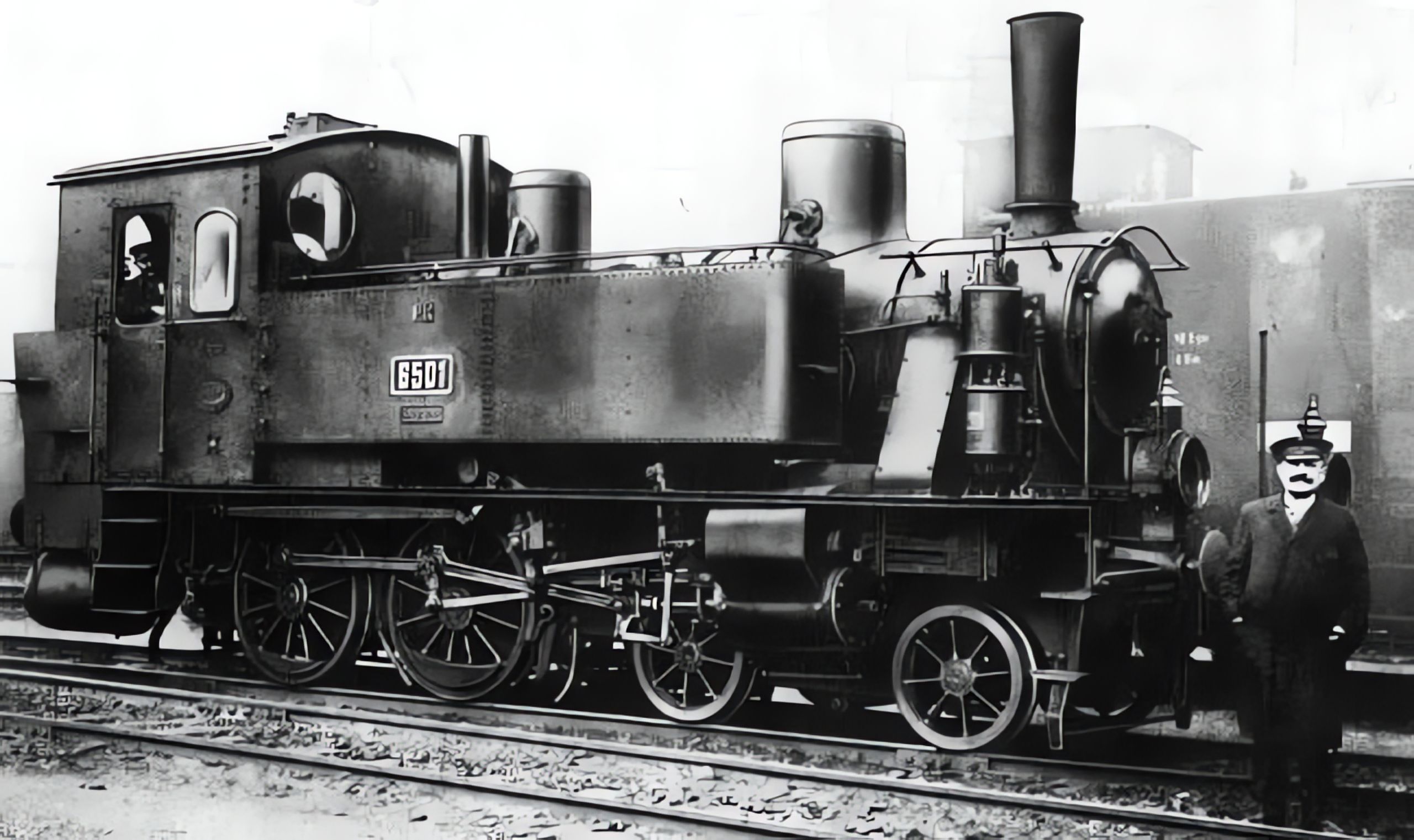

Image of locomotive
https://www.woernitz-franken.de/dampfzeit.htm

When the Pt 2/3 was designed, it was not clear whether its rigid 2-4-0 wheel arrangement was suitable for branch lines with sharp curves. So for comparison, two locomotives were built which had a two-axle bogie instead of the rigid leading axle. As there was already a superheated passenger tank locomotive with four axles of which two were powered, the new saturated locomotive was called Pt 2/4 N. Since the more complex design with the bogie did not have many advantages, the cheaper Pt 2/3 was bought in greater Numbers. The two Pt 2/4 N were later taken over by the Reichsbahn as 72 101 and 72 102 and withdrawn in 1928.

General
Built1909
ManufacturerKrauss
Axle config4-4-0T (American)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length29 ft 8 7/8 in
Service weight85,980 lbs
Adhesive weight57,761 lbs
Axle load29,101 lbs
Water capacity1,585 us gal
Fuel capacity2,425 lbs (coal)
Boiler
Grate area13.1 sq ft
Evaporative heating area791.8 sq ft
Total heating area791.8 sq ft
Power Plant
Driver diameter49.2 in
Boiler pressure174 psi
Expansion typesimple
Cylinderstwo, 13 3/4 x 19 11/16 in
Power
Power sourcesteam
Estimated power335 hp (250 kW)
Top speed40 mph
Starting effort11,234 lbf
Calculated Values
Optimal speed19 mph
steam locomotive
passenger
secondary line
tank locomotive
