Great Eastern class 140
go back
Great Britain | 1880
10 produced
No. 140 after the rebuild to a 0-4-2T
No. 140 after the rebuild to a 0-4-2T
collection Jeffrey Hess

The locomotives numbered 140 to 149 were designed by Massey Bromley and delivered by Hawthorn, Leslie & Co. in 1880 and 1881. They were 0-4-4T tank locomotives intended for branch lines where the class E10 with the same wheel arrangement was too heavy. Originally they had a steam brake for the locomotive only, but this was later replaced with the Westinghouse air brake.

As the rear bogie did not carry more weight than a driving axle, it was later replaced by a single trailing axle, what improved the weight distribution. All ten locomotives were rebuilt in this way between 1891 and 1897. When they needed new boilers, they got the same boiler as the E10 had received during rebuilding. So far there is only a short text for this vehicle. In the future it will be described in more detail.

Variantas builtrebuilt 0-4-2T
General
Built1880-18811891-1897
ManufacturerHawthorn, Leslie & Co.
Axle config0-4-4T (Forney) 0-4-2T
Dimensions and Weights
Wheelbase19 ft 1 in17 ft 4 in
Rigid wheelbase6 ft 10 in
Service weight94,892 lbs91,700 lbs
Adhesive weight61,320 lbs61,348 lbs
Water capacity1,173 us gal
Fuel capacitycoal
Boiler
Grate area13.9 sq ft
Firebox area84.6 sq ft
Tube heating area857.2 sq ft
Evaporative heating area941.8 sq ft
Total heating area941.8 sq ft
Variantas builtrebuilt 0-4-2T
Power Plant
Driver diameter64 in
Boiler pressure140 psi
Expansion typesimple
Cylinderstwo, 16 x 22 in
Power
Power sourcesteam
Estimated power325 hp (242 kW)
Starting effort10,472 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
Massey Bromley
last changed: 06/2025
No. 140 as built
No. 140 as built
Locomotive Magazine, June 1911

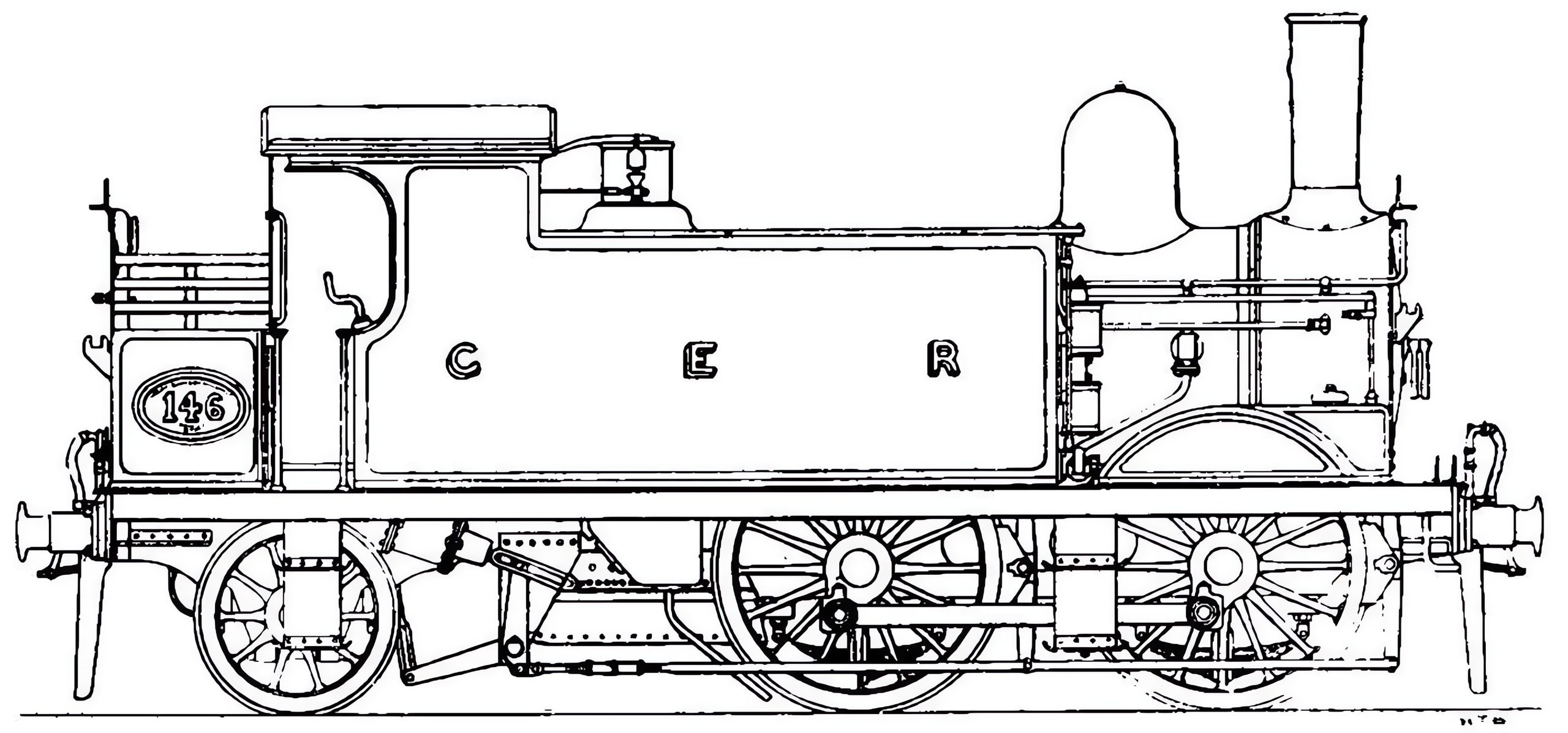

No. 146 ater the rebuild
No. 146 ater the rebuild
Locomotive Magazine, June 1911
