Nigerian Railways class 74
go back
Nigeria | 1946
33 produced

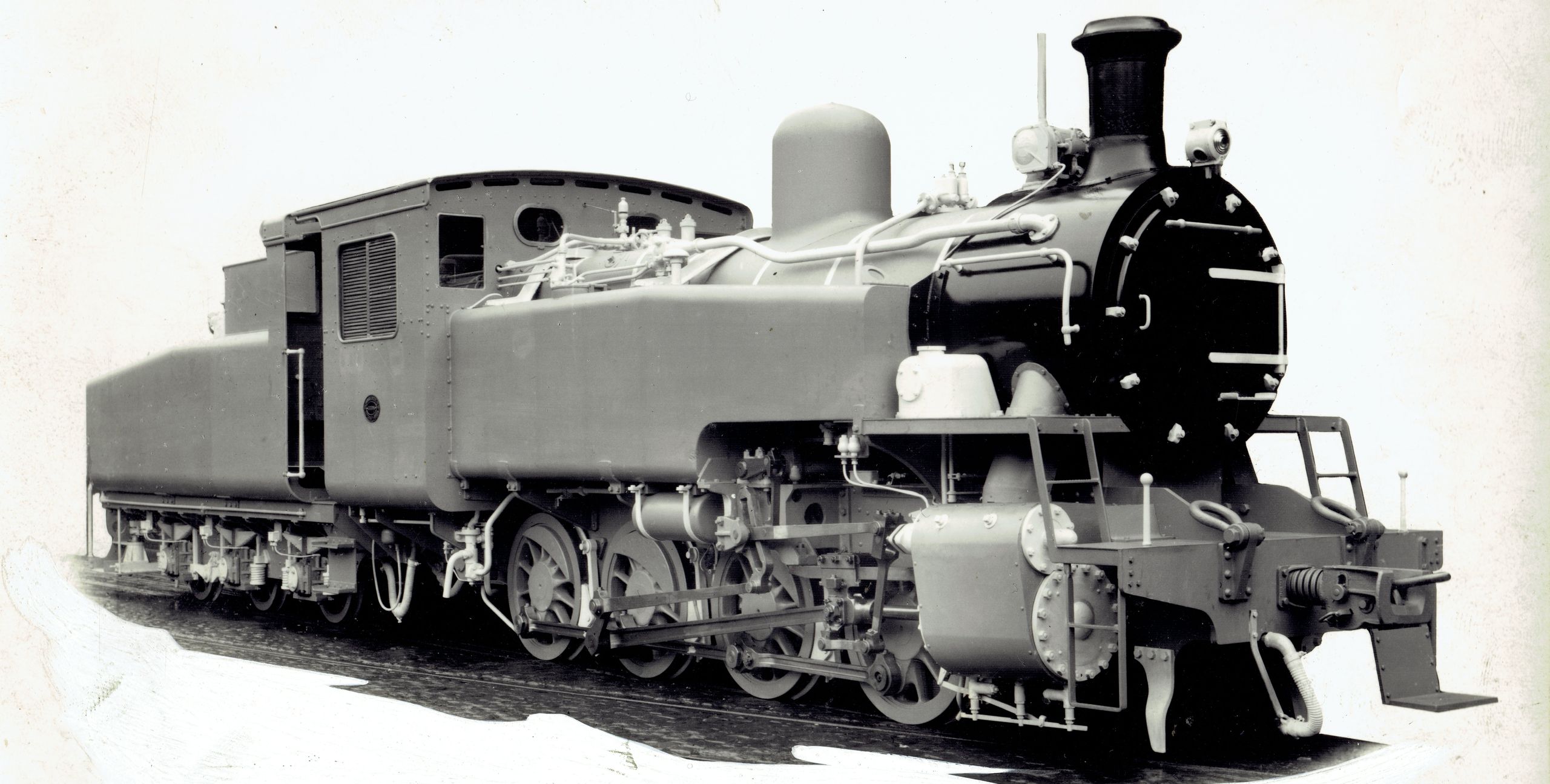

Image of locomotive
flickr/Historical Railway Images

In 1946, Hunslet built eleven eight-coupled shunters for the Nigerian Railways. They had both side tanks and an additional tender. The cylinders measured 18 by 23 inches, with drivers of 42.75 inches. The first batch carried the running numbers 74 to 84. Numbers 85 to 100 followed in 1949 and finally, numbers 51 to 56 were built in 1955. Works numbers were 3345 to 3355 for the first batch, 3552 to 3555 and 3625 to 3636 for the two batches in 1949 and 3857 to 3862 for the last one.

General
Built1946, 1949, 1955
ManufacturerHunslet
Wheel arr.0-8-0TT (Eight-coupled)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Wheelbase13 ft 5 in
Rigid wheelbase13 ft 5 in
Service weight108,864 lbs
Adhesive weight108,864 lbs
Axle load27,440 lbs
Water capacity1,201 us gal
Fuel capacity4,480 lbs (coal)
Boiler
Grate area13.4 sq ft
Firebox area93 sq ft
Tube heating area791 sq ft
Evaporative heating area884 sq ft
Total heating area884 sq ft
Power Plant
Driver diameter42.8 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 18 x 23 in
Power
Power sourcesteam
Estimated power400 hp (298 kW)
Starting effort26,670 lbf
Calculated Values
steam locomotive
tank locomotive
tank and tender
switcher
