Belgian Railway HLR 73 and HLR 74
originally type 73
go back
Belgium | 1965
105 produced
7401 “Polka” in February 2008 at Antwerp
7401 “Polka” in February 2008 at Antwerp
Alf van Beem

The HLR 73 and 74 were three-axle shunting locomotives which were built to replace the last steam locomotives in this task. They were related to the type 82, but had an increased output of 550 kW (750 hp) instead of 475 kW (650 hp). Production of the HLR 73, originally designated type 273, started in 1965 at La Brugeoise et Nivelles and Ateliers Belges Réunis. 35 had been built by 1966, a second batch of 40 followed in 1973 and 1974 and a third batch of 20 followed in 1977. In contrast to the Cockerill diesel engine of the HLR 73, the ten HLR 74 built in 1977 had an ABC engine of the same power.

Most locomotives of these two types were withdrawn from service with the SNCB between 2002 and 2010 and in 2013, only six were left. But only some were scrapped and most were sold to private owners. Eight of them came to the Netherlands, they were sold to Rotterdam Rail Feeding (RRF) in 2008 and 2009. RRF used them until 2019. Apart from the locomotives which are still being used by private operators, some are being preserved, most notably by the association called Toerisme en Spoorpatrimonium (TSP).

Variant7374
General
Built1965-19771977
ManufacturerLa Brugeoise et Nivelles, Ateliers Belges RéunisLa Brugeoise et Nivelles
Wheel arr.C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length37 ft 5 in
Service weight123,459 lbs130,073 lbs
Adhesive weight123,459 lbs130,073 lbs
Axle load41,226 lbs43,431 lbs
Boiler
Variant7374
Power Plant
Power
Power sourcediesel-hydraulic
Top speed37 mph
EngineCockerill 6TH695SA oder 6T240COABC
Engine type6-cyl. diesel
Engine output738 hp (550 kW)
Calculated Values
diesel locomotive
switcher
last changed: 07/2025
Belgian Railway type 200
later HLD 51
go back
Belgium | 1961
93 produced
5102 and 5122 in January 1998 in Schaarbeek
5102 and 5122 in January 1998 in Schaarbeek
BB.12069

The type 200 was one of the first Belgian mainline diesel locomotives. It used the same engine as the earlier four-axle type 201, but with an increased output of 2,000 hp. Distinguishing features from its predecessor was the more angular body design and six axles. After the first order for 53, 40 more were ordered immediately. With a top speed of 120 km/h and a steam heating boiler, they were designed for mixed traffic. In the result, they could be found with all types of trains from freight to the TEE.

In 1971, 200.001 was rebuilt with a 4,000 hp engine and electric train heating. It was numbered 200.101, but rebuilt back in 1981. Also in 1971, the class was renamed to HLD 51. Since the 90s, they were mostly used in freight traffic. After the withdrawal of the last locomotives in 2003, some were preserved and some sold to foreign customers. So a two-digit number came to Italy, while two came to France. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1961-1963
ManufacturerCockerill, ACEC
Wheel arr.C-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length66 ft 1 11/16 in
Wheelbase47 ft 10 13/16 in
Rigid wheelbase13 ft 1 1/2 in
Service weight257,941 lbs
Adhesive weight257,941 lbs
Axle load42,990 lbs
Boiler
Power Plant
Power
Power sourcediesel-electric
Top speed75 mph
Starting effort61,148 lbf
EngineBaldwin/Cockerill 608A
Engine type8-cyl. diesel
Engine output1,944 hp (1,450 kW)
Calculated Values
diesel locomotive
freight
passenger
last changed: 02/2025
Belgian Railway type 201
later HLD 59
go back
Belgium | 1954
55 produced
5941 in August 1990 in Ronet
5941 in August 1990 in Ronet
Appelmoesgezeefdzond?ertoegevoegdesuiker
General
Built1954-1955
ManufacturerCockerill, ACEC
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length53 ft 1 in
Wheelbase34 ft 6 3/16 in
Rigid wheelbase8 ft 9 1/2 in
Service weight192,243 lbs
Adhesive weight192,243 lbs
Axle load48,061 lbs
Boiler
Power Plant
Power
Power sourcediesel-electric
Top speed75 mph
Starting effort44,063 lbf
EngineBaldwin/Cockerill 608A
Engine type8-cyl. diesel
Engine output1,717 hp (1,280 kW)
Calculated Values
diesel locomotive
freight
passenger
Dutch Railways series 2200
go back
Netherlands | 1955
150 produced

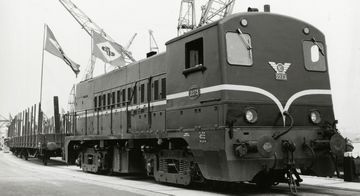

2273 in May 1960 in Minerva Harbor, Amsterdam
2273 in May 1960 in Minerva Harbor, Amsterdam
Nederlandse Spoorwegen / Het Utrechts Archief

To replace steam locomotives in freight traffic, the NS had the series 2200 built between 1955 and 1958. Baldwin and Westinghouse were involved in the development. They had only a cab at one end and a narrow engine compartment with running boards. The mechanical part was manufactured partly by Allan in the Netherlands and partly by Schneider in France, while the electrical part came from Heemaf.

Some of them were also used for passenger trains, with a steam heat car being used in colder weather. Some locomotives were even equipped for sandwich operation. Due to the decline in freight traffic, the first ones were retired between 1972 and 1974, and many only disappeared from 1985 onwards. The last ones were retired in 2003. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1955-1958
ManufacturerAllan of Rotterdam, Schneider, Heemaf
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length45 ft 11 9/16 in
Service weight158,733 lbs
Adhesive weight158,733 lbs
Axle load39,683 lbs
Boiler
Power Plant
Power
Power sourcediesel-electric
Top speed62 mph
Starting effort41,590 lbf
EngineStork/Superior 40C-LX-8
Engine type8-cyl. diesel
Engine output888 hp (662 kW)
Calculated Values
diesel locomotive
passenger
freight
last changed: 01/2024
Dutch Railways series 6400
go back
Netherlands | 1988
120 produced
6417 in Railion livery in November 2009 in the port of Amsterdam
6417 in Railion livery in November 2009 in the port of Amsterdam
Joost J. Bakker
General
Built1988-1994
ManufacturerMaK
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length47 ft 2 15/16 in
Wheelbase32 ft 1 13/16 in
Rigid wheelbase7 ft 10 1/2 in
Service weight180,779 lbs
Adhesive weight180,779 lbs
Axle load45,195 lbs
Boiler
Power Plant
Power
Power sourcediesel-hydraulic
Top speed75 mph
Starting effort68,567 lbf
EngineMTU 12V396TC13
Engine typeV12 diesel
Fuel766 us gal (diesel)
Engine output1,582 hp (1,180 kW)
Calculated Values
diesel locomotive
freight
switcher
Irish Transport Company class 001
go back
Ireland | 1955
60 produced
No. 051 with a freight train at Wellingtonbridge in October 1993
No. 051 with a freight train at Wellingtonbridge in October 1993
Phil Richards

The class 001 designates six-axle diesel-electric locomotives originally fitted with 1,200hp Crossley two-stroke diesels. They were intended for passenger and freight service and were built by Metropolitan-Vickers in Manchester. The low reliability of the Crossley engines meant that from 1968 they were rebuilt to engines of the EMD 645 type. These also worked on the two-stroke principle and initially produced 1,650 hp. Since the propulsion electronics and the cooling system were stressed with this power, the power was soon reduced to 1,325 hp. The 60 locomotives provided valuable services until they were replaced by new class 201s in 1994. So far there is only a short text for this vehicle. In the future it will be described in more detail.

Variantas builtre-engined
General
Built1955-19561968-1971
ManufacturerMetropolitan-Vickers
Wheel arr.C-C
Gauge5 ft 3 in (Irish broad gauge)
Dimensions and Weights
Length51 ft 0 in
Service weight185,188 lbs
Adhesive weight185,188 lbs
Axle load46,297 lbs
Boiler
Variantas builtre-engined
Power Plant
Power
Power sourcediesel-electric
Top speed75 mph
Starting effort62,000 lbf
EngineCrossley HSTV8EMD 12-645E
Engine typeV8 dieselV12 diesel
Engine output1,200 hp (895 kW)1,325 hp (988 kW)
Calculated Values
diesel locomotive
passenger
freight
last changed: 08/2023
Italian State Railway D.345
go back
Italy | 1970
145 produced
An example in modern livery in August 2013 in Peschiera del Garda
An example in modern livery in August 2013 in Peschiera del Garda
Vale93b
General
Built1970-1979
ManufacturerFIAT, Breda, SOFER
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length43 ft 5 1/4 in
Wheelbase31 ft 4 3/8 in
Rigid wheelbase6 ft 5 3/16 in
Service weight136,686 lbs
Adhesive weight136,686 lbs
Axle load341,716 lbs
Boiler
Power Plant
Power
Power sourcediesel-electric
Top speed81 mph
EngineFIAT 218SSF
Engine typeV8 diesel
Engine output1,328 hp (990 kW)
Calculated Values
diesel locomotive
freight
Italian State Railway D.445
go back
Italy | 1974
150 produced
D.445.1034 with “Centoporte” carriages in May 2015 on the bridge over the Nocella between Carini and Partinico
D.445.1034 with “Centoporte” carriages in May 2015 on the bridge over the Nocella between Carini and Partinico
Giorgio Stagni
General
Built1974-1988
ManufacturerFIAT, Breda, SOFER
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length46 ft 3 1/8 in
Wheelbase34 ft 2 1/4 in
Rigid wheelbase6 ft 5 3/16 in
Service weight160,937 lbs
Adhesive weight160,937 lbs
Axle load40,345 lbs
Boiler
Power Plant
Power
Power sourcediesel-electric
Top speed81 mph
Starting effort49,458 lbf
EngineFIAT A210-12
Engine typeV12 diesel
Engine output1,924 hp (1,435 kW)
Calculated Values
diesel locomotive
passenger
Portuguese State Railway series 1400
go back
Portugal | 1967
67 produced
No. 1413 in February 2011 at Gafanha da Nazaré
No. 1413 in February 2011 at Gafanha da Nazaré
Nelso Silva / CP 1413 em manobras

The series 1400 of the Portuguese State Railways were 67 diesel locomotives ordered from English Electric to replace the remaining steam locomotives in mixed service. They were based on the British class 20 and had a similar V8 engine, but in this case with an intercooler and producing 1,370 hp, hence its designation 8CSVT. Another change was that the cab was not on the extreme end of the locomotive.

Only the first ten were completed by English Electric in 1967 and the rest was assembled by Sorefame in Portugal. After production was completed in 1969, all which were already withdrawn in the 20th century had become victims of accidents. Between 2001 and 2010, eleven were sold to Argentina. In Portugal, many were still in service in 2020. At this time, most of these had already been sold to private operators, with Medway being the biggest. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1967-1969
ManufacturerVulcan Foundry, Sorefame
Wheel arr.B-B
Gauge5 ft 5 11/16 in (Iberian broad gauge)
Dimensions and Weights
Length41 ft 8 13/16 in
Service weight141,978 lbs
Adhesive weight141,978 lbs
Axle load35,935 lbs
Boiler
Power Plant
Power
Power sourcediesel-electric
Top speed65 mph
Starting effort35,520 lbf
EngineEnglish Electric 8CSVT
Engine typeV8 diesel
Fuel594 us gal (diesel)
Engine output1,312 hp (978 kW)
Calculated Values
diesel locomotive
freight
passenger
last changed: 11/2024
Romanian Railway series 040 DH
later classes 80 and 81 and Bulgarian State Railway series 55
go back
Romania | 1968
944 produced
BDŽ 55 149 in February 2009 in Vratsa
BDŽ 55 149 in February 2009 in Vratsa
Sludge G

The 040 DH was a series of four-axle diesel locomotives produced in large numbers by the “August 23rd” works (FAUR) in Bucharest. Designated LDH 125 by their manufacturer, the original design came from Sulzer of Switzerland and used hydraulic transmissions which were also manufactured under license in Romania. Their main task was to replace the last steam locomotives on secondary lines and in heavy shunting service.

Power comes from a six-cylinder Sulzer diesel that produces 1,250 hp, hence the “125” in the manufacturer's designation. The hydraulic transmission has one step for shunting service with a top speed of 60 km/h and a second step for line service up to 100 km/h. Some locomotives were built with a steam heating boiler, which later became class 80 of the CFR. The variant without steam heating became class 81.

Between 1968 and 1976, a total of 944 was built for domestic and foreign customers. Of 633 built for Romania, 475 came to operators in the industry and only 158 to the CFR. 263 more were built for the Bulgarian BDŽ, where they were designated class 55. Additionally, 42 came to industrial operators in Czechoslovakia, three into Iraq, two to China and one to the Soviet union. Derived from the original LDH 125, there were variants with lower power, for broad gauge or with electric transmission.

Some locomotives in service with the CFR were later rebuilt to electric train heating and designated class 89. Two different variants of rebuilds by Alstom and Remarul included a more modern engine, while retaining the same transmission. Locomotives which got Caterpillar engines became class 82 and others with a MTU engine became class 83. After 2005, more received a more comprehensive overhaul by Remarul which became class 84.

General
Built1968-1976
ManufacturerFAUR
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length41 ft 8 in
Wheelbase8 ft 2 7/16 in
Rigid wheelbase31 ft 9 7/8 in
Service weight154,323 lbs
Adhesive weight154,323 lbs
Axle load38,581 lbs
Boiler
Power Plant
Power
Power sourcediesel-hydraulic
Top speed62 mph
Starting effort50,582 lbf
EngineSulzer 6LDA28
Engine type6-cyl. diesel
Engine output1,234 hp (920 kW)
Calculated Values
diesel locomotive
freight
passenger
switcher
last changed: 07/2025
