Austrian Southern Railway class 1II
go back
Austria-Hungary | 1889
2 produced

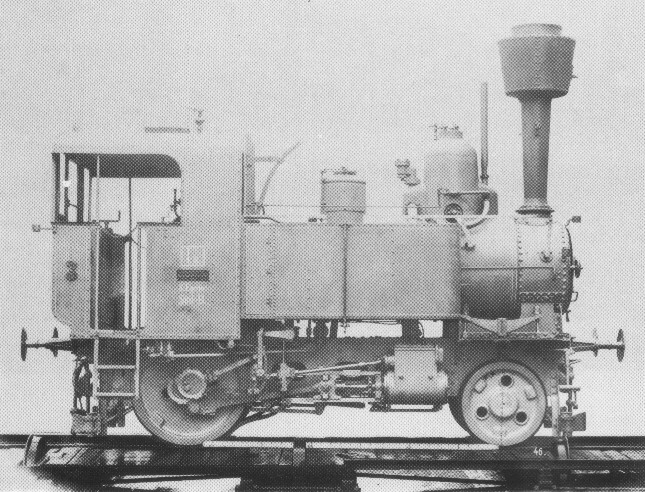

Image of locomotive

The class 1II designated two light tank locomotives which were built for the line between Mödling and Laxenburg. This line went to the summer residence of the emperor and so these locomotives had the task to haul short trains with him and his entourage. Delivered in 1889, they carried the numbers 2 and 3. They had two axles of which only the second one was powered by cylinders which were placed behind the leading axle. The vacuum brake was assisted by a counter-steam brake. Between 1910 and 1915 they were replaced by the class 4II that was even older, but had a baggage compartment.

General
Built1889
ManufacturerStEG
Wheel arr.2-2-0T (Planet)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length19 ft 11 3/16 in
Wheelbase10 ft 6 in
Rigid wheelbase10 ft 6 in
Empty weight32,915 lbs
Service weight44,754 lbs
Adhesive weight26,455 lbs
Axle load26,455 lbs
Water capacity647 us gal
Fuel capacitycoal
Boiler
Grate area9.4 sq ft
Firebox area43.1 sq ft
Tube heating area368.1 sq ft
Evaporative heating area411.2 sq ft
Total heating area411.2 sq ft
Power Plant
Driver diameter47.2 in
Boiler pressure174 psi
Expansion typesimple
Cylinderstwo, 10 1/4 x 17 5/16 in
Power
Power sourcesteam
Estimated power208 hp (155 kW)
Starting effort5,682 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
secondary line
