State Railway Company cat. Ia No. 161 to 190
later class 24, Imperial-Royal State Railways class 205 and Czechoslovak State Railways class 254.3
go back
Austria-Hungary | 1886
30 produced

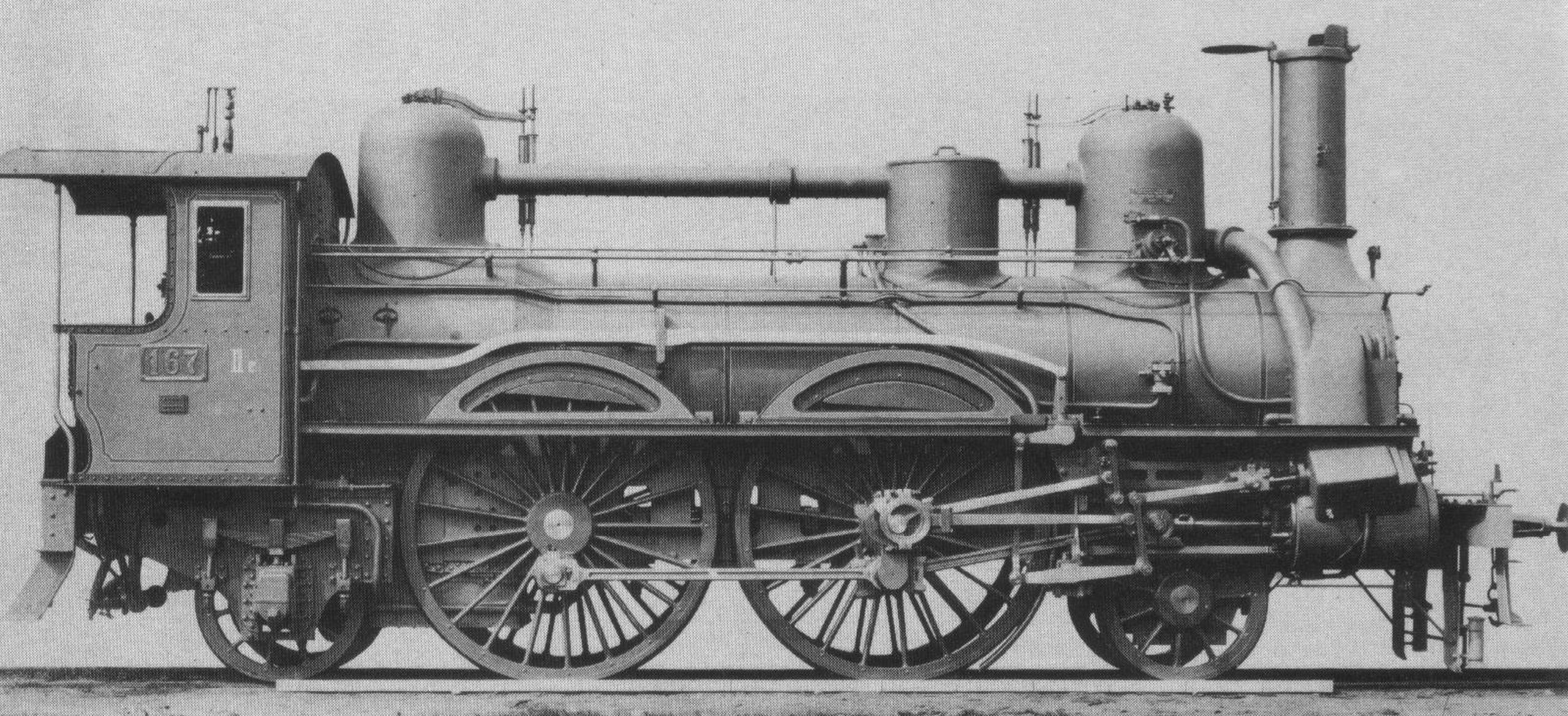

Image of locomotive

The category Ia locomotives with the numbers 161 to 190 were 30 2-4-2 express locomotives built by the StEG in their own shops between 1886 and 1896. Compared to the numbers 65 to 122 of the same wheel arrangement, the drivers had been enlarged from 1,820 to 2,120 mm. Although the heating surface had been reduced by a bit, they had still a fairly large grate of 2.3 m². As with the earlier locomotives, the French influence could clearly be seen.

They were only operated in the northern part of the StEG network in today's Czech republic. So all remained in Austria when the StEG was split into an Austrian and a Hungarian part in 1891. Now they formed the class 24. When the StEG was nationalized in 1909, they became kkStB class 205. After World War I, 29 were still existing, but all now on Czechoslovak territory. 23 of these were taken over by the ČSD and became class 254.3. The last of these were withdrawn in 1930.

General
Built1886-1896
ManufacturerStEG
Wheel arr.2-4-2 (Columbia)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length loco33 ft 3 3/4 in
Wheelbase19 ft 8 1/4 in
Rigid wheelbase7 ft 3 3/8 in
Empty weight96,342 lbs
Service weight107,145 lbs
Adhesive weight60,186 lbs
Total weight162,040 lbs
Water capacity2,642 us gal
Fuel capacity7,275 lbs (coal)
Boiler
Grate area24.8 sq ft
Firebox area108.7 sq ft
Tube heating area1,310 sq ft
Evaporative heating area1,418.7 sq ft
Total heating area1,418.7 sq ft
Power Plant
Driver diameter83.5 in
Boiler pressure138 psi
Expansion typesimple
Cylinderstwo, 18 1/8 x 25 9/16 in
Power
Power sourcesteam
Estimated power536 hp (400 kW)
Starting effort11,778 lbf
Calculated Values
steam locomotive
express
