Ozette Timber Co. No. 10 (Shay 3-PC-13)
Rayonier, Inc. No. 10
go back
United States | 1930
only one produced

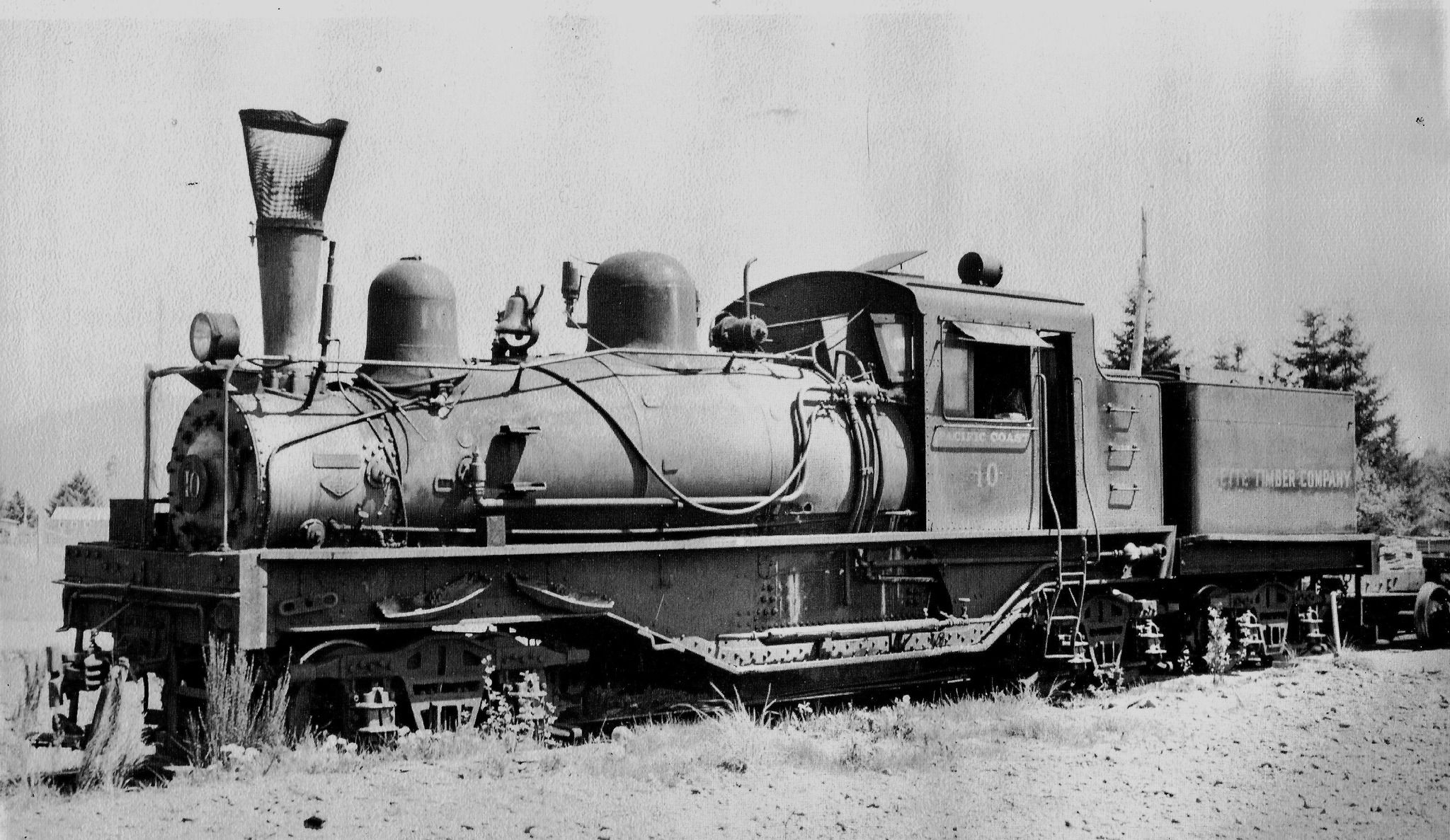

Image of locomotive
A. Farrow

The Shay later known as Ozette Timber Co. No. 10 was a member of the special “Pacific Coast” model introduced by Lima in 1927. This had been designed as an answer for the Shays produced by Willamette of Portland, Oregon, which incorporated some modern features not to be found in regular Shays. So Lima introduced their even more modern type with girder frames, cast trucks, steel cabs and more. In the result, Lima could sell 27 of its „Pacific Coast” model.

Ozette No. 10 left the shops on April 28, 1930 with works number 3348 and was delivered to Hofius Steel & Equipment Co. at Seattle, Washington. Although it was destined for Canada, the original customer did not take it over and it stayed in Seattle until it was bought by the Ozette Lumber Co. in 1941. After operating only four years around Lake Ozette, it came to Rayonier Inc. and was transferred to Sekiu. There it was retired in 1959 and came to Tillicum Park in Forks, where it is on display until today. So it spent all of its working life on the North West of Olympic National Park.

General
Built1930
ManufacturerLima
Wheel arr.0-4-4-4-0T (Shay)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Empty weight162,000 lbs
Adhesive weight162,000 lbs
Water capacity3,000 us gal
Fuel capacity1,200 lbs (oil)
Boiler
Power Plant
Driver diameter36 in
Boiler pressure200 psi
Expansion typesimple
Cylindersthree, 13 x 15 in
Power
Power sourcesteam
Top speed18 mph
Starting effort38,183 lbf
Calculated Values
steam locomotive
Shay
geared steam locomotive
freight
