Emperor Franz Joseph Railway No. 1 to 50 and 151 to 154
Imperial-Royal State Railways classes 24 and 26 and Czechoslovak State Railways classes 233.0 and 233.1
go back
Austria-Hungary | 1868
54 produced

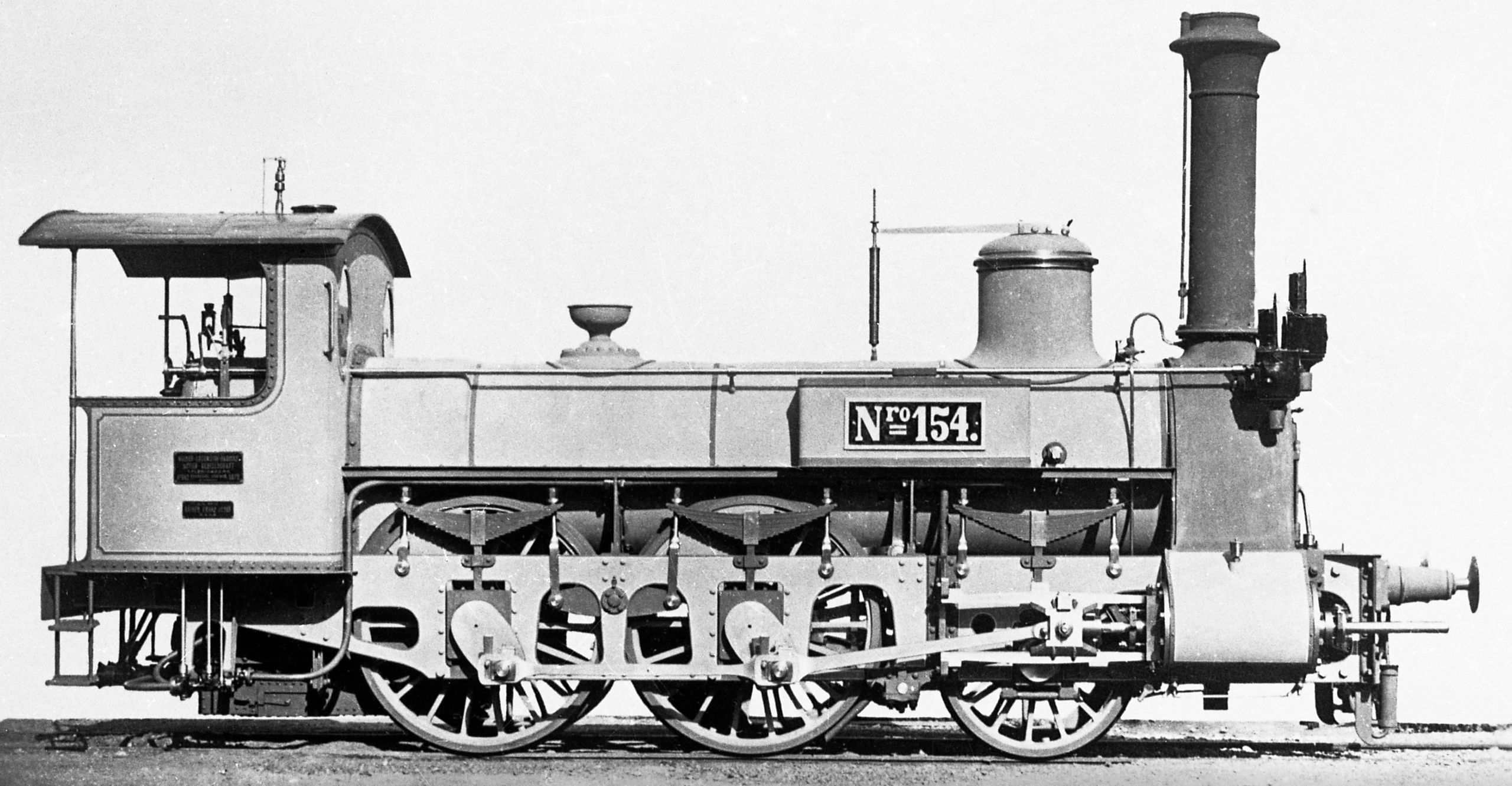

No. 154, later 26.22
No. 154, later 26.22

Between 1868 and 1872, Wiener Neustadt built 32 2-4-0 express locomotives for the KFJB. Only the first one received a name, “Johann Adolph”. They had drivers of 1,574 mm and a boiler with a grate area of 1.78 square meters. The cylinders measured 408 by 632 mm. 22 slightly heavier locomotives were built in 1873. Ten of these came from Wiener Neustadt and twelve from Floridsdorf. In 1884, the KFJB was nationalized and the kkStB took over all locomotives. All received new boilers between 1886 and 1895.

From 1904, the first 32 locomotives became class 24 and the 22 newer ones became class 26. 19 of the first variant and twelve of the later variant were withdrawn before World War I. During the war, one came to the Soviet Union and another one had to assist on the Vienna Stadtbahn. After the war, seven came to the BBÖ and two were originally intended for service in Poland. Ultimately, around 20 were taken over by the ČSD. With the new system from 1925, the surviving locomotives of the older variant became class 233.0 and the newer ones became class 233.1. The last ones were withdrawn in 1927.

Variant1-3233-50, 151-154Reboilered
General
Built1868-187218731890-1895
ManufacturerWiener NeustadtWiener Neustadt, Floridsdorf
Wheel arr.2-4-0 (Porter)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase11 ft 1 13/16 in11 ft 1 3/4 in
Rigid wheelbase11 ft 1 13/16 in11 ft 1 3/4 in
Total wheelbase33 ft 9 3/8 in34 ft 0 3/8 in
Empty weight67,682 lbs71,650 lbs
Service weight76,280 lbs80,910 lbs
Adhesive weight54,234 lbs57,320 lbs
Total weight132,939 lbs136,025 lbs137,127 lbs
Axle load27,117 lbs28,660 lbs
Water capacity2,510 us gal2,774 us gal
Fuel capacity11,023 lbs (coal)13,228 lbs (coal)
Boiler
Grate area19.2 sq ft17.5 sq ft
Firebox area86.1 sq ft85 sq ft
Tube heating area1,108.7 sq ft1,189.4 sq ft
Evaporative heating area1,194.8 sq ft1,274.4 sq ft
Total heating area1,194.8 sq ft1,274.4 sq ft
Variant1-3233-50, 151-154Reboilered
Power Plant
Driver diameter62 in
Boiler pressure130 psi145 psi
Expansion typesimple
Cylinderstwo, 16 1/16 x 24 7/8 in
Power
Power sourcesteam
Estimated power402 hp (300 kW)436 hp (325 kW)
Top speed37 mph
Starting effort11,492 lbf12,769 lbf
Calculated Values
steam locomotive
express
last changed: 07/2026

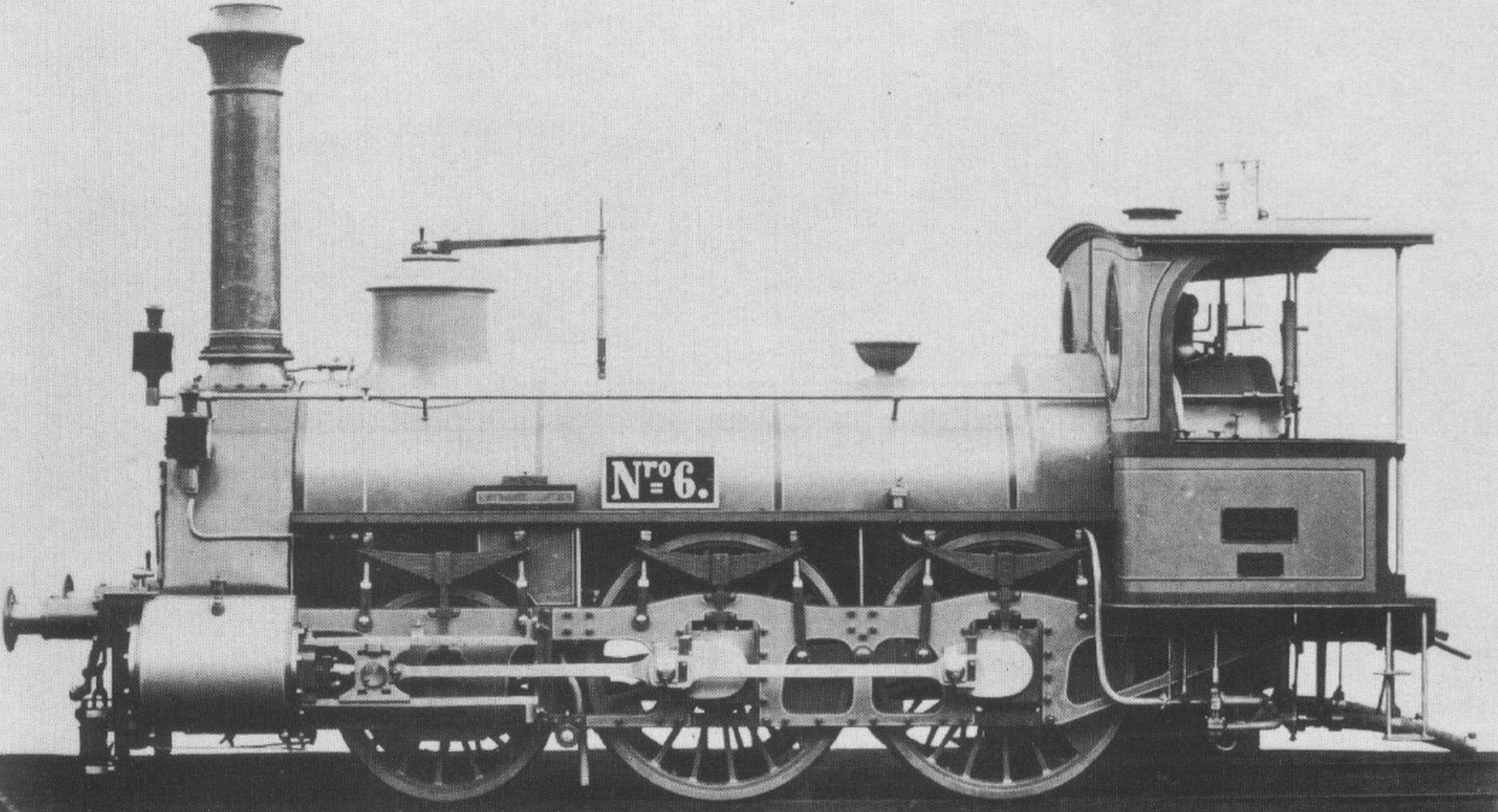

No. 6, later 24.06 and ČSD 233.001
No. 6, later 24.06 and ČSD 233.001
