Soviet Railways No. 6998
series 2-3-2В (2-3-2V)
go back
Sowietunion | 1938
only one produced

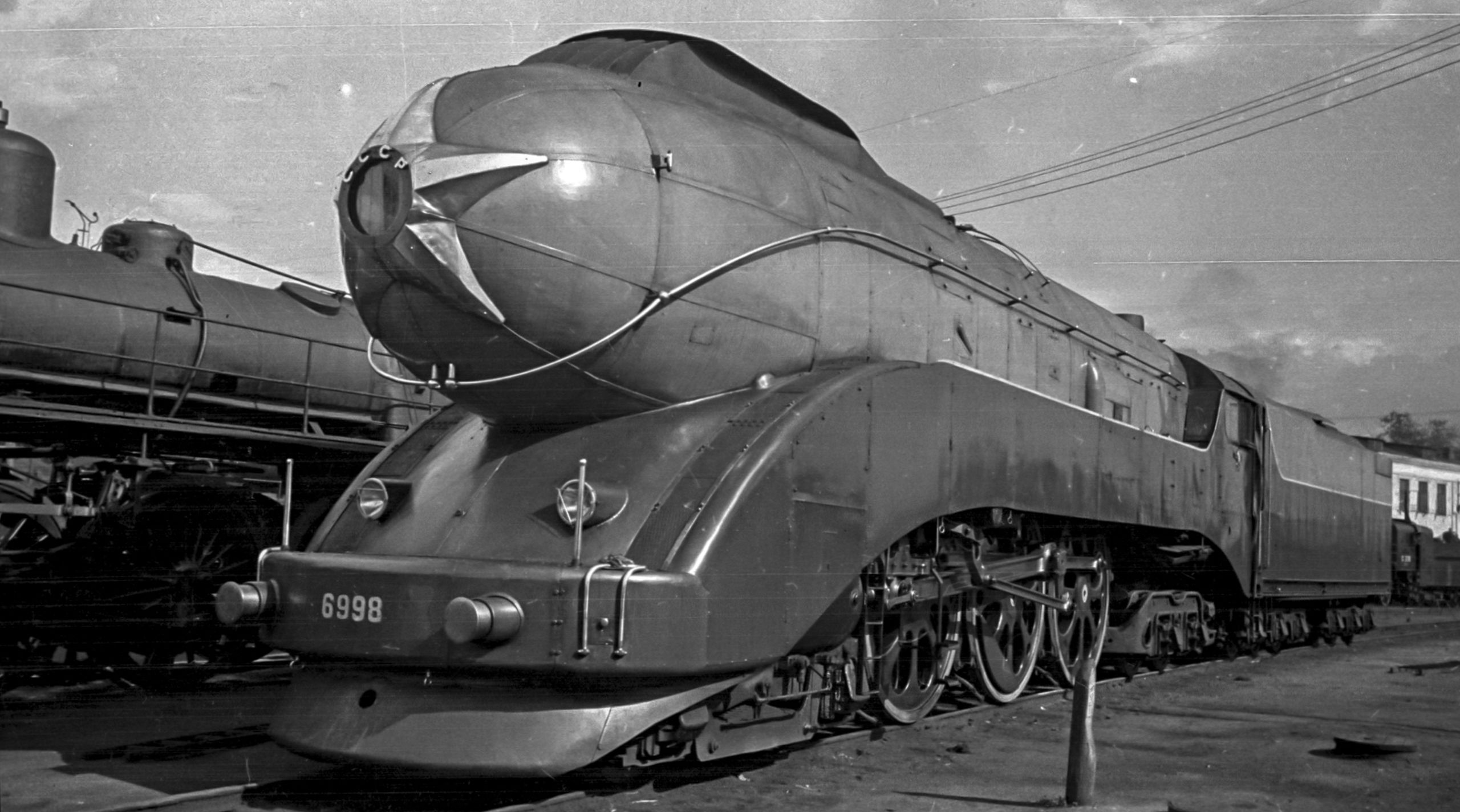

Image of locomotive

In the late thirties, the Soviet Railways tested several streamlined steam locomotives to increase the speed of express trains. One was No. 6998, designed by Dmitry Vasilyevich Lvov and built at Luhansk (Voroshilovgrad) in 1938. The goal was to develop a 4-6-4 with a design speed of 180 km/h and an output around 3,000 hp. Although it is today known as 2-3-2В where the В (V) stands for Voroshilovgrad, this designation was never used by the railway.

It was built in parallel to the 2-3-2К from Kolomna, but the 6998 used many parts from the FD and IS. Its main feature was the streamlining with a distinctive bullet nose. To save weight, one used high-strength steels and welded many parts. All axles had roller bearings and the drivers were disk wheels.

After it had been completed, it was first tested in the Ukraine and then entered regular service on the October railway between Moscow and St. Petersburg. On a specific run, it delivered an output of 3,400 hp on an incline. After the war, this streamlining was removed since the speeds of trains were now much lower. Anyway, it set the Soviet steam record with 175 km/h in 1957.

General
Built1938
ManufacturerLuhansk
Wheel arr.4-6-4 (Hudson)
Gauge4 ft 11 13/16 in (Russian broad gauge)
Dimensions and Weights
Length96 ft 4 11/16 in
Length loco55 ft 4 3/16 in
Wheelbase43 ft 1 15/16 in
Rigid wheelbase1 ft 7 5/16 in
Empty weight271,168 lbs
Service weight304,238 lbs
Adhesive weight142,198 lbs
Axle load47,399 lbs
Water capacity12,944 us gal
Fuel capacity48,502 lbs (coal)
Boiler
Grate area75.8 sq ft
Firebox area336.2 sq ft
Tube heating area2,330.1 sq ft
Evaporative heating area2,666.2 sq ft
Superheater area1,280.9 sq ft
Total heating area3,947.1 sq ft
Power Plant
Driver diameter86.6 in
Boiler pressure218 psi
Expansion typesimple
Cylinderstwo, 26 3/8 x 30 5/16 in
Power
Power sourcesteam
Indicated power2,950 hp (2,200 kW)
Starting effort45,043 lbf
Calculated Values
steam locomotive
express
streamline
