Federated Malay States class I
Malayan State Railway class 501
go back
Malaysia | 1907
31 produced

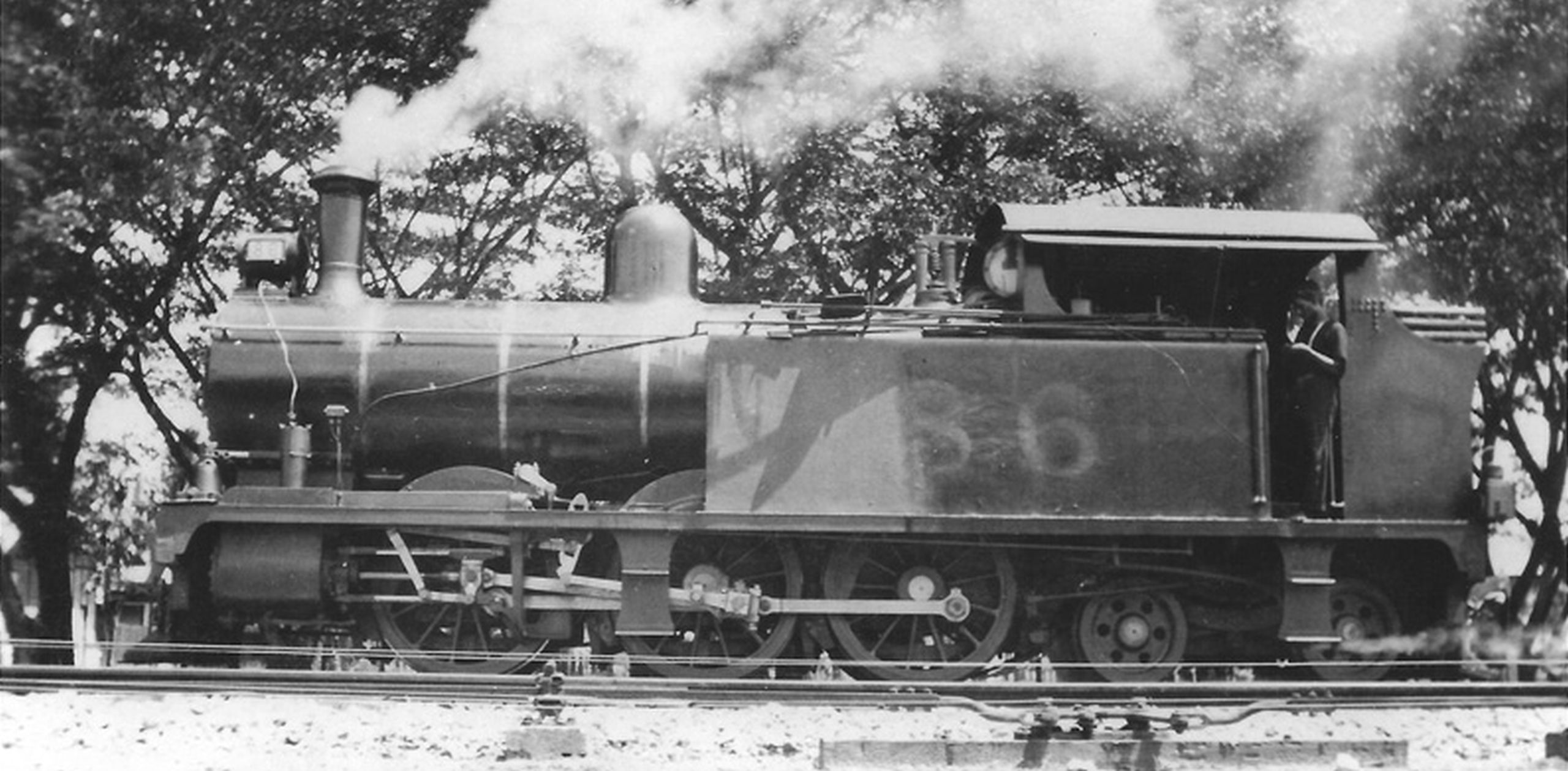

No. 86, built in 1908 by Kitson
No. 86, built in 1908 by Kitson
Stephenson Locomotive Society

The class I consisted of 31 0-6-4T tank locomotives built by three British manufacturers between 1907 and 1916. They had driving wheels with a diameter of four feet and four inches (1,321 mm) and cylinders of 14.5 by 20 inches (368 by 508 mm). The first five were built with 800-gallon water tanks by Kitson in 1907 and 1908, followed by three more from North British in 1912. Kitson delivered 18 more in 1913 which had tanks with a total capacity of 1,200 gallons. The last five came from Hawthorn Leslie in 1916.

Originally, they carried non-consecutive numbers. The first 13 were withdrawn between 1927 and 1940. In 1946 they became class 301, numbered 301.01 to 301.18. All were withdrawn between 1949 and 1953. In 1951 and 1953, one locomotive each was sold to Malayan Collieries.

General
Built1907-1916
ManufacturerKitson & Co., North British, Hawthorn, Leslie & Co.
Wheel arr.0-6-4T
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Wheelbase19 ft 9 in
Rigid wheelbase10 ft
Service weight100,128 lbs
Adhesive weight69,886 lbs
Water capacity961 us gal
Fuel capacitycoal
Boiler
Grate area13 sq ft
Firebox area87 sq ft
Tube heating area719 sq ft
Evaporative heating area806 sq ft
Total heating area806 sq ft
Power Plant
Driver diameter52 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 14 1/2 x 20 in
Power
Power sourcesteam
Starting effort12,372 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
freight
last changed: 03/2026

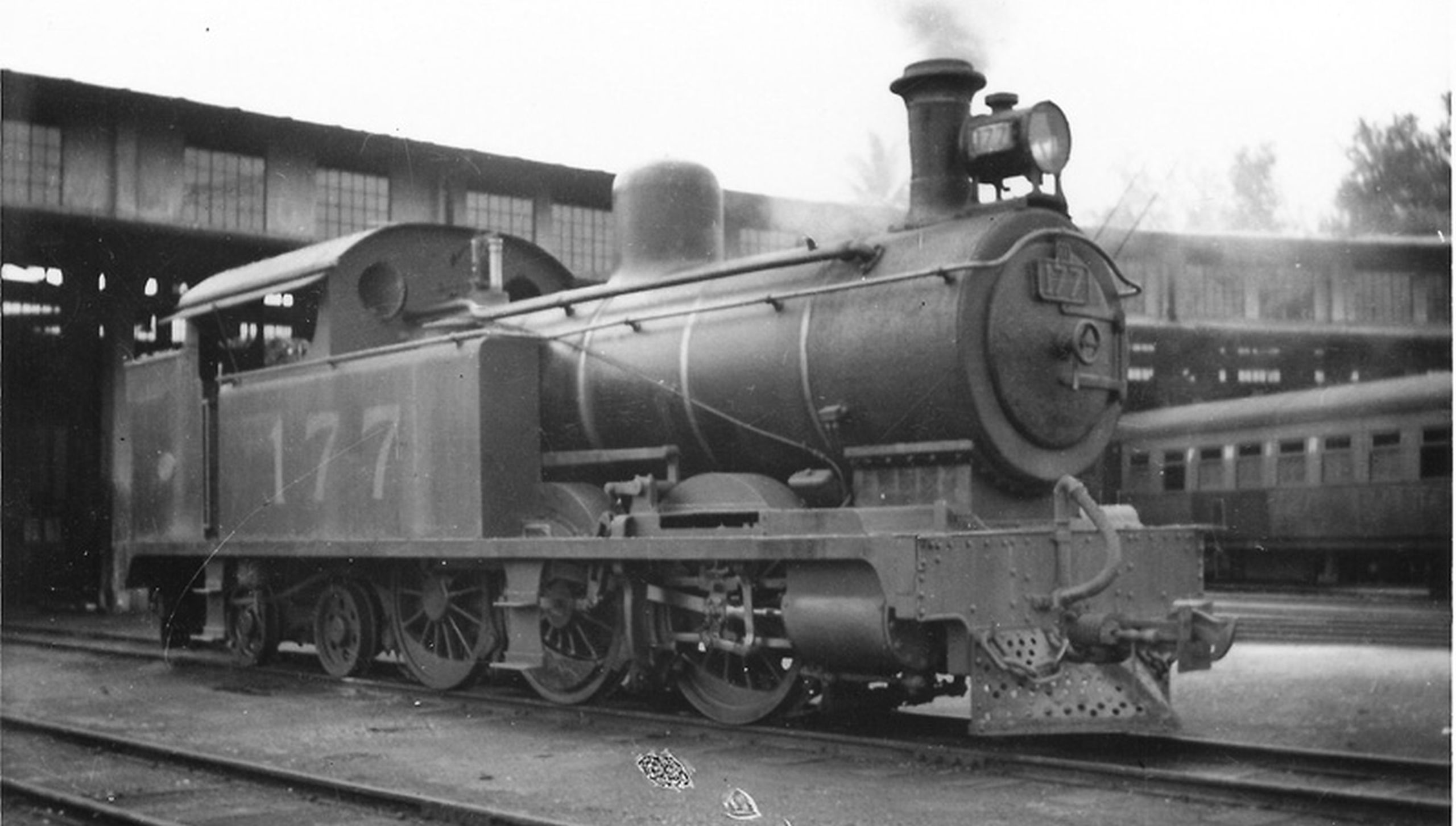

No. 177, built in 1916 by Hawthorn Leslie
