S.A. Ougrée-Marihaye No. 1 to 3
go back
Belgium | 1905
3 produced

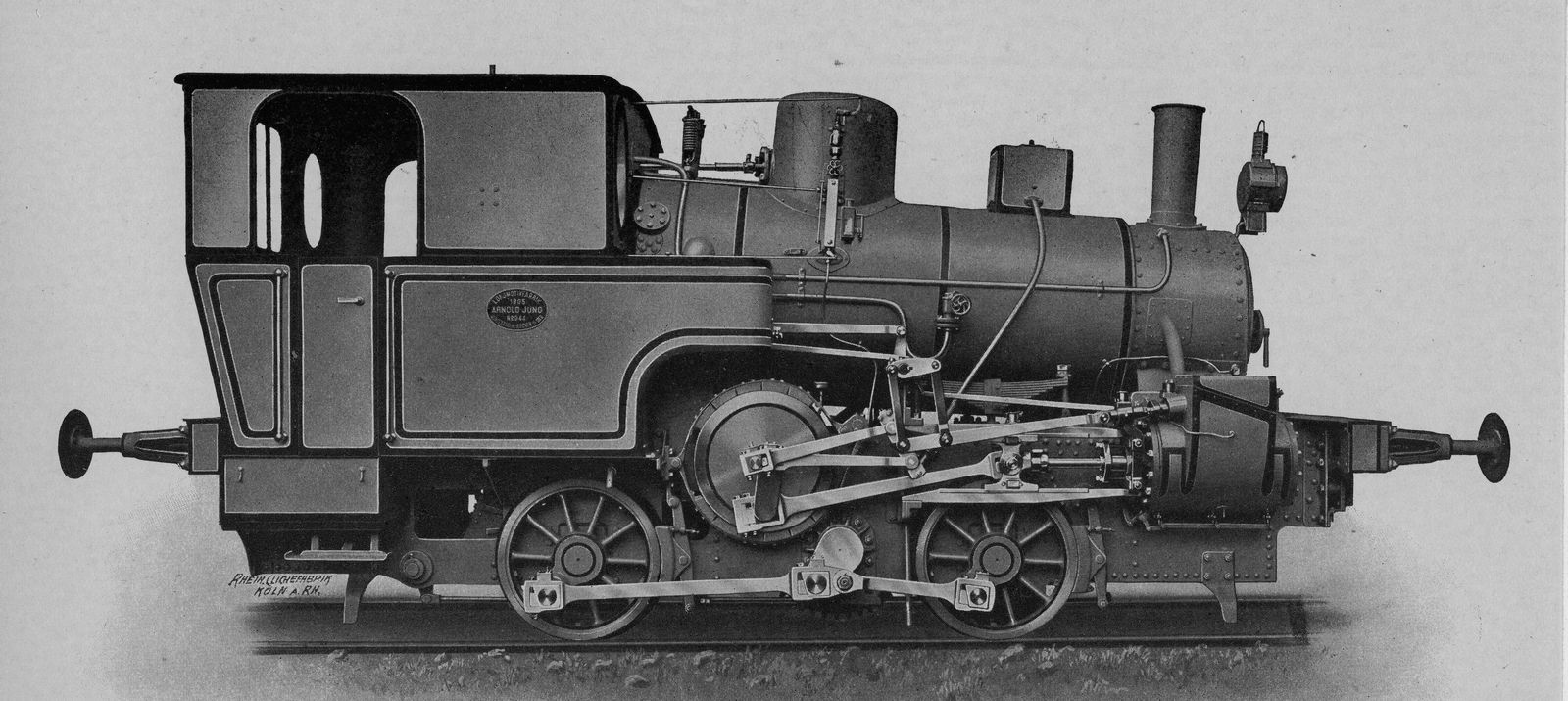

Image of locomotive
flickr/Historical Railway Images

In 1905 and 1906, Jung delivered three two-axle rack locomotives to the Société Anonyme d'Ougrée-Marihaye in Belguim that operated coal mines and steel works. The two locomotives built in 1905 had the works numbers 844 and 845, while the one built in the following year was number 928. They had an inclined boiler and operated the adhesion and Riggenbach rack drive with a crank axle. The power output was specified as 130 hp. All three were withdrawn around 1930. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1905-1906
ManufacturerJung
Wheel arr.0-4-0RT (Four-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Empty weight44,754 lbs
Service weight52,911 lbs
Fuel capacitycoal
Boiler
Power Plant
Expansion typesimple
Power
Power sourcesteam
Indicated power129 hp (96 kW)
Calculated Values
steam locomotive
tank locomotive
rack railway
freight
last changed: 10/2025
