FC Longitudinal Norte No. 18 “Palos Quemados”
go back
Chile | 1897
only one produced

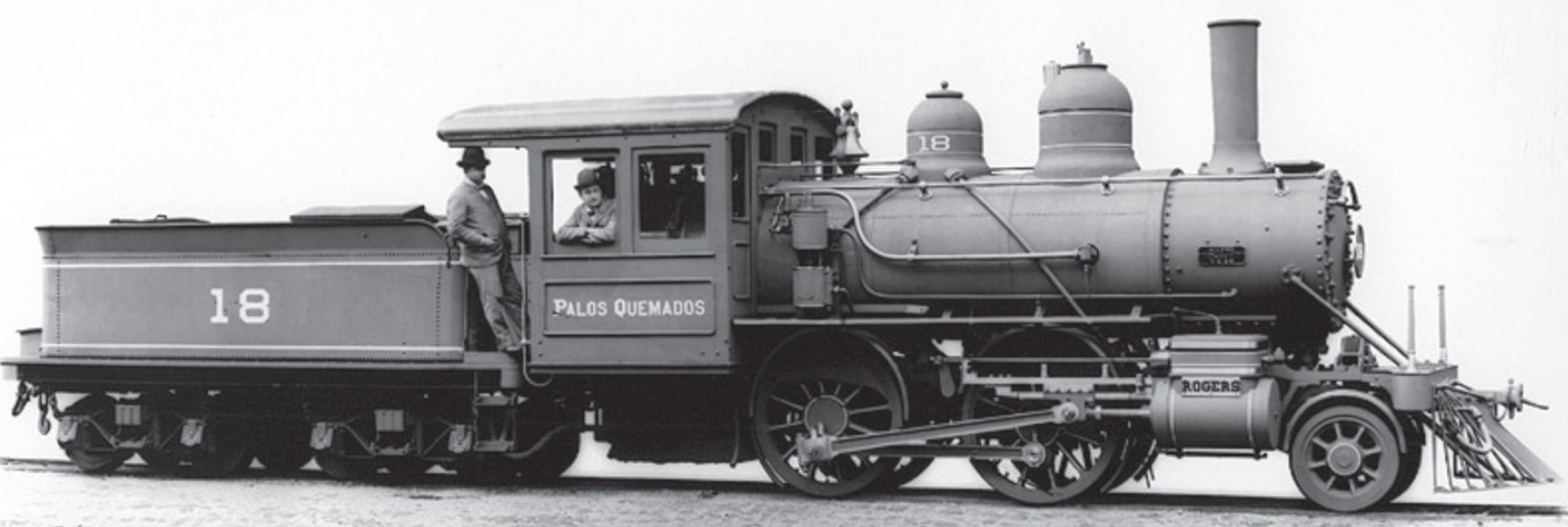

Image of locomotive
Martin Coombs / www.railwaysofthefarsouth.co.uk

This locomotive was ordered by W.R. Grace and delivered by Rogers in May 1897. It was part of the Chilean state's effort to create a metre-gauge longitudinal (north-south) line in the north of the country. Carrying the works number 5189, it was a 2-4-0 that was numbered 18 by its operator and named “Palos Quemados”. After the construction of the line was completed, it came to the Ferrocarriles Aislados. Later it was rebuilt into a 2-4-2 and became No. 298 of the Chilean State Railway.

General
Built1897
ManufacturerRogers
Axle config2-4-0 (Porter)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Fuel capacitycoal
Boiler
Power Plant
Driver diameter49.3 in
Expansion typesimple
Cylinderstwo, 14 x 18 in
Power
Power sourcesteam
Calculated Values
steam locomotive
freight
passenger
