Queensland Railways class 4D11½ Abt
go back
New Zealand | 1898
2 produced

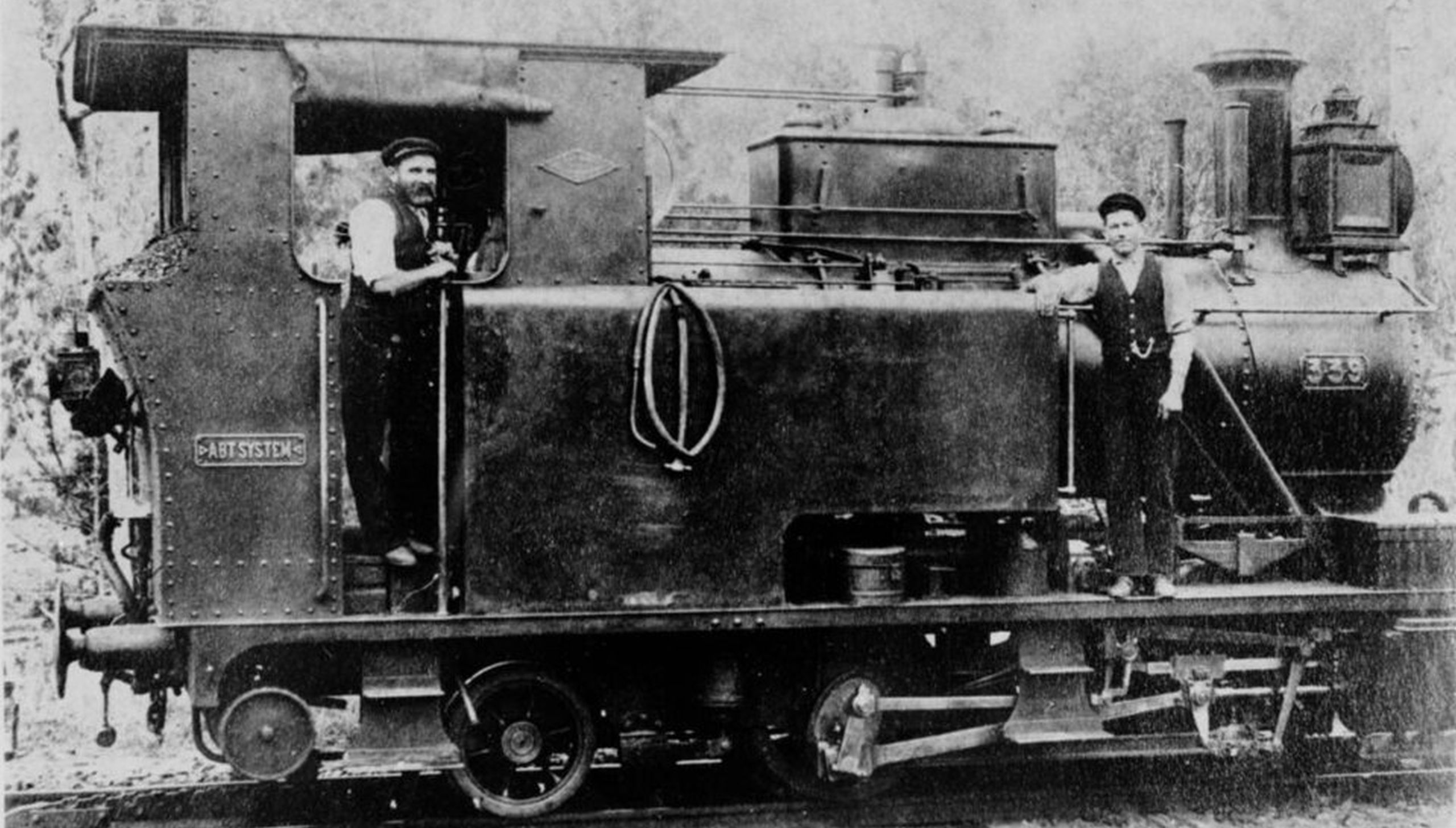

Image of locomotive
State Library of Queensland

In 1898, the Queensland Railways received two rack locomotives from Dübs. They were numbered 339 and 340 and were used on the line that led to the gold mines at Mount Morgan in the Dawson Valley. This had a section with an incline of 1 in 16 or 6.25 percent over nearly one and a half miles that had been equipped with an Abt rack rail. The locomotives had a 0-4-2RT wheel arrangement, four cylinders and a Le Chatelier counter pressure brake.

The class designation 4D11½ stood for four driving wheelstank locomotive and a cylinder diameter of 11½ inches. The boiler pressure was originally 175 psi, but was reduced to 150 psi to prevent slipping on the adhesion sections. Together with a B13 or B15 locomotive they could haul 80 tons up or down the 1 in 16 incline. They were pushed back into the second row already in 1900 when the more powerful 6D13½ Abt class was introduced. Their withdrawal years were 1916 and 1922.

General
Built1898
ManufacturerDübs & Co.
Wheel arr.0-4-2RT
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Service weight60,144 lbs
Adhesive weight45,024 lbs
Water capacity721 us gal
Fuel capacity1,680 lbs (coal)
Boiler
Grate area11.3 sq ft
Power Plant
Driver diameter36 in
Boiler pressure175 psi
Expansion typesimple
Cylindersfour, adhesion: 11 1/2 x 20 in
rack: 11 1/2 x 15 1/2 in
Power
Power sourcesteam
Starting effort12,720 lbf
Calculated Values
steam locomotive
passenger
freight
tank locomotive
rack railway
