Donetz Railway A1 to A11
go back
Russian Empire | 1878
11 produced

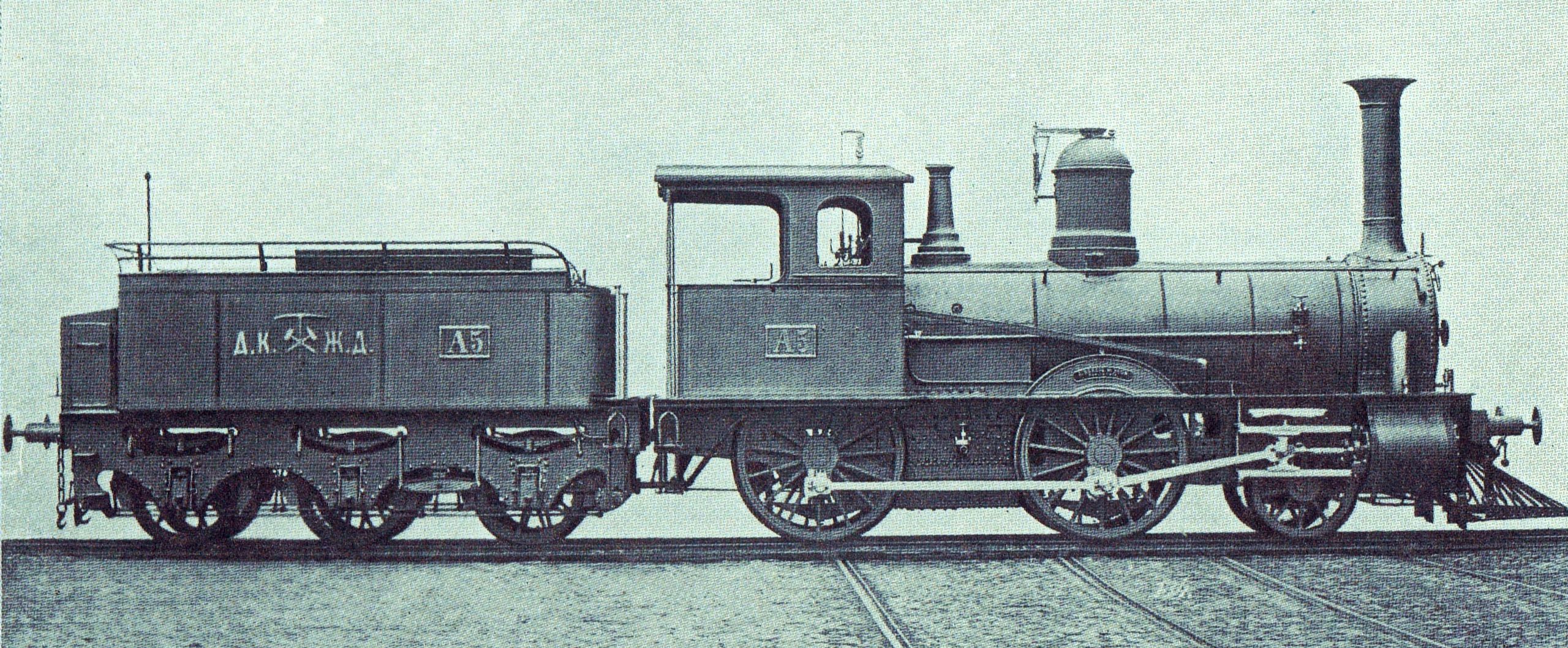

Image of locomotive
Borsig locomotives catalogue, 1898

In 1878, Borsig built eleven 2-4-0 passenger locomotives for the Donetz Railway in the Russian Empire, in the part that is now the contested part of Eastern Ukraine. They had drivers with a diameter of 1,600 mm and cylinders of 410 by 560 mm. In these dimensions, and also in the boiler heating surfaces, it was fairly similar to the Prussian P 1 that was also built by Borsig. Up to the year that followed the delivery of these locomotives, Borsig had delivered a total of 3,700 locomotives, of which 718, the second largest portion, had gone to Russia.

General
Built1878
ManufacturerBorsig
Wheel arr.2-4-0 (Porter)
Gauge4 ft 11 13/16 in (Russian broad gauge)
Dimensions and Weights
Empty weight67,902 lbs
Service weight74,957 lbs
Total weight125,663 lbs
Water capacity2,153 us gal
Fuel capacity14,330 lbs (coal)
Boiler
Grate area18.5 sq ft
Evaporative heating area1,009.9 sq ft
Total heating area1,009.9 sq ft
Power Plant
Driver diameter63 in
Boiler pressure145 psi
Expansion typesimple
Cylinderstwo, 16 1/8 x 22 1/16 in
Power
Power sourcesteam
Estimated power402 hp (300 kW)
Starting effort11,240 lbf
Calculated Values
steam locomotive
passenger
