Army Field Railway Brigadelokomotive
German Reichsbahn class 99331, Polish State Railways Tx1 and Tx2, Hungarian State Railways class 498 and Lithuanian series K4
Germany | 1903
2,573 produced

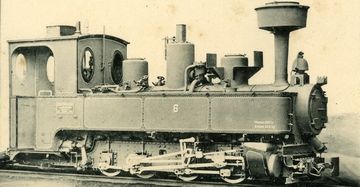

Brigadelokomotive built by Hartmann in Chemnitz on a postcard
Brigadelokomotive built by Hartmann in Chemnitz on a postcard
Brück & Sohn Kunstverlag Meißen

The Brigadelokomotive was a 0-8-0T tank locomotive built for the German military field railways with a gauge of 600 mm (nearly two feet). It was designed at the beginning of the 20th century when it became evident that the 0-6-0+0-6-0T “Zwilling” was not powerful enough anymore. The first prototype was completed by Henschel in 1903, followed by a low volume production starting in 1905.

The locomotives had outside frames, outside cylinders and outside Stephenson valve gear. To enable running through tight curves, the first and last axles were Klien-Lindner hollow axles which could be adjusted radially. Later these were exchanged on some locomotives for conventional axles with weakened wheel flanges. With an indicated power of 75 hp, they could haul 70 tonnes with 15 km/h. Due to the limited water capacity of 1,100 liters, additional tenders were built with a capacity of up to 5,000 liters of water and 1.2 tonnes of coal.

Large-scale production only started in World War I, but at a large number of manufacturers. When production was completed in 1919, more than 2,500 had been built. With 789, the largest number had come from Henschel. Second and third were Borsig with 377 and O&K with 359. After the end of the war, they came to a large number of civil operators in many countries. Today, around 100 are still existing all around the world.

General
Built1903-1919
ManufacturerBMAG, Borsig, Esslingen, Hanomag, Hartmann, Henschel, Hohenzollern, Humboldt, Jung, Krauss, Linke-Hofmann, Maffei, O&K, SACM, Vulcan
Axle config0-8-0T (Eight-coupled)
Gauge1 ft 11 5/8 in
Dimensions and Weights
Length19 ft 7 7/16 in
Wheelbase7 ft 5 in
Rigid wheelbase2 ft 6 7/8 in
Empty weight21,385 lbs
Service weight26,455 lbs
Adhesive weight26,455 lbs
Axle load6,614 lbs
Water capacity291 us gal
Fuel capacity661 lbs (coal)
Boiler
Grate area4.5 sq ft
Firebox area16.1 sq ft
Tube heating area160.4 sq ft
Evaporative heating area176.5 sq ft
Total heating area176.5 sq ft
Power Plant
Driver diameter23.62 in
Boiler pressure218 psi
Expansion typesimple
Cylinderstwo, 9 7/16 x 9 7/16 in
Power
Power sourcesteam
Indicated power74 hp (55 kW)
Top speed16 mph
Starting effort6,606 lbf
Calculated Values
Optimal speed7 mph
steam locomotive
narrow gauge
tank locomotive
field railway
military railway
last changed: 01/2025
View on YouTube
Austrian Federal Railways (BBÖ) class 478
Austrian Federal Railways class 392
Austria | 1926
50 produced

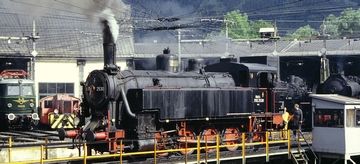

ÖBB 392.2530 at the Selzthal Steam Locomotive Festival 1993
ÖBB 392.2530 at the Selzthal Steam Locomotive Festival 1993
Herbert Ortner
General
Built1926-1927
ManufacturerFloridsdorf, Wiener Neustadt, StEG
Axle config0-8-0T (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length36 ft 7 3/4 in
Wheelbase13 ft 9 3/8 in
Rigid wheelbase13 ft 9 3/8 in
Service weight141,096 lbs
Adhesive weight141,096 lbs
Axle load35,274 lbs
Water capacity2,642 us gal
Fuel capacity5,512 lbs (coal)
Boiler
Grate area21.5 sq ft
Firebox area104.4 sq ft
Tube heating area1,088.2 sq ft
Evaporative heating area1,192.6 sq ft
Superheater area325.6 sq ft
Total heating area1,518.2 sq ft
Power Plant
Driver diameter44.88 in
Boiler pressure203 psi
Expansion typesimple
Cylinderstwo, 20 7/8 x 22 7/16 in
Power
Power sourcesteam
Estimated power905 hp (675 kW)
Top speed25 mph
Starting effort37,582 lbf
Calculated Values
Optimal speed15 mph
steam locomotive
switcher
tank locomotive
Baden X b
German Reichsbahn class 922-3
Germany | 1907
98 produced

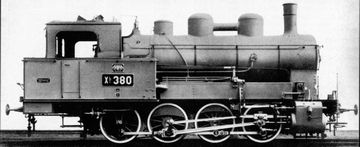

Factory photo of MBG Karlsruhe No. 380 around 1908
Factory photo of MBG Karlsruhe No. 380 around 1908

The second locomotive with the designation X b was a eight-coupled shunting locomotive, which was built between 1907 and 1921 in several series by the Karlsruhe Engineering Company and Maffei. It must not be confused with the six-coupled tender locomotive, which was procured as X b from 1863 and designated as VII b from 1868. The reason for the procurement was the fact that the previously existing shunting locomotives with only three coupled axles were now overstrained due to the trains weighing up to 1,300 tonnes.

A few years earlier they experimented with the VIII d, which had the wheel arrangement 0-8-0T, but with a complicated Hagans gear. Their chassis was divided into two groups, only the first of which was directly driven. The two rear axles were driven by rocker arms, which required a lot of maintenance and led to the development of the X b.

The new design had a conventional saturated two-cylinder engine and chassis with the second and fourth axles shifting 25 mm to each side. Although the locomotive was only developed for shunting service, it received air brakes and steam heating for passenger cars. The high position of the boiler, with which the firebox could be arranged above the frame, is clearly visible. This resulted in space for the water supplies under the boiler and between the frame panels, which improved the view to the front. Another striking feature are the two steam domes, which were connected by a pipe and with which one hoped greater elasticity under different operating conditions. With the power thus achieved, it was possible to haul trains of 720 tonnes at its maximum speed of 45 km/h.

Of the 98 machines built, the Reichsbahn took over 90 in 1925, which they designated as class 922-3. The remaining eight came to Belgium as reparations immediately after completion. After the Second World War, 82 were still available, two of which went to the Reichsbahn. Since these could not be used economically, they were sold and used as works locomotives. With the 80 machines of the Bundesbahn, the decommissioning began in the mid-fifties, until on April 25, 1966 the last one ended its service.

Variant1907 variant1914 variant1921 variant
General
Built1907-19131914-19201921
ManufacturerMBG Karlsruhe, Maffei
Axle config0-8-0WT (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length34 ft 11 5/16 in35 ft 1 in
Wheelbase14 ft 3 1/4 in
Rigid wheelbase14 ft 3 1/4 in
Empty weight95,901 lbs97,444 lbs97,003 lbs
Service weight128,088 lbs128,309 lbs128,088 lbs
Adhesive weight128,088 lbs128,309 lbs128,088 lbs
Axle load31,967 lbs32,077 lbs31,967 lbs
Water capacity1,849 us gal
Fuel capacity5,512 lbs (coal)
Boiler
Grate area18.8 sq ft
Firebox area83.5 sq ft88.6 sq ft
Tube heating area1,102.5 sq ft
Evaporative heating area1,186.1 sq ft1,191.1 sq ft
Total heating area1,186.1 sq ft1,191.1 sq ft
Variant1907 variant1914 variant1921 variant
Power Plant
Driver diameter49.69 in
Boiler pressure188 psi
Expansion typesimple
Cylinderstwo, 18 7/8 x 24 13/16 in
Power
Power sourcesteam
Indicated power493 hp (368 kW)
Top speed28 mph
Starting effort28,565 lbf
Calculated Values
Optimal speed11 mph
steam locomotive
switcher
tank locomotive
last changed: 01/2022
Sectional drawing
Sectional drawing
Die Lokomotive, Oktover 1910
Bavarian and Palatinate Railways R 4/4
Germany | 1913
51 produced

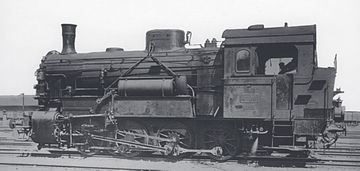

No. 4180 in the transitional period to the Reichsbahn, here still with Länderbahn markings
No. 4180 in the transitional period to the Reichsbahn, here still with Länderbahn markings
Oberreichsbahnrat Dr. Ing. Rudolf Kallmünzer

The R 4/4 was a tank locomotive for heavy shunting service, which was built in small numbers for the Pfalzbahn from 1913 and was later procured in larger numbers by the Bavarian State Railways. Although they worked with saturated steam, they proved their efficiency and were able to survive into the Bundesbahn era. The boiler with a relatively large diameter was placed very high in order to be able to accommodate a generously dimensioned and wide but not too long firebox above the coupled wheels. The water tank was therefore installed below the boiler, since there was now more space than on the sides.

Production for the Pfalzbahn included nine engines that were completed in 1913 and 1914. There they were mainly used for shunting over longer distances, as they could reach a maximum speed of 45 km/h on the flat with trains of up to 1,000 tonnes.

Between 1918 and 1925, Bavaria procured another 42 engines, which in terms of performance hardly differed from the Palatinate type. However, they had additional water tanks on the sides of the boiler, which increased the water supply to up to nine cubic meters. In addition, the steam dome and the sandbox were now arranged separately from each other and were no longer located under a common cover on the top of the boiler. In 1925, the Reichsbahn took over all but two machines and gave them the numbers 92 2001 to 92 2049. The remaining two had been handed over to Saarland in 1921 and only returned in 1935. After the Second World War, almost all of the examples remained with the Bundesbahn, which used them in the Palatinate and Bavaria. The last one was retired in 1962.

General
Built1913-1914, 1918-1925
ManufacturerKrauss
Axle config0-8-0T (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length36 ft 2 3/4 in
Wheelbase14 ft 9 3/16 in
Rigid wheelbase14 ft 9 3/16 in
Service weight147,489 lbs
Adhesive weight147,489 lbs
Axle load37,258 lbs
Water capacity1,981 us gal
Fuel capacity4,409 lbs (coal)
Boiler
Grate area21.5 sq ft
Evaporative heating area1,346.6 sq ft
Total heating area1,346.6 sq ft
Power Plant
Driver diameter47.87 in
Boiler pressure174 psi
Expansion typesimple
Cylinderstwo, 20 7/8 x 25 9/16 in
Power
Power sourcesteam
Indicated power562 hp (419 kW)
Top speed28 mph
Starting effort34,422 lbf
Calculated Values
Optimal speed10 mph
steam locomotive
switcher
tank locomotive
last changed: 01/2022
Bavarian GtL 4/4
German Reichsbahn classes 988-9 and 9816
Germany | 1911
121 produced
Image of locomotive
Krauss

The GtL 4/4 was a local railway locomotive for freight traffic with four coupled axles. Although the first were built as early as 1911, the majority of this class was procured during the period of the Deutsche Reichsbahn. In contrast to the previously procured BB II, the chassis no longer contained a bogie, but all axles were mounted in one frame. The Gölsdorf system was used to run through tight curves and the second and third axles were designed with lateral movement. This made maintenance easier and also made two of the four cylinders superfluous, which proved to be a great advantage, especially on local railways. The use of superheated steam, which was already state of the art at that time, also contributed to reducing operating costs.

After two pre-production locomotives in 1911, another batch was created in 1914, which also comprised only eleven locomotives. From 1921, more locomotives of this type were procured for the Bavarian group administration of the Reichsbahn, with the first 40 being improved in detail and somewhat heavier. Of these, the LAG procured two identical vehicles. Another 64 locomotives followed between 1923 and 1927, which had a further increased weight, which could be attributed to increased supplies. When they were put into service, they were given the new Reichsbahn numbers which had also been added later on the older locomotives. Overall, the locomotives which were procured for Bavaria and the Reichsbahn were assigned the numbers 98 801 to 98 917. Deviating from this, the LAG locomotives were renumbered 98 1601 and 98 1602 when they were taken over in 1938.

In the years between 1934 and 1941, 29 locomotives were rebuilt to a 2-8-0 wheel arrangement by equipping them with a front Bissel axle. The boiler and cab were moved forward to improve weight distribution. These were allowed to run at 55 km/h and were designated class 9811. With the exception of eight that were lost in the war or remained in Poland, all of the unrebuilt locomotives came to the Bundesbahn. From the mid-1950s, withdrawals began, so that only two were given a computer number in 1968. The locomotives of the class 9811 all survived the war and only one came to the Reichsbahn, all the others to the Bundesbahn. Their service life ended between 1960 and 1968.

Variant1911 variant1921 variant
General
Built1911, 19141921-1927
ManufacturerKrauss
Axle config0-8-0T (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length30 ft 10 1/16 in30 ft 4 3/16 in
Service weight94,799 lbs102,956 lbs
Adhesive weight94,799 lbs102,956 lbs
Axle load23,810 lbs26,896 lbs
Water capacity1,427 us gal
Fuel capacity3,968 lbs (coal)
Boiler
Grate area14.6 sq ft
Firebox area63 sq ft
Tube heating area593.5 sq ft
Evaporative heating area656.5 sq ft
Superheater area203.8 sq ft
Total heating area860.3 sq ft
Variant1911 variant1921 variant
Power Plant
Driver diameter39.61 in
Boiler pressure174 psi
Expansion typesimple
Cylinderstwo, 18 1/8 x 20 in
Power
Power sourcesteam
Indicated power444 hp (331 kW)
Top speed25 mph
Starting effort24,495 lbf
Calculated Values
Optimal speed12 mph
steam locomotive
freight
tank locomotive
local railway
last changed: 01/2022
Operational road number 98 668 of the Fladungen Museum Railway Association in May 2010
Operational road number 98 668 of the Fladungen Museum Railway Association in May 2010
Sigismund von Dobschütz
ELNA 6
German Reichsbahn classes 9229 and 9264 and French State Railway 040 TX
Germany | 1922
116 produced

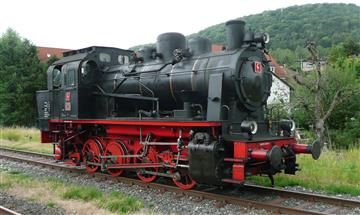

No. 4 of the Dampfbahn Fränkische Schweiz at Ebermannstadt
No. 4 of the Dampfbahn Fränkische Schweiz at Ebermannstadt
Rainer Haufe

In the twenties, the ELNA (Engerer Lokomotiv-Normen-Ausschuß - Special locomotive standards committee) designed a range of standard locomotives to be built for private and light railways. The ELNA 6 was the heaviest of these types and had the wheel arrangement 0-8-0T. With a top speed of 40 km/h, it was intended for all kinds of traffic on secondary lines and also for shunting. With a wheelbase of less than 4.5 meters, it did not need axles with lateral play.

Between 1922 and 1946, a total of 116 were built by different manufacturers since they were included in the war locomotive program as KDL 4. In this context, also Schneider of Le Creusot in France had to manufacture these and also continued production after the war for a total of 67. Thanks to the liberation of France, all 67 could stay in the country, came to the SNCF and were designated 040 TX.

In Germany, there was a total of four different variants. The standard type was offered in a cheaper saturated and a more powerful superheated variant, called ELNA 6 N and ELNA 6 H. Krauss of Munich could realize a cheaper production by using tooling already existing for other locomotives, so the seven locomotives resembled some other types which were in use in Bavaria. They also had larger side water tanks instead of the well tanks of the standard variant and were heavier. Additionally, seven of the locomotives produced by Henschel were of an augmented type that had a higher boiler pressure, larger cylinders and a larger superheater. These also had side tanks and were even heavier than the Krauss type. Later some got wheels with a diameter of 1.200 instead of 1.100 mm.

As the customers were private and light railways, most of them only got one to three locomotives. The largest customer was the Halle-Hettstedt Railway Company that got seven of which four came from Krauss. After the war, the West German locomotives remained in private ownership, while the East German ones were taken over by the Reichsbahn. Most were put into class 9264, but three with a counter-pressure brake became class 9229. Today three are preserved.

VariantELNA 6 NELNA 6 HKraussaugmented
General
Built1922-1946
ManufacturerBMAG, Fablok, Hanomag, Hohenzollern, O&K, VulcanKraussHenschel
Axle config0-8-0T (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length35 ft 5 3/16 in34 ft 5 3/8 in35 ft 1 5/8 in
Wheelbase14 ft 1 5/16 in13 ft 3 7/16 in14 ft 0 7/8 in
Rigid wheelbase14 ft 1 5/16 in13 ft 3 7/16 in14 ft 0 7/8 in
Empty weight92,594 lbs95,240 lbs101,192 lbs115,522 lbs
Service weight119,049 lbs121,695 lbs129,632 lbs143,080 lbs
Adhesive weight119,049 lbs121,695 lbs129,632 lbs143,080 lbs
Axle load29,762 lbs30,424 lbs32,187 lbs35,715 lbs
Water capacity1,585 us gal1,717 us gal
Fuel capacity4,079 lbs (coal)4,409 lbs (coal)
Boiler
Grate area19.8 sq ft21.5 sq ft23.6 sq ft
Firebox area96.3 sq ft
Tube heating area1,014 sq ft
Evaporative heating area1,259.4 sq ft948.3 sq ft1,110.3 sq ft1,078.5 sq ft
Superheater area333.7 sq ft331.5 sq ft398.3 sq ft
Total heating area1,259.4 sq ft1,282 sq ft1,441.8 sq ft1,476.8 sq ft
VariantELNA 6 NELNA 6 HKraussaugmented
Power Plant
Driver diameter43.31 in47.24 in
Boiler pressure174 psi188 psi
Expansion typesimple
Cylinderstwo, 18 7/8 x 21 5/8 intwo, 20 1/2 x 21 5/8 intwo, 19 11/16 x 21 5/8 intwo, 21 5/8 x 21 5/8 in
Power
Power sourcesteam
Estimated power671 hp (500 kW)771 hp (575 kW)838 hp (625 kW)905 hp (675 kW)
Top speed25 mph
Starting effort26,411 lbf30,993 lbf28,656 lbf34,435 lbf
Calculated Values
Optimal speed16 mph19 mph17 mph
steam locomotive
passenger
freight
tank locomotive
secondary line
last changed: 12/2024
No. 104 of the Halle-Hettstedt railway on a Krauss factory photo
No. 104 of the Halle-Hettstedt railway on a Krauss factory photo
Krauss
French State Railway (État) No. 40-001 to 143
French State Railway 3-040 TA 1 to 143
France | 1914
143 produced

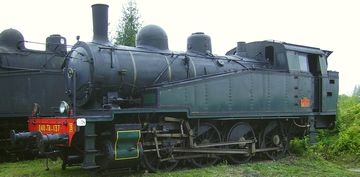

SNCF 040 TA 137 in September 2006 at Longueville
SNCF 040 TA 137 in September 2006 at Longueville
Didier Duforest
General
Built1914, 1920-1922
ManufacturerANF Blanc-Misseron, Schneider, Fives-Lille, Sotteville
Axle config0-8-0T (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length35 ft 7 9/16 in
Wheelbase14 ft 9 3/16 in
Rigid wheelbase14 ft 9 3/16 in
Service weight138,450 lbs
Adhesive weight138,450 lbs
Axle load34,613 lbs
Water capacity1,849 us gal
Fuel capacity6,614 lbs (coal)
Boiler
Grate area19.4 sq ft
Firebox area88.3 sq ft
Tube heating area1,095.8 sq ft
Evaporative heating area1,184 sq ft
Total heating area1,184 sq ft
Power Plant
Driver diameter51.18 in
Boiler pressure174 psi
Expansion typesimple
Cylinderstwo, 18 7/8 x 23 5/8 in
Power
Power sourcesteam
Estimated power536 hp (400 kW)
Top speed31 mph
Starting effort24,379 lbf
Calculated Values
Optimal speed14 mph
steam locomotive
freight
tank locomotive
German Reichsbahn class 81
Germany | 1928
10 produced

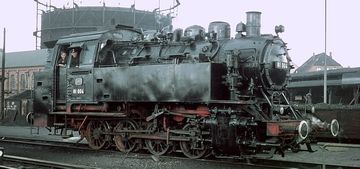

81 004 in August 1961
81 004 in August 1961
Herbert Schambach / www.bundesbahnzeit.de

From 1927, the class 80 was the smallest model in the standard locomotive program. It was a tank locomotive with a 0-6-0T wheel arrangement, which was mainly used in shunting operations. However, since this was too weak for some tasks, a 0-8-0T variant was developed as the class 81. Due to the standard design, this was possible without much effort and so Hanomag produced a small batch of ten units as early as 1928.

The length that had been increased by the fourth axle and the now possible higher weight were used by lengthening the boiler by one meter. Since the locomotive was still to be used mainly as a shunting locomotive and therefore no higher speeds were required, the wheel diameter was left at 1,100 mm to achieve a high tractive effort. To ensure good curve running, the wheel flanges on both inner axles were weakened by 10 mm.

Although the standard locomotives had been developed as a replacement for the large variety of Länderbahn types, the many existing larger tank locomotives were considered sufficient for shunting operations and further orders were therefore not forthcoming for the time being. When another lot of 60 units was ordered, the war shifted the demand to heavy freight locomotives and thus the number of members in the class 81 remained at ten. After the war, all remained with the Bundesbahn and were retired by 1963.

General
Built1928
ManufacturerHanomag
Axle config0-8-0T (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length36 ft 4 1/4 in
Wheelbase13 ft 9 3/8 in
Rigid wheelbase13 ft 9 3/8 in
Empty weight114,640 lbs
Service weight148,812 lbs
Adhesive weight148,812 lbs
Axle load37,258 lbs
Water capacity2,113 us gal
Fuel capacity6,614 lbs (coal)
Boiler
Grate area19.2 sq ft
Firebox area82.9 sq ft
Tube heating area949.4 sq ft
Evaporative heating area1,032.3 sq ft
Superheater area355.2 sq ft
Total heating area1,387.5 sq ft
Power Plant
Driver diameter43.31 in
Boiler pressure203 psi
Expansion typesimple
Cylinderstwo, 19 11/16 x 21 5/8 in
Power
Power sourcesteam
Indicated power849 hp (633 kW)
Top speed28 mph
Starting effort33,449 lbf
Calculated Values
Optimal speed16 mph
steam locomotive
switcher
tank locomotive
last changed: 04/2022
Great Northern (UK) No. 472 and 473
Great Britain | 1866
2 produced

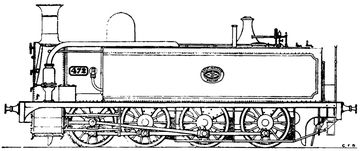

Image of locomotive
Locomotive Magazine, February 1899

The Great Northern needed new locomotives to accommodate the growing freight traffic on the Metropolitan Line between King's Cross and the goods yards between Farringdon Street and Ludgate Hill. The particular challenges were gradients of up to 1 in 35, tight curves and several tunnels. Two locomotives were therefore ordered from Avonside in 1866, based on two others that had been built for the Vale of Neath Railway.

With four coupled axles they were exceptionally strong by British standards at the time. In order to be able to drive through the tight curves, the first and last axles could each be moved laterally by 5/8 inch and were reset by springs. Because of the tunnels they had a condenser. However, as they turned out to be too large for the Metropolitan Line, it is unclear how long they were actually used there in the time until they were scrapped in 1880.

General
Built1866
ManufacturerAvonside
Axle config0-8-0T (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase15 ft 10 in
Rigid wheelbase5 ft 5 in
Service weight125,440 lbs
Adhesive weight125,440 lbs
Axle load31,360 lbs
Fuel capacitycoal
Boiler
Grate area17 sq ft
Firebox area100 sq ft
Tube heating area1,450.1 sq ft
Evaporative heating area1,550.1 sq ft
Total heating area1,550.1 sq ft
Power Plant
Driver diameter42 in
Boiler pressure150 psi
Expansion typesimple
Cylinderstwo, 18 1/2 x 24 in
Power
Power sourcesteam
Estimated power425 hp (317 kW)
Starting effort24,935 lbf
Calculated Values
Optimal speed11 mph
steam locomotive
tank locomotive
freight
condensator
Archibald Sturrock
last changed: 12/2023
Henschel D 600
Germany | 1946
53 produced

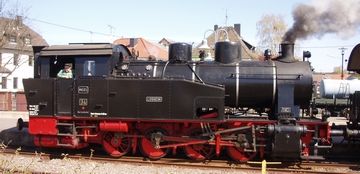

Former “Saarberg 34” of the Losheim Museum Railway Club in April 2007
Former “Saarberg 34” of the Losheim Museum Railway Club in April 2007
-Xocolatl
Variantsaturatedsuperheated
General
Built1946-1954
ManufacturerHenschel
Axle config0-8-0T (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length36 ft 2 in
Service weight142,198 lbs
Adhesive weight142,198 lbs
Axle load35,494 lbs
Water capacity1,585 us gal
Fuel capacity5,512 lbs (coal)
Boiler
Variantsaturatedsuperheated
Power Plant
Driver diameter43.31 in
Boiler pressure203 psi
Expansion typesimple
Cylinderstwo, 21 1/4 x 21 5/8 in
Power
Power sourcesteam
Indicated power644 hp (480 kW)
Top speed25 mph
Starting effort39,015 lbf
Calculated Values
Optimal speed11 mph
steam locomotive
tank locomotive
switcher
industry
Showing 1 to 10 of 16
Search
loadding loading...

We use cookies to save the following settings:

  • selected navigation structure
  • selected language
  • preferred units
  • spelling of railway company names

If you refuse the use of cookies, the settings will only be retained for the current session and will be reset to the default values the next time you visit the site.

Display of units

Here you can set the desired unit system for the technical data.

  • Metric: Lengths in meters, weights in tonnes, and volumes in cubic meters
  • Imperial (UK): Lengths in feet/inches, weights in long tons and volumes in imperial gallons
  • Imperial (US): Lengths in feet/inches, weights in pounds, and volumes in US gallons
  • Individual: Depends on the country of origin of each locomotive
Operator names

Here you can set the display of railway company names.

  • Short: Abbreviation or short form of the name
  • Standard: commonly used name, partially translated to English
  • Complete: full name in local language
