FC Vascongados No. 1 to 10
Spanish Narrow Gauge Railways class 4000
go back
Spain | 1928
10 produced

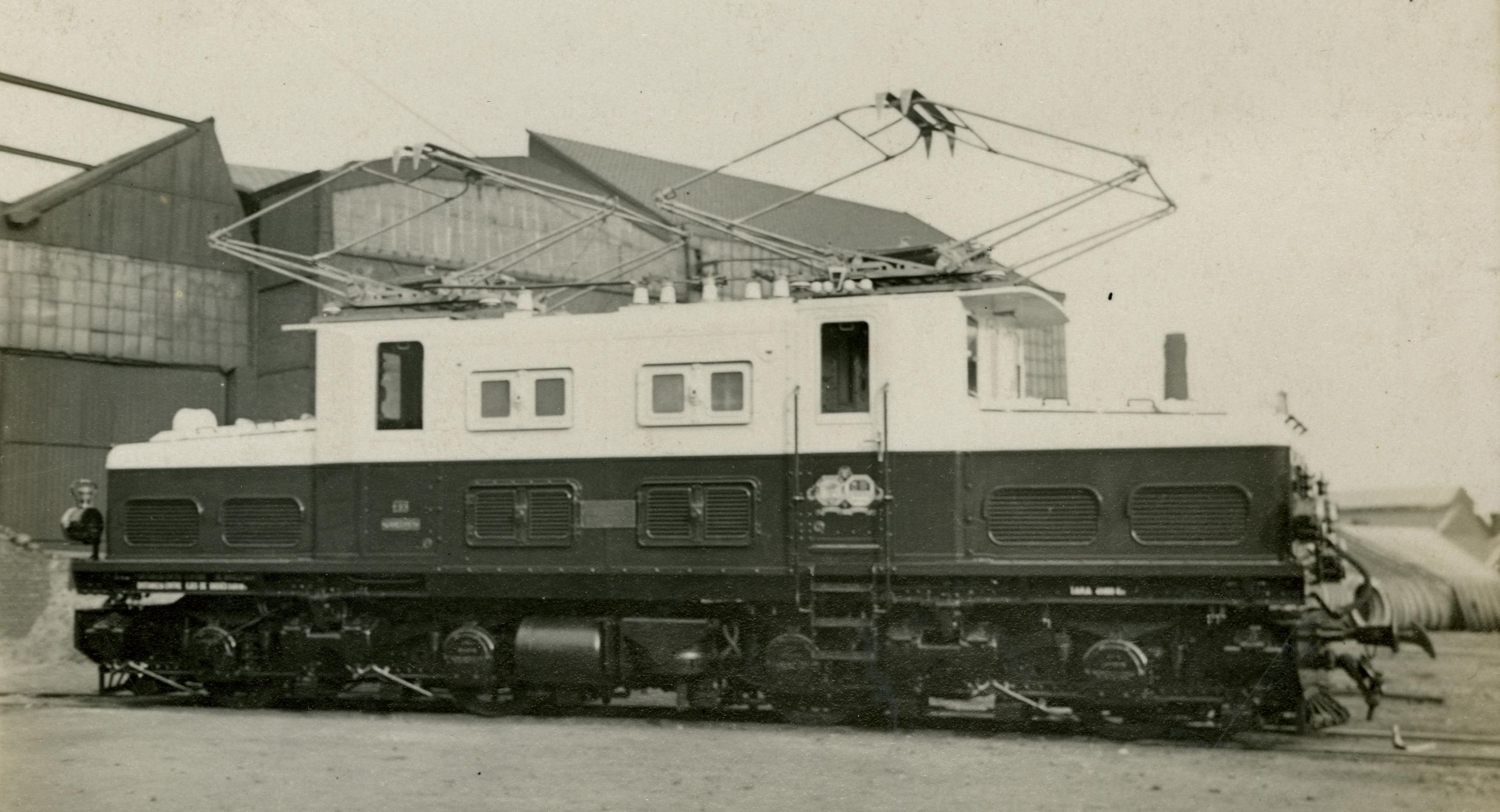

No. 1 “Ganguren”
No. 1 “Ganguren”
flickr/Historical Railway Images

When they electrified the 115 km narrow gauge line between Bilbao and Donostia, the Compañía de Ferrocarriles Vascongados ordered ten electric locomotives from BBC. Their mechanical part was built by Haine-Saint-Pierre. When they were delivered in 1928, they received the numbers 1 to 10. They were named after mountains which were situated along the line, like the “Ganguren” shown in the photo. Each locomotive had two two-axle bogies with nose-suspended traction motors which had an output of 190 kW each. The axle load was eleven tonnes and the top speed was 70 km/h. In 1972, the FV was taken over by the Ferrocarriles de Vía Estrecha (FEVE), where they were numbered 4001 to 4010. They were withdrawn from regular service in 1989, although three were used for tourist trains until 1999. A total of five have been preserved.

General
Built1928
Manufacturermechanical part: Haine-Saint-Pierre, electrical part: BBC
Wheel arr.B-B
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Length36 ft 9 3/4 in
Wheelbase24 ft 11 3/16 in
Rigid wheelbase7 ft 10 1/2 in
Service weight97,003 lbs
Adhesive weight97,003 lbs
Axle load24,251 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Hourly power1,019 hp (760 kW)
Continuous power756 hp (564 kW)
Top speed43 mph
Starting effort24,279 lbf
Calculated Values
electric locomotive
passenger
freight
narrow gauge
last changed: 09/2025
Portuguese State Railway series 2500 and 2550
go back
Portugal | 1956
35 produced
2557 in November 2008 in Pampilhosa
2557 in November 2008 in Pampilhosa
Nelso Silva
General
Built1956-1957, 1963-1964
Manufacturer50 c/s Group, Henschel, Sorefame
Wheel arr.B-B
Gauge5 ft 5 11/16 in (Iberian broad gauge)
Dimensions and Weights
Length50 ft 5 1/2 in
Service weight158,733 lbs
Adhesive weight158,733 lbs
Axle load39,683 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Hourly power2,789 hp (2,080 kW)
Top speed75 mph
Starting effort42,939 lbf
Calculated Values
electric locomotive
passenger
freight
Spanish State Railways series 269
go back
Spain | 1973
265 produced
269.052 and 269.049 in February 2009 in front of a freight train
269.052 and 269.049 in February 2009 in front of a freight train
André Marques

The RENFE class 269 designates 265 four-axle electric locomotives designed for all train types. They were built between 1973 and 1985 by CAF and MACOSA and used technology licensed from Mitsubishi. Each bogie only had one traction motor that was connected to the axles by a two-speed gearbox. Most were built as one of the subclasses 269.0, 269.2 and 269.5. In high gear each had a top speed between 140 and 160 km/h and in low gear they reached between 80 and 100 km/h. Only four locomotives of subclass 269.6 were built which were controlled by choppers, had a streamlined body and reached a top speed of 200 km/h.

Many were rebuilt with single-speed transmission, for example the 269.7 for use with intermodal trains with a top speed of 120 km/h. After the turn of the millennium RENFE began to sell some, three even went to Chile. A large number was withdrawn around 2015 after they had been replaced by more modern and more powerful locomotives with three-phase traction motors, most notably the series 252 and 253.

Variant269.0, 269.9269.2, 269.5269.7269.6
General
Built1973-1985
Manufacturermechanical part: CAF, MACOSA, electrical part: Mitsubishi, Cenemesa, Westinghouse, General Electric
Wheel arr.B-B
Gauge5 ft 5 11/16 in (Iberian broad gauge)
Dimensions and Weights
Length56 ft 7 15/16 in
Service weight194,007 lbs
Adhesive weight194,007 lbs
Axle load48,502 lbs
Boiler
Variant269.0, 269.9269.2, 269.5269.7269.6
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V
Hourly power4,185 hp (3,121 kW)
Top speed87 mph99 mph75 mph124 mph
Calculated Values
electric locomotive
passenger
freight
express
last changed: 07/2025
Spanish State Railways series 276
go back
Spain | 1956
136 produced
276.085 in July 1982 at Barcelona-França station
276.085 in July 1982 at Barcelona-França station
Jean-Pierre Vergez-Larrouy

Based on the French CC 7100, RENFE had a total of 136 electric locomotives built, which is why they were nicknamed “Francesa”. They had a lower output than their prototype and only reached 110 km/h. Their original numbers were 7600 to 7699 and 8600 to 8636, the latter having multiple controls. They later became the series 276 and the ten modernized locomotives became the 276.200. Their regular use ended in 2014 and two of them are to be refurbished so that they are ready for use again. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1956-1965
ManufacturerAlstom, CAF, MACOSA, S.E.C. Naval
Wheel arr.C-C
Gauge5 ft 5 11/16 in (Iberian broad gauge)
Dimensions and Weights
Length62 ft 1 3/8 in
Service weight264,554 lbs
Adhesive weight264,554 lbs
Axle load44,092 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V
Hourly power2,950 hp (2,200 kW)
Top speed68 mph
Calculated Values
electric locomotive
passenger
freight
last changed: 05/2023
