Stadler Rail FLIRT (Norway)
Norwegian State Railways Type 74 to 76
go back
Norway | 2010
151 produced
No. 74-19 in August 2018 in Kjose
No. 74-19 in August 2018 in Kjose
Aksel Lister

The first variant of the FLIRT EMU ordered for use in Norway was the type 74 that started operation in 2012. This variant consists of five cars and was designed for InterCity service. It makes full use of the larger loading gauge that is possible in Norway and has a body width of 3,200 mm, what provides enough space for 2+3 abreast seating. 54 sets were built, although one was destroyed in an accident before entry into service due to excessive speed.

The next variant was the type 75 that also consists of five cars and offers five seats abreast. The most notable difference is the interior that is optimized for longer commuter lines. In total, 83 of this variant were built. Finally the type 76 is special in having an additional generator car that contains four 480 kW diesel power packs for running on lines without overhead lines. In electric mode it only has an output of 3,000 kW instead of 4,500 kW for types 74 and 75.

VariantType 74Type 75Type 76
General
Built2010-2016, since 20202012-20202020-2021
ManufacturerStadler
Wheel arr.B-2-2-B+2-2-B B-2-2+2-2-2-2-B
Gauge4 ft 8 1/2 in (Standard gauge)
Seats264295241
Dimensions and Weights
Length346 ft 1 9/16 in369 ft 9 in
Rigid wheelbase9 ft 0 1/4 in
Empty weight374,785 lbs
Boiler
VariantType 74Type 75Type 76
Power Plant
Power
Power sourceelectric - ACelectric - AC + diesel-electric
Electric system15.000 V 16⅔ Hz
Hourly power6,035 hp (4,500 kW)4,023 hp (3,000 kW)
Continuous power4,023 hp (3,000 kW)2,682 hp (2,000 kW)
Top speed124 mph
Starting effort53,954 lbf35,969 lbf
EngineDeutz
Engine type4x V8 diesel
Engine output2,575 hp (1,920 kW)
Calculated Values
EMU
suburban
local
regional
hybrid
dual power
Stadler multiple unit
Stadler FLIRT
last changed: 07/2025

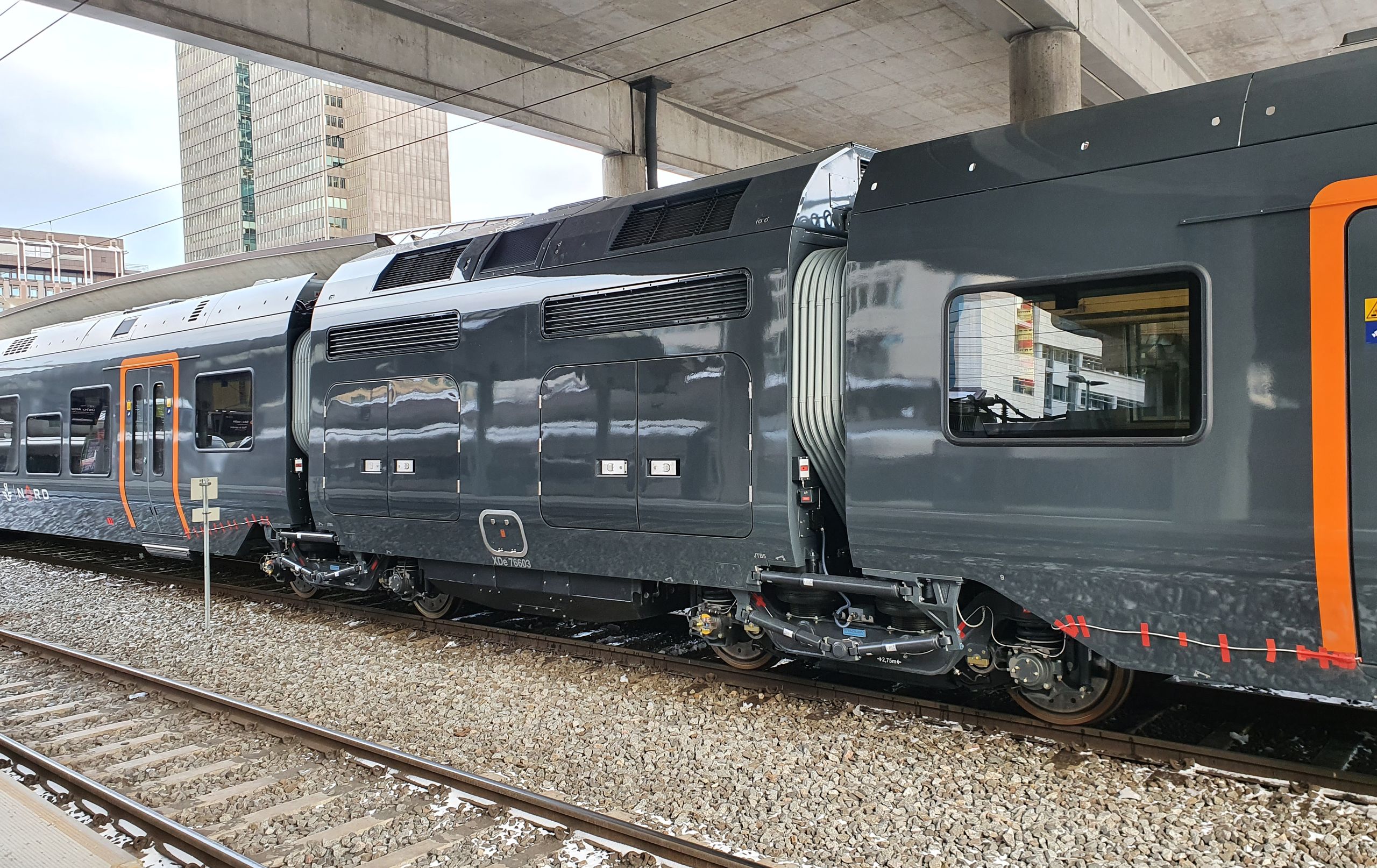

Generator car of the type 76
Generator car of the type 76
Kolbkorr
