Nankai Electric Railway class 50000
go back
Japan | 1994
6 produced

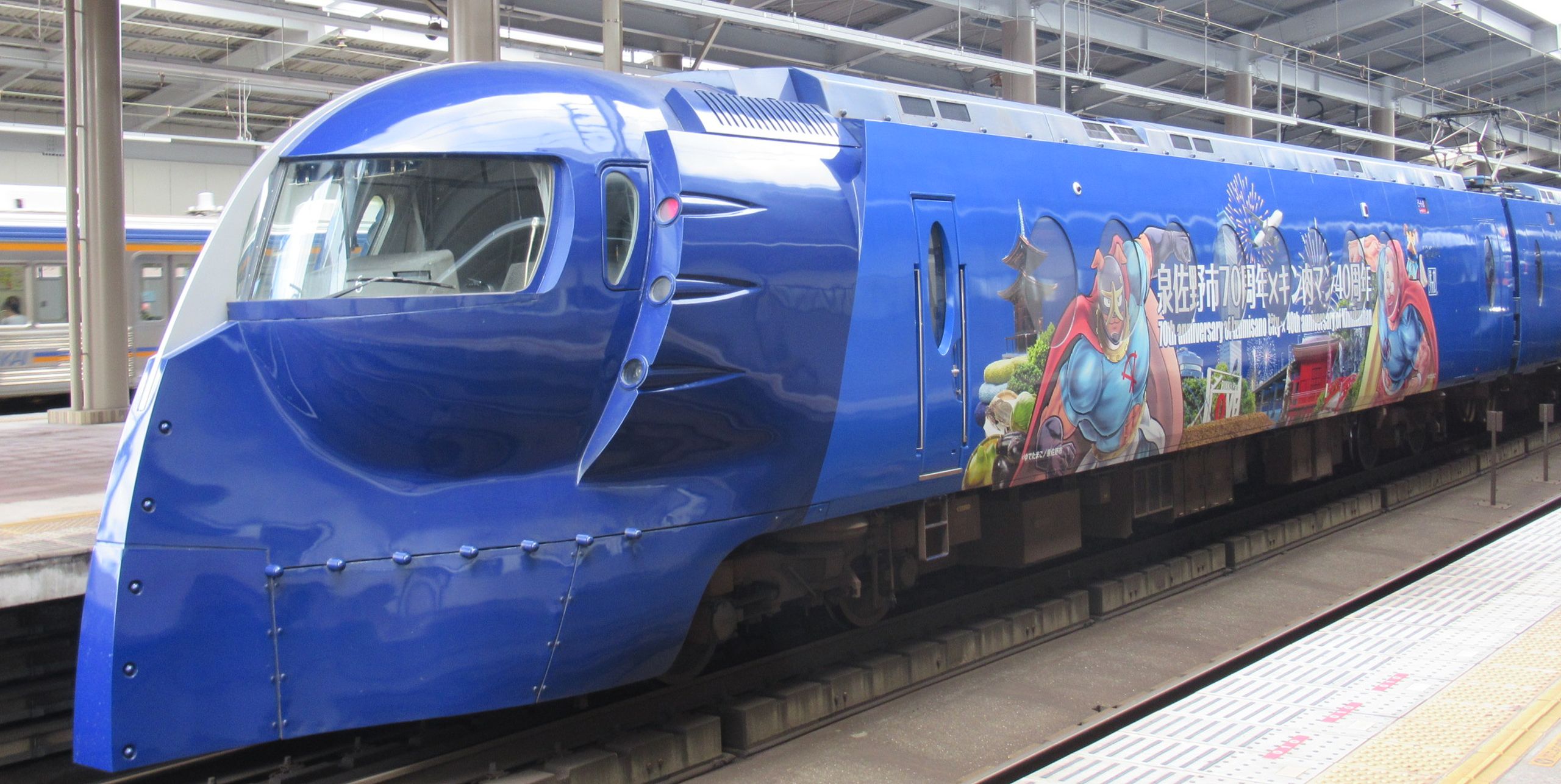

50506 in June 2019 at Tengachaya
50506 in June 2019 at Tengachaya
TRJN

The class 50000 consists of six six-car electric multiple units which have been built for the Nankai Airport Line that leads to the Kansai airport. This airport was opened in 1994 on an artificial island in Osaka Bay and is connected to the city by a road and rail bridge. The trains have been designed by Hiroyuki Wakabayashi with futuristic and retro elements. They have special streamlined noses and elliptic windows which resemble those of aircraft. Three of the inner four cars are being powered by four 180 kW three-phase traction motors each. Power was originally controlled by GTO thyristors, but they have been upgraded to IGBT in the meantime. The trains were generally painted in metallic deep navy blue, but over time some received special liveries. These include the themes Star Wars, Mobile Suit Gundam and the Osaka World Expo.

General
Built1994
ManufacturerTokyu Car
Wheel arr.2-2+B-B+2-2+B-B+B-B+2-2
Gauge3 ft 6 in (Cape gauge)
Seats252
Dimensions and Weights
Length412 ft 0 7/8 in
Empty weight482,812 lbs
Adhesive weight255,736 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Hourly power2,897 hp (2,160 kW)
Top speed75 mph
Calculated Values
EMU
local
suburban
three-phase AC
last changed: 02/2026
