Dutch Railways series 6100
go back
Netherlands | 1929
10 produced

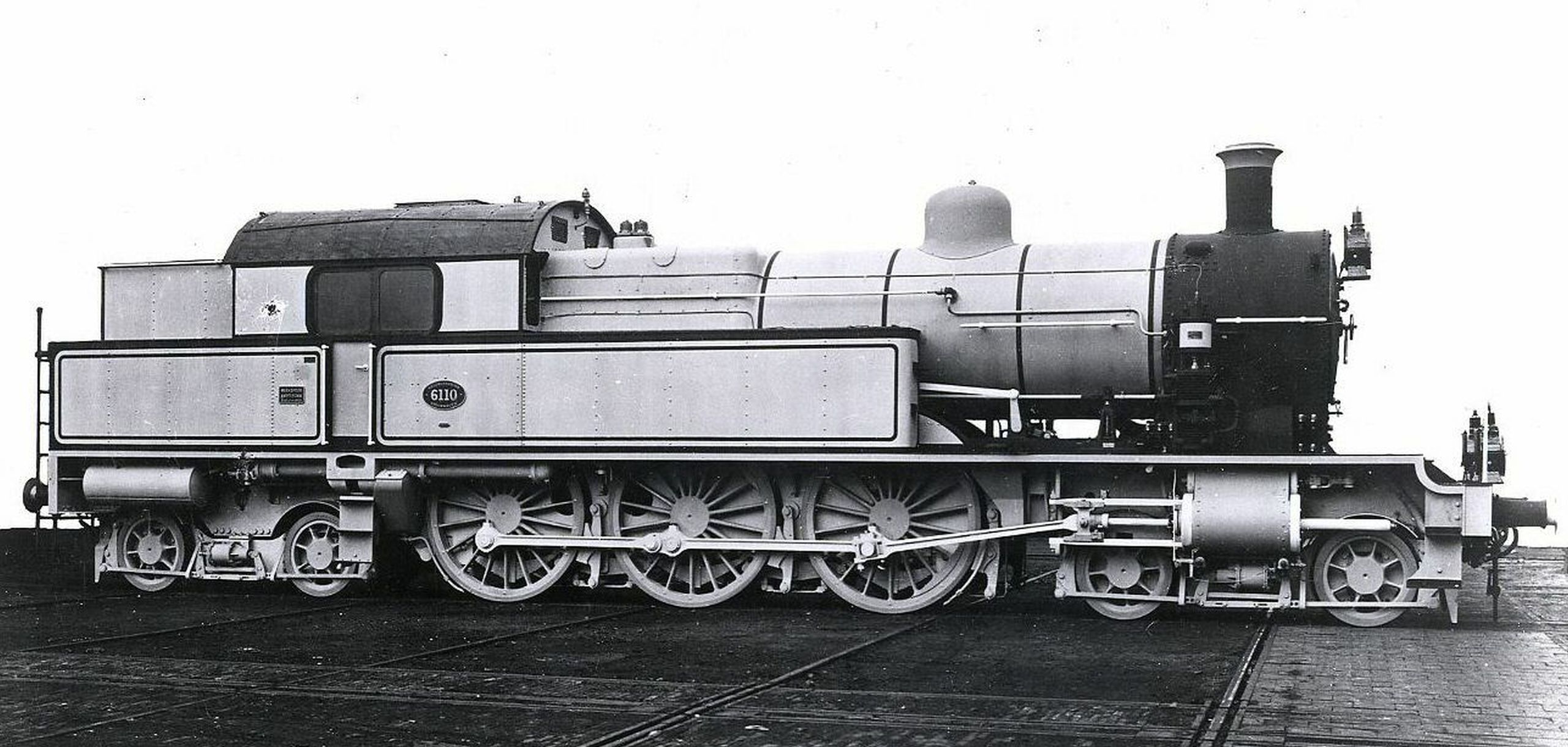

No. 6110 built by Werkspoor
No. 6110 built by Werkspoor
Het Utrechts Archief

The NS series 6100 consisted of ten 4-6-4T passenger tank locomotives. It was designed after the permissible axle load had been increased from 16 to 18 tonnes. Previously, the series 6000 with the same wheel arrangement was the most powerful tank locomotive in the Netherlands. The 6100 was based on the series 3700 “Jumbo” and like this had four cylinders. The firebox was kept nearly unchanged, but the surface area of the flues and tubes was reduced to carry the weight of the water supplies. The diameter of the cylinders had been increased by 20 mm to improve acceleration with trains of more than ten bogie coaches.

Numbers 6101 to 6105 were built by Hohenzollern in February and March 1929. 6106 to 6110 followed from Werkspoor in September to November of the same year, for a total of ten. No more were ordered in the thirties since the Dutch network was already being electrified. They were also called “Tenderjumbos”. After World War II, two had to be scrapped which were damaged and a third one got lost in the war. The seven others were withdrawn between 1956 and 1958.So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1929
ManufacturerHohenzollern, Werkspoor
Wheel arr.4-6-4T (Hudson)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length53 ft 5 3/4 in
Wheelbase39 ft 2 1/2 in
Service weight238,099 lbs
Water capacity3,170 us gal
Fuel capacity9,480 lbs (coal)
Boiler
Grate area30.6 sq ft
Firebox area165.8 sq ft
Tube heating area1,399.3 sq ft
Evaporative heating area1,565.1 sq ft
Superheater area465 sq ft
Total heating area2,030.1 sq ft
Power Plant
Driver diameter72.8 in
Boiler pressure174 psi
Expansion typesimple
Cylindersfour, 16 9/16 x 26 in
Power
Power sourcesteam
Estimated power1,301 hp (970 kW)
Top speed56 mph
Starting effort28,852 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
last changed: 02/2026

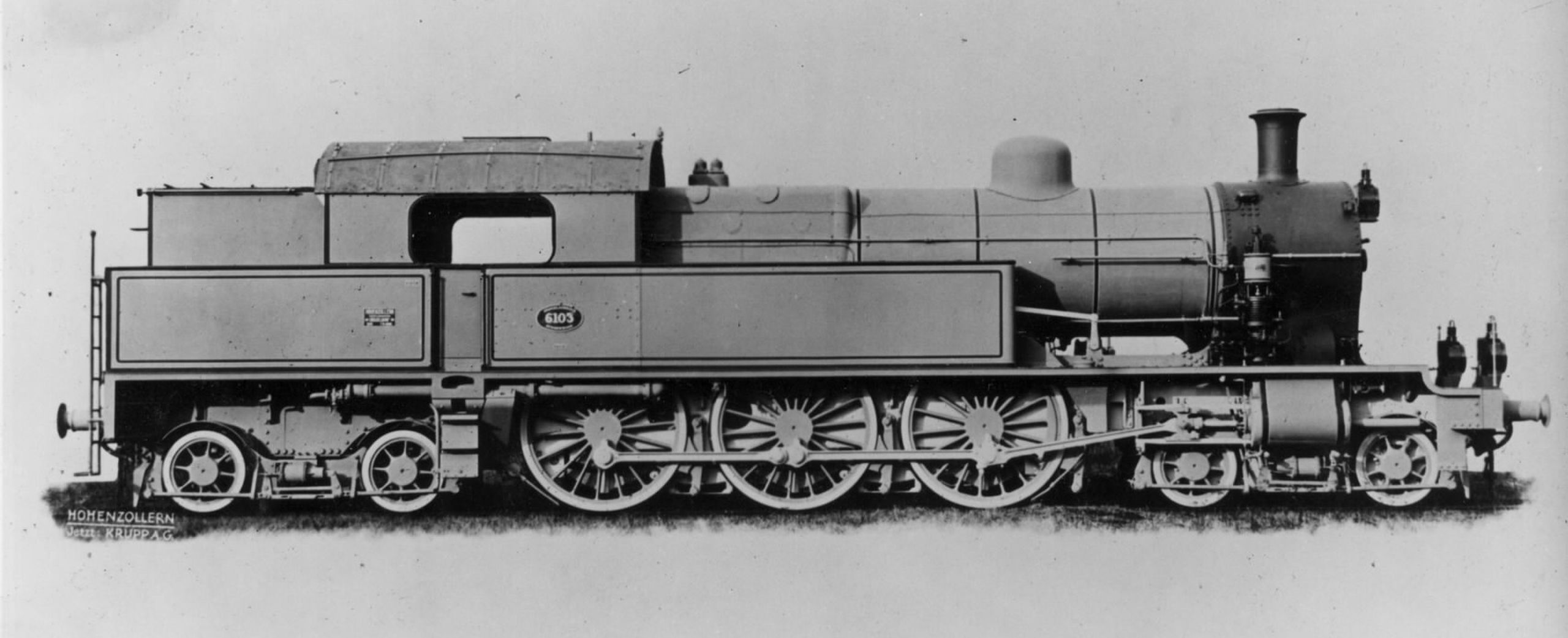

No. 6103 built by Hohenzollern
No. 6103 built by Hohenzollern
Het Utrechts Archief
