Electric Locomotives from the Balkan[Inhalt]
Yugoslav Railway series 363
Slovenian Railways series 363
Yugoslavia | 1975
39 produced

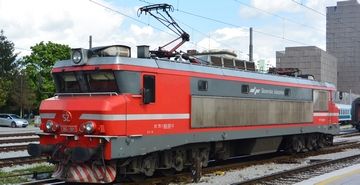

363 001 in April 2014 in Ljubljana
363 001 in April 2014 in Ljubljana
Alois Staudacher

Between 1975 and 1977, the Yugoslav State Railways received a total of 39 six-axle electric locomotives for passenger and freight trains from Alsthom. They shared many similarities with the French CC 6500, but had lower power and a lower top speed. In the 363, too, only one traction motor was used in each bogie, the gear ratio of which could be switched between 75 and 125 km/h when stationary. They were nicknamed “Brižita” after the French actress Brigitte Bardot and later all came to Slovenia.

General
Built1975-1977
ManufacturerAlstom
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length65 ft 11 5/16 in
Service weight253,531 lbs
Adhesive weight253,531 lbs
Axle load42,329 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V
Continuous power3,983 hp (2,970 kW)
Top speed78 mph
Calculated Values
electric locomotive
freight
passenger
Nez Cassé
last changed: 04/2023
Yugoslav Railway series 441
Yugoslavia | 1967
294 produced
HŽ 1141 in June 2003 in Zagreb
HŽ 1141 in June 2003 in Zagreb
Falk2
Variant441.0, 441.5441.3, 441.4441.6, 441.7, 441.8
General
Built1967-19771967-19871976, 1980-1987
Manufacturermechanical part: SGP, Rade Končar, electrical part: ASEA, ELIN, Sécheron
Axle configB-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length50 ft 9 1/16 in
Service weight171,960 lbs176,370 lbs180,779 lbs
Adhesive weight171,960 lbs176,370 lbs180,779 lbs
Axle load42,990 lbs44,092 lbs45,195 lbs
Boiler
Variant441.0, 441.5441.3, 441.4441.6, 441.7, 441.8
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Hourly power5,471 hp (4,080 kW)
Continuous power5,176 hp (3,860 kW)
Top speed75 mph87 mph
Starting effort53,280 lbf
Calculated Values
electric locomotive
passenger
freight
Romanian Railway series 060 EA
later classes 40 to 42
Romania | 1965
1,079 produced
40 0223 in July 2018 in Predeal
40 0223 in July 2018 in Predeal
Ciprian Neculai
Variant4041prototype
General
Built1965-1991
ManufacturerASEA, Electroputere
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length64 ft 11 1/2 in
Wheelbase48 ft 6 11/16 in
Rigid wheelbase14 ft 3 1/4 in
Service weight264,554 lbs
Adhesive weight264,554 lbs
Axle load44,092 lbs
Boiler
Variant4041prototype
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Hourly power7,242 hp (5,400 kW)
Continuous power6,839 hp (5,100 kW)
Top speed75 mph99 mph124 mph
Starting effort92,846 lbf88,125 lbf
Calculated Values
electric locomotive
passenger
freight
Romanian Railway class 47 (Softronic LE 5100)
Romania | 2006
176 produced
447 247 in June 2018 in Câmpina
447 247 in June 2018 in Câmpina
Ciprian Neculai

From the 1960s to 1991, Electroputere manufactured more than 1,000 060-EA locomotives, later designated as series 40, 41 and 42. As early as 1998, some were modernized by Siemens-Secheron. Another modernization soon started at Softronic. This company was founded in Craiova in 1999, recruiting many Electroputere employees.

After some locomotives of the freight variant had already been modernized there, the modernization of the passenger variant started in 2006. This is 160 km/h fast and is called LE 5100 by the manufacturer. The fewer than 200 modernized locomotives to date are listed as series 47 by the CFR.

General
Builtsince 2006
ManufacturerSoftronic, PROMAT
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length64 ft 11 1/2 in
Wheelbase33 ft 9 1/2 in
Rigid wheelbase14 ft 3 1/4 in
Service weight264,554 lbs
Adhesive weight264,554 lbs
Axle load44,092 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Hourly power8,918 hp (6,650 kW)
Continuous power6,839 hp (5,100 kW)
Top speed99 mph
Starting effort118,250 lbf
Calculated Values
electric locomotive
passenger
freight
last changed: 06/2023
Softronic Transmontana
Bulgarian State Railway class 480, Hungarian State Railways class 610 and Green Cargo class Mb
Bulgaria | 2010
more than 60 produced
Transmontana with a crash-optimized front of the Magyar Magánvasút (MMV) in June 2018 in Kecskemét
Transmontana with a crash-optimized front of the Magyar Magánvasút (MMV) in June 2018 in Kecskemét
Beroesz

The Romanian company Softronic started the extensive modernization of old electric locomotives in 1999 and has been offering the first complete in-house development with the Transmontana since 2010. It is a six-axle freight locomotive, which was the first from Romania with a three-phase drive. It can be operated under 15.000 V and 25.000 V AC and has so far received certification for Romania, Hungary and Sweden. It is usually used in front of freight trains up to 3,000 tonnes. Starting with the 17th locomotive, which was presented at the Innotrans in Berlin in 2014, it has had a newly designed, crash-optimized front end.

Transmontana with original body design of DB Cargo Romania
Transmontana with original body design of DB Cargo Romania
Beroesz

The largest customer so far was DB Cargo Romania, which operates 17 vehicles. Smaller numbers were purchased by various Romanian, Hungarian and Slovakian operators. The Swedish Green Cargo ordered the first two locomotives in 2017 and has since placed further orders, so that by 2021 there were already 16 units. These were purchased because after the decommissioning of the Ma series locomotives, there were no longer any six-axle locomotives in stock. A number of 28 are already planned until 2023 and an option has been secured for ten pieces each over ten years. The newer locomotives also have ETCS and are to be used in Norway in the future as soon as they have been certified there.

General
Builtsince 2010
ManufacturerSoftronic
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length67 ft 10 15/16 in
Service weight277,782 lbs
Adhesive weight277,782 lbs
Axle load47,399 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz, 25,000 V 50 Hz
Hourly power8,851 hp (6,600 kW)
Continuous power8,046 hp (6,000 kW)
Top speed99 mph
Starting effort97,792 lbf
Calculated Values
electric locomotive
freight
multi-system
three-phase AC
last changed: 10/2022
