Korail class 8000
South Korea | 1972
94 produced

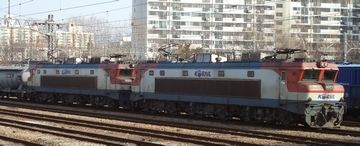

8073 and 8062 in March 2013 in double with a freight train
8073 and 8062 in March 2013 in double with a freight train
Korail2012

Korail's class 8000 is an electric locomotive that was intended for passenger and freight traffic. It was developed by the 50 Hertz Group for the 25,000 volt network. The first 90 were built by Alstom between 1972 and 1980 and four more by Daewoo between 1986 and 1990.

They stand on three two-axle bogies and are visually reminiscent of the French locomotives with Nez Cassé. Since they were primarily used on mountainous routes, the top speed is only 85 km/h. After the class 8200 was introduced by Siemens in 2002, the class 8000 was only used in freight transport. After Hyundai introduced the 8500 class in 2012, the class 8000 was almost completely phased out.

General
Built1972-1980, 1986-1990
ManufacturerAlstom, Daewoo
Axle configB-B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length68 ft 0 1/8 in
Service weight291,010 lbs
Adhesive weight291,010 lbs
Axle load48,502 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 60 Hz
Continuous power5,230 hp (3,900 kW)
Top speed53 mph
Calculated Values
electric locomotive
freight
passenger
last changed: 01/2024
Korail class 8500
South Korea | 2012
87 produced

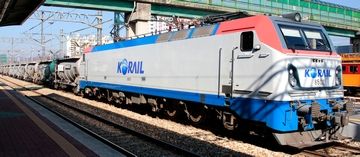

8502 in November 2014 in Jochiwon
8502 in November 2014 in Jochiwon
Minseong Kim
General
Built2012-2014
ManufacturerHyundai Rotem, Toshiba
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length73 ft 10 5/8 in
Service weight291,010 lbs
Adhesive weight291,010 lbs
Axle load48,502 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 60 Hz
Continuous power8,851 hp (6,600 kW)
Top speed93 mph
Starting effort101,164 lbf
Calculated Values
electric locomotive
freight
three-phase AC
Pakistan Western BCU30E
Pakistan | 1964
29 produced

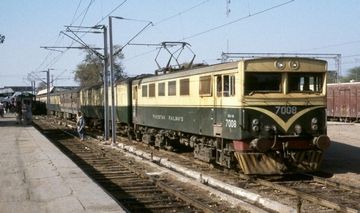

No. 7008 in 1996 in Khanewal
No. 7008 in 1996 in Khanewal
Dr. Roland Ziegler

The then Pakistan Western Railway had the 276 km long route between Lahore and Khanewal electrified with 25 kV alternating current until 1966. The locomotives came from a British consortium of AEI and English Electric and were designated BCU30E, which stood for “British Consortium Universal, 3000 horse power, electric”. The electrification of other routes was planned, but failed due to many tunnels that were too low and a lack of electricity.

The 29 locomotives were used on the only electrified route for several decades in passenger and freight service. In 2007, number 7027 was brought to the museum in Golra, when the locomotives were slowly showing signs of aging. From 2009 they were only used in front of freight trains and in 2011 the electric operation in Pakistan was completely discontinued. A resumption of electrical operation is still questionable today. Although the overhead wires have never been officially dismantled and the pylons remain intact today, the cables have been the victims of copper theft on a large scale.

General
Built1964
ManufacturerAEI, English Electric
Axle configB-B
Gauge5 ft 6 in (Indian broad gauge)
Dimensions and Weights
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Continuous power3,000 hp (2,237 kW)
Calculated Values
electric locomotive
passenger
freight
last changed: 10/2022
Turkish State Railway E 43000
Turkey | 1987
45 produced

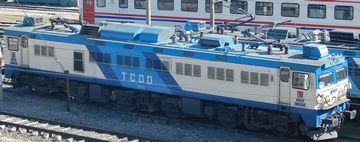

E 43012 in February 2008 at Haydarpasa Station, Istanbul
E 43012 in February 2008 at Haydarpasa Station, Istanbul
Alasdair McLellan
Variantfreightpassenger
General
Builtsince 1987
ManufacturerToshiba, Tülomsaş
Axle configB-B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length66 ft 4 7/8 in
Rigid wheelbase9 ft 2 1/4 in
Service weight264,554 lbs
Adhesive weight264,554 lbs
Axle load44,092 lbs
Boiler
Variantfreightpassenger
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Continuous power4,264 hp (3,180 kW)
Top speed56 mph75 mph
Starting effort87,226 lbf61,822 lbf
Calculated Values
electric locomotive
freight
passenger
Turkish State Railway E 68000
Turkey | 2013
80 produced

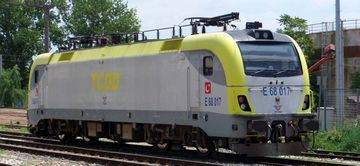

E 68017 in July 2016 in Alpullu
E 68017 in July 2016 in Alpullu
Ihsanfb77

The E 68000 is an electric multi-purpose locomotive developed by Hyundai Rotem for the Turkish State Railways. Škoda supplied the electrical equipment. Only the first eight locomotives were built in South Korea, all others were built at Tülomsaş in Turkey. Compared to the older, six-axle class E 43000 locomotives, they have lower tractive power, which initially proved to be a problem when starting heavy trains on inclines. Although there is a need for hundreds of more electric locomotives in Turkey, they apparently decided against producing more E 68000s.

General
Built2013-2015
ManufacturerHyundai Rotem, Tülomsaş, Škoda
Axle configB-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length65 ft 7 3/8 in
Service weight189,597 lbs
Adhesive weight189,597 lbs
Axle load47,399 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Continuous power6,705 hp (5,000 kW)
Top speed87 mph
Calculated Values
electric locomotive
passenger
freight
three-phase AC
last changed: 10/2023
