South African class 15A
go back
South Africa | 1914
119 produced

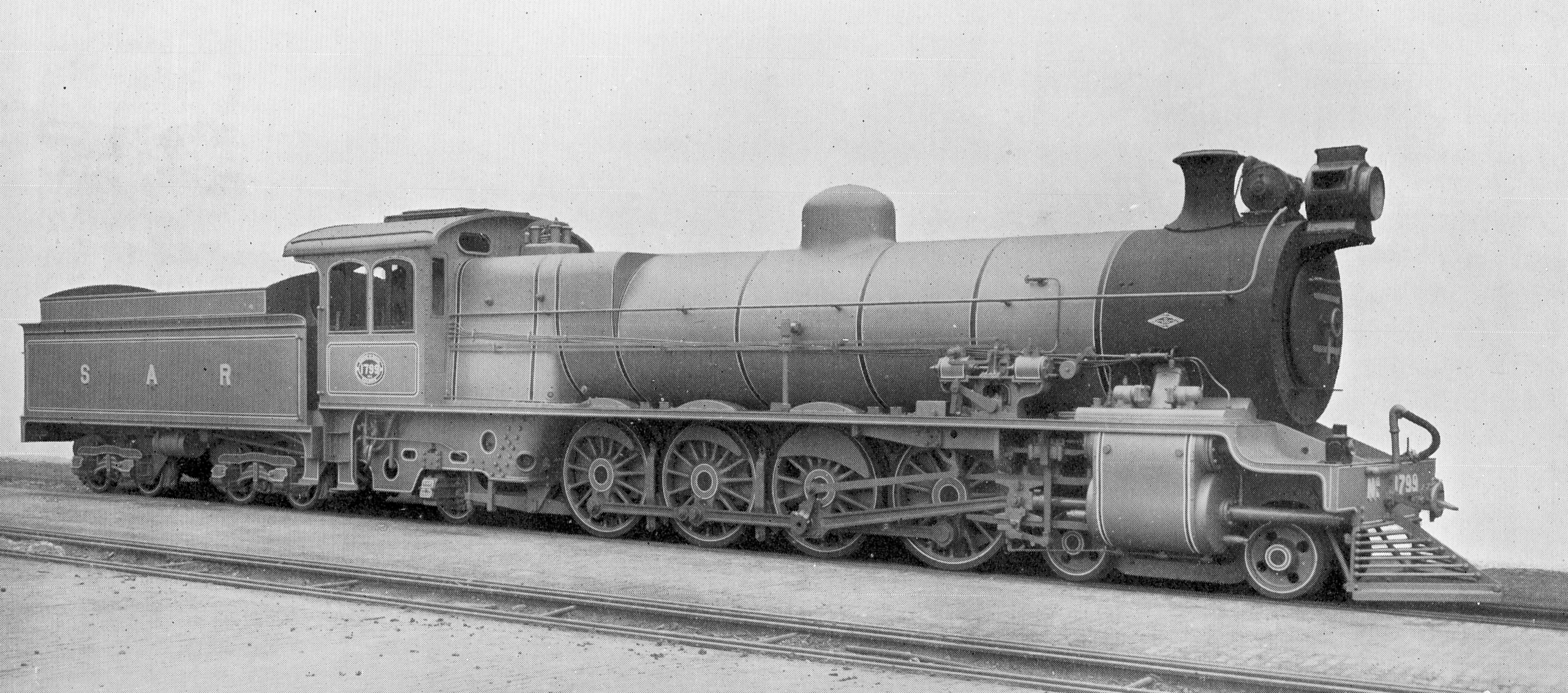

No. 1799, built in 1916 by North British
No. 1799, built in 1916 by North British
flickr/Historical Railway Images

The class 15A was a 4-8-2 mixed traffic locomotive designed by D.A. Hendrie as a successor of the class 15. It was the last plate frame locomotive of this wheel arrangement designed by him and had the goal to address the overly long tubes of the class 15. The solution was to fit the Belpaire firebox with a combustion chamber that decreased the length of the tubes. This also enlarged the heating surface from 155 to 192 square feet

The first 13 were built by North British in 1914 with a narrow cab. The later ones got a wider cab and a modified form of the running boards. Additionally, they had no flanges on the first set of driving wheels to improve their running characteristics on lines with sharp curves like the Hex River Pass. In total, North British had built 53 locomotives by 1920. Beyer, Peacock delivered 30 more in 1920 and 1921, followed by 15 more from North British in 1921. The last batch of 21 was delivered by Maffei in 1925.

The first five also had steel fireboxes to decrease the weight on the trailing axle, but these had problems when they were fed with water of poor quality. So their firebox were changed to copper and all others were built with copper fireboxes from the start. No. 2100, the last locomotive from the Maffei batch, was built with Lentz rotary cam poppet valves which were later rebuilt to piston valves operated by Walschaerts valve gear, similar to all other class members.

In passenger traffic, the class 15A could reduce the travelling time of the Union Limited by 2.5 hours. In the thirties they became class 15AR when they were fitted with Watson standard No. 2A boilers with round-topped fireboxes and no combustion chambers. Initially they got copper fireboxes, but later rebuilds used steel fireboxes. Although these improved the standardization among the classes of the SAR, but reduced the steaming capacity with a firebox heating surface of only 142 square feet. They also had the distinctive cabs with slanted fronts known from other locomotives. In the early eighties most were used in shunting service, while some were hired out to Swaziland. After their withdrawals few years later, twelve were preserved.

Variantas builtrebuilt 15AR
General
Built1914-1925from 1935
ManufacturerNorth British, Beyer, Peacock & Co., MaffeiSAR
Wheel arr.4-8-2 (Mountain)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length68 ft 11 1/8 in
Wheelbase33 ft 8 in
Rigid wheelbase15 ft
Total wheelbase60 ft 6 3/4 in
Service weight212,352 lbs211,232 lbs
Adhesive weight147,840 lbs149,968 lbs
Total weight326,704 lbs325,584 lbs
Axle load35,952 lbs37,296 lbs
Water capacity5,104 us gal
Fuel capacity22,400 lbs (coal)
Boiler
Grate area40 sq ft30 sq ft
Firebox area192 sq ft142 sq ft
Tube heating area1,834 sq ft2,171 sq ft
Evaporative heating area2,026 sq ft2,313 sq ft
Superheater area478 sq ft537 sq ft
Total heating area2,504 sq ft2,850 sq ft
Variantas builtrebuilt 15AR
Power Plant
Driver diameter57 in
Boiler pressure185 psi190 psi
Expansion typesimple
Cylinderstwo, 22 x 28 in
Power
Power sourcesteam
Estimated power1,350 hp (1,007 kW)
Starting effort37,387 lbf38,397 lbf
Calculated Values
steam locomotive
freight
passenger
David Anderson Hendrie
