Lombardo-Venetian and Central Italian Railway Company No. 131 to 150
Austrian Southern Railway class 20
go back
Austria-Hungary | 1858
20 produced

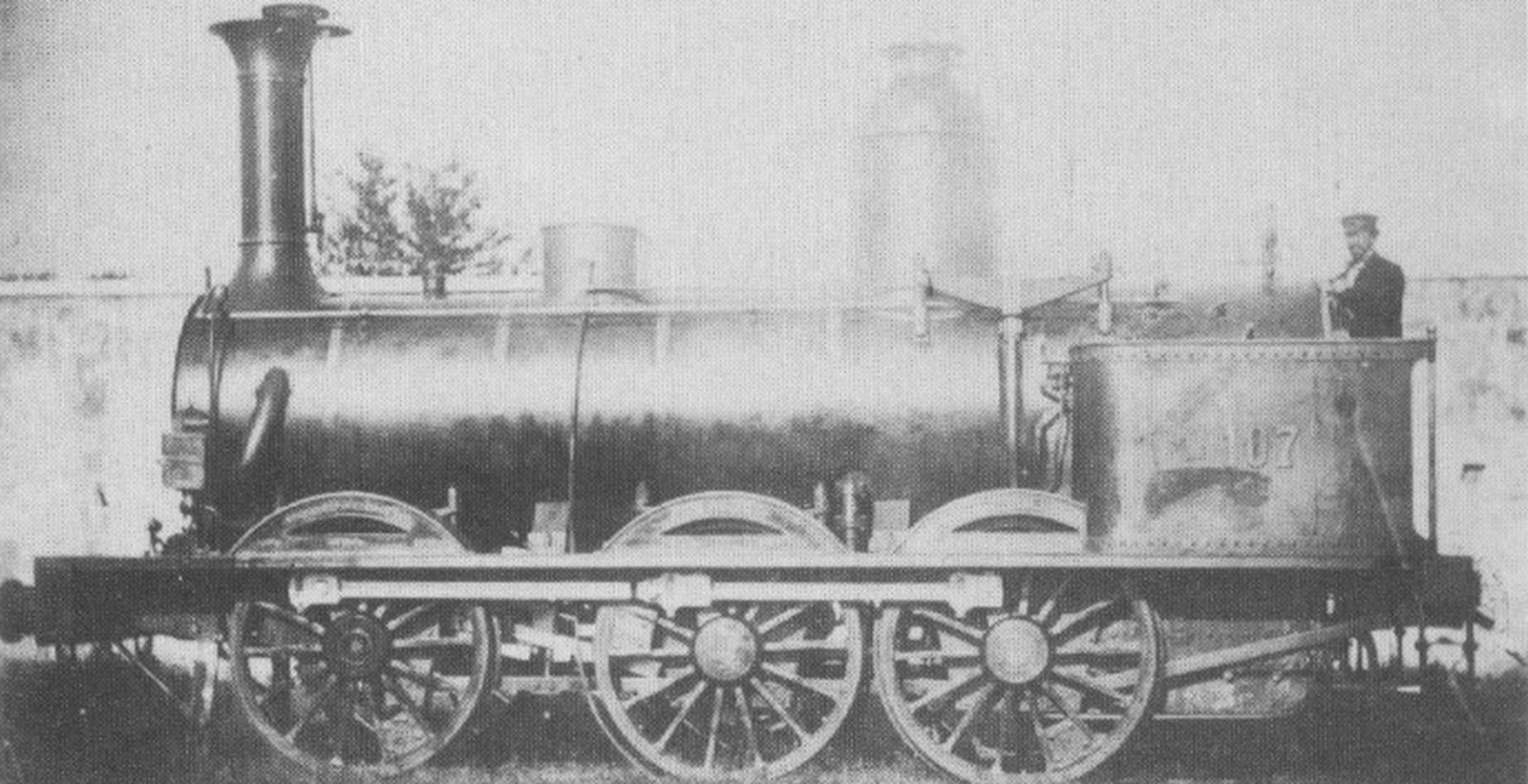

Südbahn No. 107
Südbahn No. 107

In 1858, the French builder Schneider from Le Creusot built 20 0-6-0 freight locomotives for the Lombard-Venetian and Central-Italian Railway Company (LVCI). These had inside frames, cylinders and valve gear. When the LVCI merged with the Südbahn in 1859, they became class 20. After the 1866 war, half of the locomotives came to the Upper-Italian Railway (SFAI). When this one became part of the Rete Adriatica, all 20 locomotives were apparently re-united with the RA numbers 3016 to 3035. Withdrawals started in 1898 and in 1905, two remaining came to the FS and got the numbers 3953 and 3954. One was withdrawn in 1906 and the other one in 1911.

General
Built1858
ManufacturerSchneider
Axle config0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length26 ft 9 7/16 in
Wheelbase10 ft 9 5/8 in
Rigid wheelbase10 ft 9 5/8 in
Service weight66,580 lbs
Adhesive weight66,580 lbs
Axle load22,267 lbs
Fuel capacitycoal
Boiler
Grate area13.8 sq ft
Evaporative heating area1,293.8 sq ft
Total heating area1,293.8 sq ft
Power Plant
Driver diameter56.3 in
Boiler pressure102 psi
Expansion typesimple
Cylinderstwo, 17 x 24 in
Power
Power sourcesteam
Estimated power268 hp (200 kW)
Starting effort10,646 lbf
Calculated Values
Optimal speed16 mph
steam locomotive
freight
