French Eastern Railway series 13 No. 241-001 to 041 and French State Railway (État) 241-001 to -049
French State Railway 1-241 A and 3-241 A
go back
France | 1925
90 produced

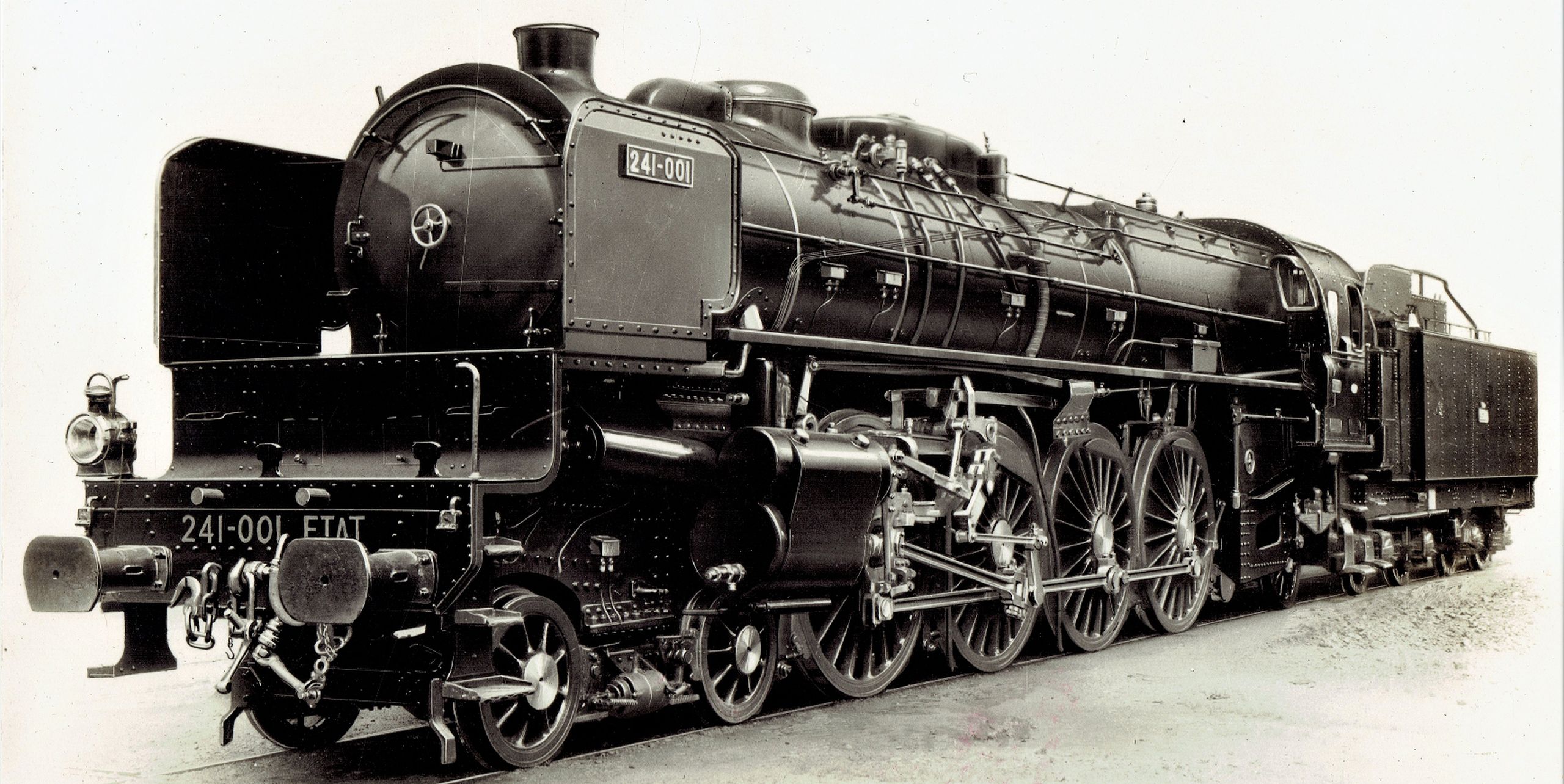

État 241-001
État 241-001

In 1925, the Est was the first railway in Europe to get a 4-8-2 “Mountain” locomotive. This prototype, numbered 41-001, was built in the Épernay workshops to haul heavier express trains than the Pacifics, since more and more cars were built from steel instead of wood. The requirements said that it should haul 700 tonnes at 115 km/h. Designed by Émile Duchâtel, it was a four-cylinder compound with a deep and narrow Belpaire firebox. First tests showed that it produced less than 2,000 hp

After trials with the Nord Pacific 3.1214, the prototype was rebuilt in 1928. The diameter of the low pressure cylinders was increased from 610 to 660 mm, the diameter of steam lines was increased, the boiler pressure was increased from 16 to 17 bars and the connecting rods were reinforced. Finally, the blast pipe was replaced with a variable cloverleaf variant. Now, the output of the locomotive was 2,450 hp. Later it was renumbered to 241-001.

Series production started in 1930 after the Est had ordered 49, with a further order for 40 by the État. Production was completed in 1935 and the last batches already had modern features like ACFI feed water heaters or Kylchap exhausts. Designed for 120 km/h, their top speed had to be reduced to 90 km/h after a derailment in 1932. After investigations, it was again raised to 105 and finally 110 km/h.

While the État was satisfied with their power, the Est started to rebuild them after the principles of André Chapelon as early as 1933. They raised the boiler pressure to 20 bars, decreased the diameter of the high pressure cylinders from 450 to 425 mm, applied internal streamlining and added blast pipes of the six-jet cloverleaf design to most locomotives. Only one received a double chimney. An ACFI feed water heater was installed in most locomotives, but three got one of the Worthington type. Now they developed an output of up to 3,500 hp, but the SNCF soon reduced their boiler pressure to 18 bars.

The SNCF designated the Est locomotives 1-241 A, while the ones from the État became 3-241 A. They had more traction than Pacific locomotives and especially the rebuilt ones were more powerful, but they were slower. So their tasks were very heavy express trains or trains on hilly lines. The first ones were withdrawn in 1952, but the last ones only in 1965. Today 241 A 65, the former État 241-001, is operational and stationed in Switzerland. The prototype 241 A 1 is on display in the Cité du Train in Mulhouse.

Variantprototypeproductionrebuilt
General
Built19251930-19351933-1948
ManufacturerÉpernayFives.Lille, SFCM, Batignolles-Châtillon
Wheel arr.4-8-2 (Mountain)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase42 ft 6 5/8 in36 ft 7 3/4 in
Rigid wheelbase20 ft 2 1/8 in
Total wheelbase72 ft 0 1/2 in70 ft 2 1/2 in
Empty weight226,194 lbs241,406 lbs248,240 lbs
Service weight246,917 lbs264,554 lbs270,286 lbs
Adhesive weight163,803 lbs169,756 lbs173,063 lbs
Total weight401,682 lbs425,271 lbs431,003 lbs
Axle load41,226 lbs43,431 lbs
Water capacity8,454 us gal9,246 us gal
Fuel capacity22,046 lbs (coal)18,739 lbs (coal)
Boiler
Grate area47.7 sq ft
Firebox area257.3 sq ft
Tube heating area2,085 sq ft2,145.2 sq ft
Evaporative heating area2,342.2 sq ft2,402.5 sq ft
Superheater area990.3 sq ft753.5 sq ft
Total heating area3,332.5 sq ft3,156 sq ft
Variantprototypeproductionrebuilt
Power Plant
Driver diameter76.8 in
Boiler pressure247 psi290 psi
Expansion typesimple
Cylindersfour, front: 17 11/16 x 28 3/8 in
rear: 24 x 28 3/8 in
four, front: 17 11/16 x 28 3/8 in
rear: 26 x 28 3/8 in
four, front: 16 3/4 x 28 3/8 in
rear: 26 x 28 3/8 in
Power
Power sourcesteam
Indicated power2,414 hp (1,800 kW)2,535 hp (1,890 kW)3,452 hp (2,574 kW)
Top speed75 mph68 mph
Starting effort68,931 lbf76,546 lbf86,960 lbf
Calculated Values
steam locomotive
express
De Glehn compound
