Spanish State Railways No. 141.2101 to 2125 and 141.2201 to 2417
go back
Spain | 1952
242 produced

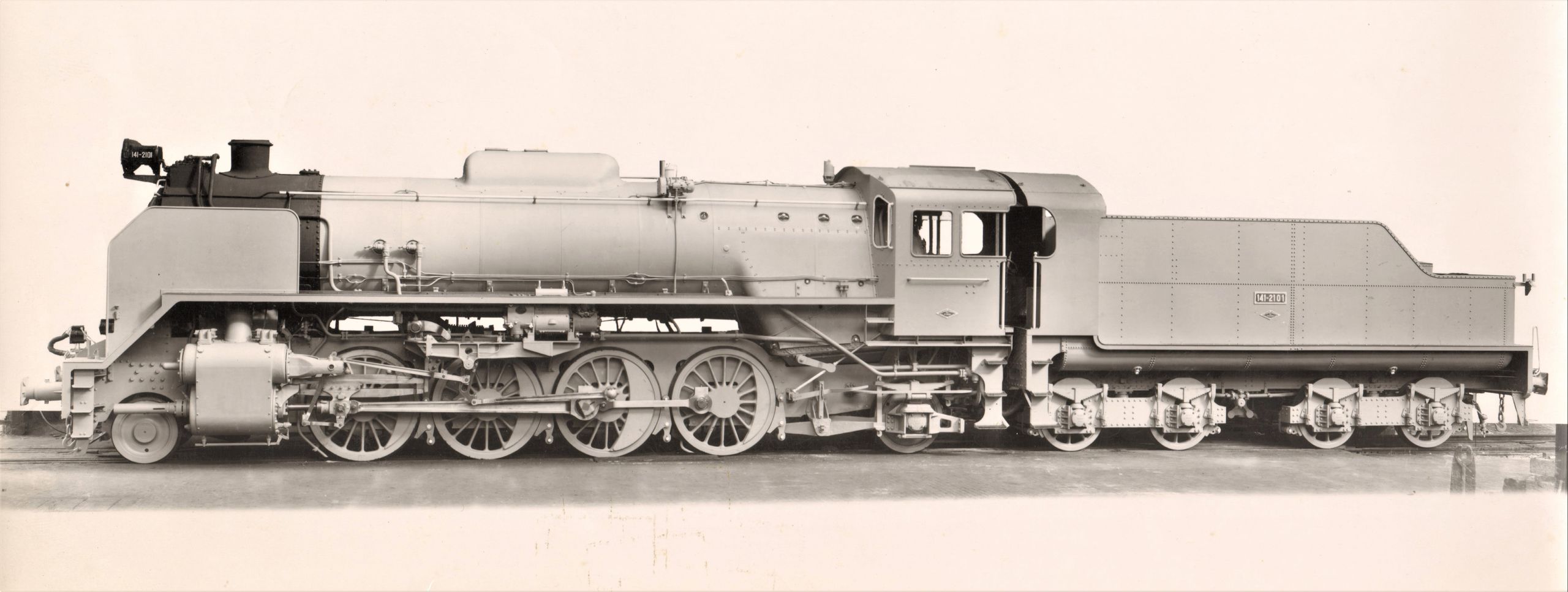

Image of locomotive
flickr / Historical Railway Images

To cope with increasing traffic demands after World War II, RENFE ordered 2-8-2 mixed traffic locomotives with drivers of 1.560 mm. Maybe they were inspired by the SNCF 141 R which were delivered from US and Canadian companies directly after the end of the war. These combined high pulling power and good acceleration with speeds in excess of 100 km/h, making them suited for all kinds of trains. In this case, North British delivered the first 25 locomotives in 1953 which were numbered 141.2101 to 141.2125.

In the years until 1960, four Spanish companies brought the total number to 242, making it the largest class of steam locomotives of RENFE. 53 each had come from MACOSA, MTM and Babcock & Wilcox, while Euskalduna delivered 58. Although they were officially limited to 90 km/h, they could reach 115 km/h.

Some were fired with coal and some with oil, with the oil-fired locomotives being designated 141F. On an incline of 2.1 percent, the coal-fired variants could haul 370 tonnes and the oil-fired ones even more. When 141F.2348 was withdrawn in June 1975, it was the last steam locomotive of RENFE. Today only the oldest 141F.2101 is surviving.

General
Built1952-1960
ManufacturerNorth British, Euskalduna, MTM, Babcock & Wilcox, MACOSA
Wheel arr.2-8-2 (Mikado)
Gauge5 ft 5 11/16 in (Iberian broad gauge)
Dimensions and Weights
Wheelbase35 ft 7 3/16 in
Rigid wheelbase16 ft 9 9/16 in
Total wheelbase64 ft 2 1/2 in
Service weight227,076 lbs
Adhesive weight158,733 lbs
Total weight367,069 lbs
Axle load39,022 lbs
Water capacity7,133 us gal
Fuel capacity4,755 us gal (oil)
Boiler
Grate area51.7 sq ft
Firebox area220.7 sq ft
Tube heating area2,787.9 sq ft
Evaporative heating area3,008.5 sq ft
Superheater area775 sq ft
Total heating area3,783.5 sq ft
Power Plant
Driver diameter61.4 in
Boiler pressure218 psi
Expansion typesimple
Cylinderstwo, 22 7/16 x 27 15/16 in
Power
Power sourcesteam
Estimated power2,950 hp (2,200 kW)
Top speed56 mph
Starting effort42,394 lbf
Calculated Values
steam locomotive
freight
passenger
last changed: 07/2025
