Steam Locomotives of the London, Brighton & South Coast Railway (LB&SCR)[Inhalt]
London, Brighton & South Coast Hackworth Singles
Great Britain | 1846
12 produced

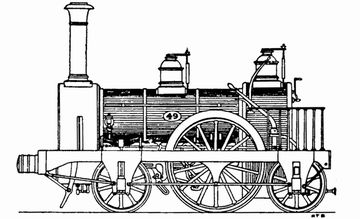

No. 49 as built
No. 49 as built
Locomotive Magazine, June 1896
No. 53 rebuilt as 2-4-0 passenger engine
No. 53 rebuilt as 2-4-0 passenger engine
Bradley: Locomotives of the London Brighton & South Coast Railway. Part 1
No. 49 rebuilt as 0-6-0T
No. 49 rebuilt as 0-6-0T
Locomotive Magazine, July 1907
No. 56 rebuilt as Crampton
No. 56 rebuilt as Crampton
Locomotive Magazine, August 1910
No. 58 rebuilt as 2-4-0T
No. 58 rebuilt as 2-4-0T
Locomotive Magazine, June 1896

From 1846, John Gray had twelve 2-2-2 express locomotives built for the LB&SCR, which are considered the forerunners of the Jenny Lind type. Although they had outer and inner frames, the driving axle with the six-foot wheels was only mounted on the inner frame. They already had a firebox with a round, raised ceiling, on which sat a second steam dome. They were said to be able to easily reach a speed of 40 mph with the train weights that were common at the time. Under Craven, all were converted to a different wheel arrangement in order to collect experiences with the properties of the different types and the respective suitability for different areas of application.

During the first conversion in 1853, four examples were converted into freight locomotives with a 2-4-0 wheel arrangement. The diameter of the coupled wheels was now four feet and nine inches. Later, three of them were converted into tank locomotives with 0-6-0 wheel arrangement by exchanging the leading axle for another coupled axle with the same wheel diameter

Between 1853 and 1855, six other engines were converted into passenger locomotives, which, like the freight locomotives, had 2-4-0 wheel arrangement. However, these had a coupling wheel diameter of five and a half feet. The fact that none of these were rebuilt again and remained in use until the 1870s suggests that they were considered successful in this form.

The other two locomotives were converted to the Crampton design, which was a special design with a crankshaft. At the front end, the two carrying axles sat a short distance apart in the frame and behind the firebox was the driving axle, the wheels of which were still six feet in diameter but clad in a wooden wheel disc with no visible spokes. The internal cylinders worked on a crankshaft and drove external coupling rods. Both locomotives only ran in this form for about two years and were converted into 2-4-0 freight locomotives in 1855. One of these two was converted into a tank locomotive with the same wheel arrangement in 1858 and remained in service until 1875.

VariantAuslieferungszustandUmbau 2-4-0 PersonenzugUmbau 0-6-0T
General
Built1846-18481852-18551853
ManufacturerHackworth
Axle config2-2-2 (Jenny Lind) 2-4-0 (Porter) 0-6-0T (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase15 ft 3 1/4 in
Rigid wheelbase15 ft 3 1/4 in
Service weight71,009 lbs
Adhesive weight71,009 lbs
Axle load28,448 lbs
Fuel capacitycoal
Boiler
Firebox area79 sq ft
Tube heating area700 sq ft
Evaporative heating area779 sq ft
Total heating area779 sq ft
VariantAuslieferungszustandUmbau 2-4-0 PersonenzugUmbau 0-6-0T
Power Plant
Driver diameter72 in66 in57 in
Boiler pressure100 psi
Expansion typesimple
Cylinderstwo, 15 x 24 intwo, 16 x 24 in
Power
Power sourcesteam
Estimated power180 hp (134 kW)
Optimal speed18 mph16 mph13 mph
Starting effort6,375 lbf6,955 lbf9,162 lbf
Calculated Values
steam locomotive
express
passenger
freight
tank locomotive
John Gray
last changed: 07/2022
London, Brighton & South Coast Jenny Lind Singles
Great Britain | 1847
10 produced

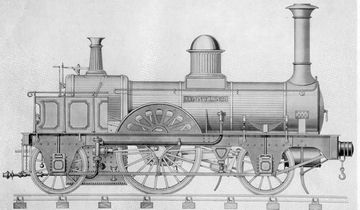

Drawing of the “Jenny Lind”
Drawing of the “Jenny Lind”
Practical Mechanics Magazine, Jahrgang 1848

The name “Jenny Lind” stands for three meanings at the same time: a single locomotive with this given name, the type that it founded and the wheel arrangement 2-2-2 is also called that, especially in Britain. The sponsor for the name was the Swedish opera singer Johanna Maria “Jenny” Lind, who was born in 1820 and achieved international fame in the 1840s. The locomotive that bears her name was the first of a series of ten express locomotives built from 1847 by E.B. Wilson and Company of Leeds for the London, Brighton & South Coast Railway. Other operators also ordered the same basic model with slightly different dimensions and no longer had each locomotive manufactured individually according to their special requirements. The “Jenny Lind” can thus be described as one of the first series-built locomotives, being available at the time for a base price of £2,500.

Although there were already several locomotives with the 2-2-2 wheel arrangement in the early days, this was chosen here in particular for its running characteristics. Since the wrought-iron coupling rods of the time still had problems with durability at higher speeds, a single driven axle with large wheels was used for use as an express locomotive. At that time, most locomotives with larger wheels had a slim, very long boiler, because it had to be placed above the axles and the aim was not to let the center of gravity become too high. This usually resulted in overhanging masses on the smoke box and the firebox, which had a negative impact on the running characteristics. The solution used on the “Jenny Lind” consisted of arranging the driven axle in the middle and arranging a carrying axle each at the front and rear with a long wheelbase.

State around 1853
State around 1853
Moore's Monthly Magazine, September 1896

Although the finished locomotive was a bit heavier than originally planned, it proved excellent in practice. In everyday use, it achieved the much-cited “a-mile-a-minute”, i.e. a speed of 60 mph. In addition to the first series for the LB&SCR, several orders soon came from other operators. For example, while the basic model had a wheel diameter of six feet, the Shrewsbury & Birmingham Railway ordered an example with 6.5 feet wheels, larger cylinders and a larger boiler. Other manufacturers were soon producing locomotives that were obviously based on the “Jenny Lind”. So it came about that the 2-2-2 wheel arrangement, which was actually referred to as “Single” up to this point, was soon also known as “Jenny Lind”.

General
Built1847
ManufacturerE. B. Wilson and Co.
Axle config2-2-2 (Jenny Lind)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase15 ft
Rigid wheelbase15 ft
Service weight53,800 lbs
Adhesive weight19,185 lbs
Axle load19,185 lbs
Fuel capacitycoal
Boiler
Grate area12.2 sq ft
Firebox area80 sq ft
Tube heating area720 sq ft
Evaporative heating area800 sq ft
Total heating area800 sq ft
Power Plant
Driver diameter72 in
Boiler pressure120 psi
Expansion typesimple
Cylinderstwo, 15 x 20 in
Power
Power sourcesteam
Estimated power200 hp (149 kW)
Optimal speed20 mph
Starting effort6,375 lbf
Calculated Values
steam locomotive
express
David Joy
James Fenton
last changed: 04/2022

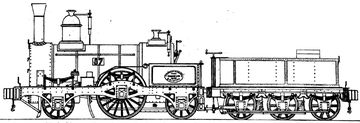

London, Brighton & South Coast Stothert-Slaughter 2-2-2
Great Britain | 1847
10 produced
Locomotive Magazine, March 1908

Among the 14 locomotives that Stothert, Slaughter & Co. supplied to the London, Brighton and South Coast Railway between 1846 and 1848 were ten express locomotives of the 2-2-2 wheel arrangement. Contrary to the practice of the time, they were characterized by a high boiler. The double frame was designed in sandwich construction, i.e. made of two metal sheets with wood inserted between them. While the outer frame ran the full length, the inner frame only ran from the back of the cylinders to the firebox

The locomotives were not used very long with express trains, as they were soon replaced by more powerful ones. As early as the 1960s, they were only used in front of light trains on main lines, as well as for piloting services and on secondary lines. Thus, between 1860 and 1862, three engines were decommissioned and the others were more and more often left unused in the engine shed. Six examples were retired in 1870 and the last one not until 1873.

General
Built1847-1848
ManufacturerStothert, Slaughter & Co.
Axle config2-2-2 (Jenny Lind)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase14 ft
Rigid wheelbase14 ft
Service weight63,616 lbs
Adhesive weight24,528 lbs
Axle load24,528 lbs
Fuel capacitycoal
Boiler
Power Plant
Driver diameter72 in
Expansion typesimple
Cylinderstwo, 15 x 22 in
Power
Power sourcesteam
Estimated power250 hp (186 kW)
Calculated Values
steam locomotive
express
last changed: 09/2022

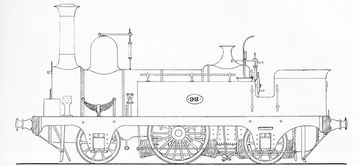

London, Brighton & South Coast Craven No. 98
Great Britain | 1859
only one produced
Locomotive Magazine, January 1897

This was a single tank engine built for light duties on branch lines. Special features were an outer sandwich frame in which the carrying axles were mounted and an inner frame made of metal in which the driving axle was mounted. It left the Brighton Works in 1859 and initially bore no name. In 1873 it was christened “Seaford” and renumbered twice. There are reports of two accidents involving it. It was retired in September 1879 after being used on the Bognor branch.

General
Built1859
ManufacturerBrighton
Axle config2-2-2T (Jenny Lind)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase13 ft 6 in
Rigid wheelbase13 ft 6 in
Service weight63,168 lbs
Adhesive weight22,400 lbs
Axle load22,400 lbs
Water capacity612 us gal
Fuel capacitycoal
Boiler
Power Plant
Driver diameter66 in
Expansion typesimple
Cylinderstwo, 15 x 20 in
Power
Power sourcesteam
Calculated Values
steam locomotive
passenger
tank locomotive
John Chester Craven
last changed: 03/2023
London, Brighton & South Coast Craven Small Singles of 1862 to 1866
Great Britain | 1862
10 produced
Former No. 233 “Horsham” as No. 6 of the West Lancashire Railway
Former No. 233 “Horsham” as No. 6 of the West Lancashire Railway
collection Dave Searle

Between 1862 and 1866, Craven had a total of ten small locomotives with a 2-2-2 wheel arrangement built for use in light express trains. It started with number 31, which was delivered in December 1962. It had larger driving wheels than any of its successors at six and a half feet and cylinders measuring 16 inches in diameter and 22 inches in stroke. It had a full-length outer frame, but the driving wheels were only mounted in the inner frame, while the carrying wheels were mounted in the outer frame. The inside cylinders were controlled by a Stephenson valve gear. It was not until September of the following year that number 161 followed, which only had a driving wheel diameter of six feet and whose cylinders had a larger diameter but a shorter stroke.

No. 31 with inside bearing of the driving axle
No. 31 with inside bearing of the driving axle
Locomotive Magazine, April 1897

In 1864 numbers 190 and 191 were built, and in the following year 29 and 30, all of which were similar. Their wheel diameter was only five and a half feet. With these, all three axles were mounted in the outer frame and the driving axle in addition in the inner frame. One difference was that the first two had an Allan valve gear and the last two had a Stephenson valve gear. A further four locomotives, each almost identical in construction, were built in 1966 for the service between Portsmouth and London and given the numbers 232 to 235. These again had a wheel diameter of six feet

No. 30 with double bearing of the driving axle
No. 30 with double bearing of the driving axle
Locomotive Magazine, May 1897

Four of the ten locomotives had been given names during their service life that were based on locations along the routes or where they were stationed. These were “Littlehampton”, “Havant”, “Horsham” and “Dorking”. The decommissioning took place between 1880 and 1886. Only numbers 233 and 235 were sold to the West Lancashire Railway in 1883 and were used there until 1887.

Variant3116129, 30232-235
General
Built1862186318651866
ManufacturerBrighton
Axle config2-2-2 (Jenny Lind)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase15 ft 9 in13 ft 8 1/2 in13 ft 10 in14 ft 6 in
Rigid wheelbase15 ft 9 in13 ft 8 1/2 in13 ft 10 in14 ft 6 in
Service weight64,176 lbs61,040 lbs62,048 lbs68,992 lbs
Adhesive weight28,896 lbs24,752 lbs28,224 lbs28,336 lbs
Axle load28,896 lbs24,752 lbs28,224 lbs28,336 lbs
Fuel capacitycoal
Boiler
Firebox area80 sq ft75 sq ft
Tube heating area911 sq ft880 sq ft812 sq ft
Evaporative heating area991 sq ft960 sq ft887 sq ft
Total heating area991 sq ft960 sq ft887 sq ft
Variant3116129, 30232-235
Power Plant
Driver diameter78 in72 in66 in72 in
Expansion typesimple
Cylinderstwo, 15 x 22 intwo, 16 x 20 intwo, 15 x 20 intwo, 16 x 20 in
Power
Power sourcesteam
Estimated power250 hp (186 kW)240 hp (179 kW)220 hp (164 kW)270 hp (201 kW)
Calculated Values
steam locomotive
express
John Chester Craven
last changed: 01/2023
London, Brighton & South Coast Craven Standard Goods
Great Britain | 1863
19 produced

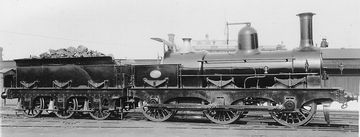

No. 211
No. 211
collection Dave Searle

In the early 1860s, John Chester Craven developed a standard heavy freight train type that was to be built in larger numbers with only minor variations. These were six-coupled machines with outer and inner frames, internal cylinders and Stephenson valve gear. They were manufactured at LB&SCR's Brighton works.

Fifteen examples were built between 1863 and 1867, with cylinders measuring 16 by 24 inches and a wheel diameter of five feet. The running numbers were between 157 and 221 with gaps. In 1867 four more examples were built with the numbers 224 to 227. The diameters of the cylinders and the coupled wheels had each been increased by an inch.

Locomotive Magazine, October 1897

There were some differences in the locomotives between the individual production lots, which mainly affected the boiler. It was observed that the firebox gradually got larger in area, while the tube heating area decreased. Most engines were retired between 1893 and 1895, only number 225 survived until 1901.

VariantNo. 168, 169No. 224-227
General
Built18631866
ManufacturerBrighton
Axle config0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length loco24 ft 1 1/2 in24 ft 9 in
Total wheelbase15 ft 9 in15 ft 11 in
Service weight75,712 lbs88,032 lbs
Adhesive weight75,712 lbs88,032 lbs
Axle load32,256 lbs31,584 lbs
Fuel capacitycoal
Boiler
Firebox area86 sq ft106 sq ft
Tube heating area1,187 sq ft870 sq ft
Evaporative heating area1,273 sq ft976 sq ft
Total heating area1,273 sq ft976 sq ft
VariantNo. 168, 169No. 224-227
Power Plant
Driver diameter60 in61 in
Boiler pressure130 psi
Expansion typesimple
Cylinderstwo, 16 x 24 intwo, 17 x 24 in
Power
Power sourcesteam
Starting effort11,315 lbf12,564 lbf
Calculated Values
steam locomotive
freight
John Chester Craven
last changed: 07/2022
London, Brighton & South Coast Craven South London Tanks
Great Britain | 1865
10 produced
No. 213 after being renumbered to 414 in March 1880
No. 213 after being renumbered to 414 in March 1880
collection Dave Searle
No. 212
No. 212
Locomotive Magazine, August 1897
No. 214 after being renumbered to 369 in May 1878
No. 214 after being renumbered to 369 in May 1878
Locomotive Magazine, October 1897
No. 230
No. 230
Locomotive Magazine, November 1897
No. 231
No. 231
collection Dave Searle
No. 231
No. 231
Locomotive Magazine, December 1897

A total of ten small tank locomotives were grouped together under the name "South London Tanks", which showed a few differences and were built by Craven for operation in the southern suburbs of London. The first was number 212, built in July 1865 and intended for the line between South Croydon and Victoria station. It had an inner frame with inside cylinders and water tanks on the sides and under the cab. Since the tanks had a total capacity of only 645 gallons, in July 1868 another 155 gallon tank was integrated into the front of the frame, extending brlow the cylinders.

Also in July 1865 followed number 213, which now had an outer frame and belonged to a standard Craven type. It was slightly heavier than the 212, but only had a cylinder diameter of 15 instead of 16 inches. The 214 and 215 followed in November, which had a total of three water tanks in the frame instead of the side tanks. Otherwise they had a lot in common with the 213. In April 1866 Nos. 17 and 216 to 218 were built, again largely the identical to the 213 and having side tanks but with larger water and coal supplies.

Number 230, which was completed in October 1866, showed greater differences. The wheel sets were hinged in an inner frame, while there was still an outer subframe. It had a larger boiler and, like the 212, a cylinder diameter of 16 inches. The 231 delivered in the same month showed even greater differences, which had a bogie instead of a trailing axle due to significantly increased stocks.

Most engines have been renumbered over the course of their service life. There were no major modifications to the locomotives. However, they were only expected to have a relatively short life, as all were scrapped in the first half of the 1880s.

Variant212213230231
General
Built18651866
ManufacturerBrighton
Axle config0-4-2T 0-4-4T (Forney)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length24 ft 3 in25 ft 1 in25 ft 2 1/2 in
Wheelbase14 ft 3 in15 ft 10 in14 ft 4 in22 ft
Rigid wheelbase14 ft 3 in15 ft 10 in14 ft 4 in7 ft 3 in
Service weight75,040 lbs81,536 lbs79,408 lbs
Adhesive weight53,312 lbs55,104 lbs53,872 lbs58,240 lbs
Axle load28,000 lbs29,792 lbs27,216 lbs31,360 lbs
Water capacity775 us gal963 us gal1,110 us gal
Fuel capacity2,912 lbs (coal)2,800 lbs (coal)coal
Boiler
Firebox area86 sq ft90 sq ft
Tube heating area829 sq ft840 sq ft
Evaporative heating area915 sq ft930 sq ft
Total heating area915 sq ft930 sq ft
Variant212213230231
Power Plant
Driver diameter60 in
Expansion typesimple
Cylinderstwo, 16 x 20 intwo, 15 x 20 intwo, 16 x 20 in
Power
Power sourcesteam
Estimated power300 hp (224 kW)325 hp (242 kW)350 hp (261 kW)
Calculated Values
steam locomotive
passenger
tank locomotive
John Chester Craven
last changed: 09/2022
London, Brighton & South Coast No. 96
Great Britain | 1869
only one produced

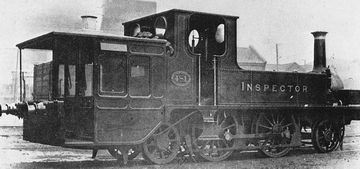

After being rebuilt in No. 481 “Inspector”
After being rebuilt in No. 481 “Inspector”
Locomotive Magazine, May 1898
Schematic drawing: original state
Schematic drawing: original state
www.lbscr.org
Schematic drawing after the 1877 rebuild
Schematic drawing after the 1877 rebuild
Locomotive Magazine, May 1898
Schematic drawing after the rebuild to No. 481 “Inspector”
Schematic drawing after the rebuild to No. 481 “Inspector”
Locomotive Magazine, May 1898

The LB&SCR commissioned a small tank engine in 1869 to haul light passenger trains on the branch line between Brighton Central and Kemp Town. The locomotive was initially given the number 96 and the name “Kemp Town”. In 1874 it was transferred to Havant near Portsmouth and given the number 115 while she was named “Hayling Island”.

In its new location it soon underwent a makeover to plans by William Stroudley, incorporating a new chimney, larger steam dome and cab. During this time the running number changed twice, first to 359 and then to 499.

A major remodeling was also carried out under Stroudley in 1889. A passenger compartment was installed behind the driver's cab for inspection trips along the routes of the LB&SCR. To carry the additional weight, a trailing axle was attached at the same time, which, like the leading axle, was fixed in the frame. In this form, the locomotive received the number 481 and the name “Inspector”. Its service in this role lasted for at least a decade.

Variantas builtrebuilt
General
Built18691898
ManufacturerSharp, Stewart & Co.
Axle config2-4-0T (Porter) 2-4-2T
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase11 ft
Rigid wheelbase11 ft
Service weight43,456 lbs
Adhesive weight30,016 lbs
Axle load15,680 lbs
Fuel capacitycoal
Boiler
Firebox area33.8 sq ft
Tube heating area278.5 sq ft
Evaporative heating area312.3 sq ft
Total heating area312.3 sq ft
Variantas builtrebuilt
Power Plant
Driver diameter48 in
Boiler pressure130 psi
Expansion typesimple
Cylinderstwo, 10 x 16 in
Power
Power sourcesteam
Estimated power80 hp (60 kW)
Optimal speed14 mph
Starting effort3,683 lbf
Calculated Values
tank locomotive
passenger
inspection engine
last changed: 06/2022
London, Brighton & South Coast class A1 “Terrier”
Great Britain | 1872
50 produced

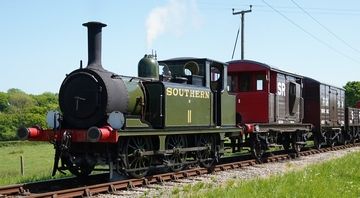

Southern Railway W11 “Newport” in May 2022 on the Isle of Wight“”
Southern Railway W11 “Newport” in May 2022 on the Isle of Wight“”
kitmasterbloke

For commuter traffic in the south and southeast of London, William Stroudley developed the class A1, of which a total of 50 were built between 1872 and 1880. The tank locomotives with an 0-6-0T wheel arrangement had small driving wheels and were able to rapidly accelerate the commuter trains of that time. Nevertheless, they were able to reach speeds of up to 60 mph (97 km/h) and a sustained speed of just under 50 mph (80 km/h). Because of their small size and barking exhaust noise, they were nicknamed “terriers”.

With the introduction of the more powerful class D1 with 0-4-2T wheel arrangement and the electrification of the first commuter lines, they were no longer needed in the London area. 23 were sold to various other operators and the remainder distributed to rural lines, mainly in Sussex. There they were mostly used in passenger service, sometimes also as push-pull trains. Others were used in shunting duties.

Between 1911 and 1913, 17 A1s were rebuilt into the A1X, becoming heavier and having, among other things, larger cylinders and a longer smokebox. Many survived the Southern Railway and came to the British Railways. Many retirements only came from 1960 onwards. The last ones only disappeared in November 1963 when the Hayling Island Branch was closed.

Variantas builtrebuilt A1X
General
Built1872-1880
ManufacturerBrighton
Axle config0-6-0T (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length26 ft 0 1/2 in
Wheelbase12 ft
Rigid wheelbase12 ft
Service weight61,608 lbs63,165 lbs
Adhesive weight61,608 lbs63,165 lbs
Water capacity600 us gal
Fuel capacitycoal
Boiler
Grate area10 sq ft
Firebox area55 sq ft
Tube heating area528 sq ft
Evaporative heating area583 sq ft
Total heating area583 sq ft
Variantas builtrebuilt A1X
Power Plant
Driver diameter48 in
Boiler pressure140 psi150 psi
Expansion typesimple
Cylinderstwo, 12 x 20 intwo, 14 x 20 in
Power
Power sourcesteam
Estimated power220 hp (164 kW)250 hp (186 kW)
Optimal speed20 mph15 mph
Starting effort7,140 lbf10,412 lbf
Calculated Values
steam locomotive
passenger
tank locomotive
William Stroudley
last changed: 01/2024
London, Brighton & South Coast No. 53
Great Britain | 1873
only one produced
collection Dave Searle

The machine numbered LB&SCR number 53 was one of four locomotives which were originally destined for the Tunis & Goletta Railway, where one of Craven's sons was involved. After he had died and the railway went bankrupt, the locomotives found other operators. After only works No. 2241 could be sold to the Jersey Railway, 2242 was bought by Stroudley and thus joined the LB&SCR at Craven's suggestion.

It was first used in front of light passenger trains over short distances on main lines and was renumbered as early as November 1875 to number 270 with the name “Bishopstone”. The single locomotive was also used in part to transport high-ranking personalities to an audience with Queen Victoria. After a few years it disappeared from the main line and was subsequently used on branch lines between London Bridge, Victoria, Epsom and Leatherhead. After being renamed “Fratton” and two more renumberings, its career ended in September 1890.

General
Built1873
ManufacturerSharp, Stewart & Co.
Axle config2-4-0T (Porter)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase12 ft 5 in
Rigid wheelbase12 ft 5 in
Water capacity576 us gal
Fuel capacitycoal
Boiler
Firebox area47 sq ft
Tube heating area523 sq ft
Evaporative heating area570 sq ft
Total heating area570 sq ft
Power Plant
Driver diameter48 in
Boiler pressure130 psi
Expansion typesimple
Cylinderstwo, 12 x 17 in
Power
Power sourcesteam
Estimated power150 hp (112 kW)
Optimal speed17 mph
Starting effort5,636 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
John Chester Craven
last changed: 09/2022
loading...

We use cookies to save the following settings:

  • selected navigation structure
  • selected language
  • preferred units
  • spelling of railway company names

If you refuse the use of cookies, the settings will only be retained for the current session and will be reset to the default values the next time you visit the site.

Display of units

Here you can set the desired unit system for the technical data.

  • Metric: Lengths in meters, weights in tonnes, and volumes in cubic meters
  • Imperial (UK): Lengths in feet/inches, weights in long tons and volumes in imperial gallons
  • Imperial (US): Lengths in feet/inches, weights in pounds, and volumes in US gallons
  • Individual: Depends on the country of origin of each locomotive
Operator names

Here you can set the display of railway company names.

  • Short: Abbreviation or short form of the name
  • Standard: commonly used name, partially translated to English
  • Complete: full name in local language
