Imperial-Royal State Railways U
Austrian Federal Railways class 298, Czechoslovak State Railways class U 37 and Yugoslav Railway class 188
go back
Austria | 1894
61 produced

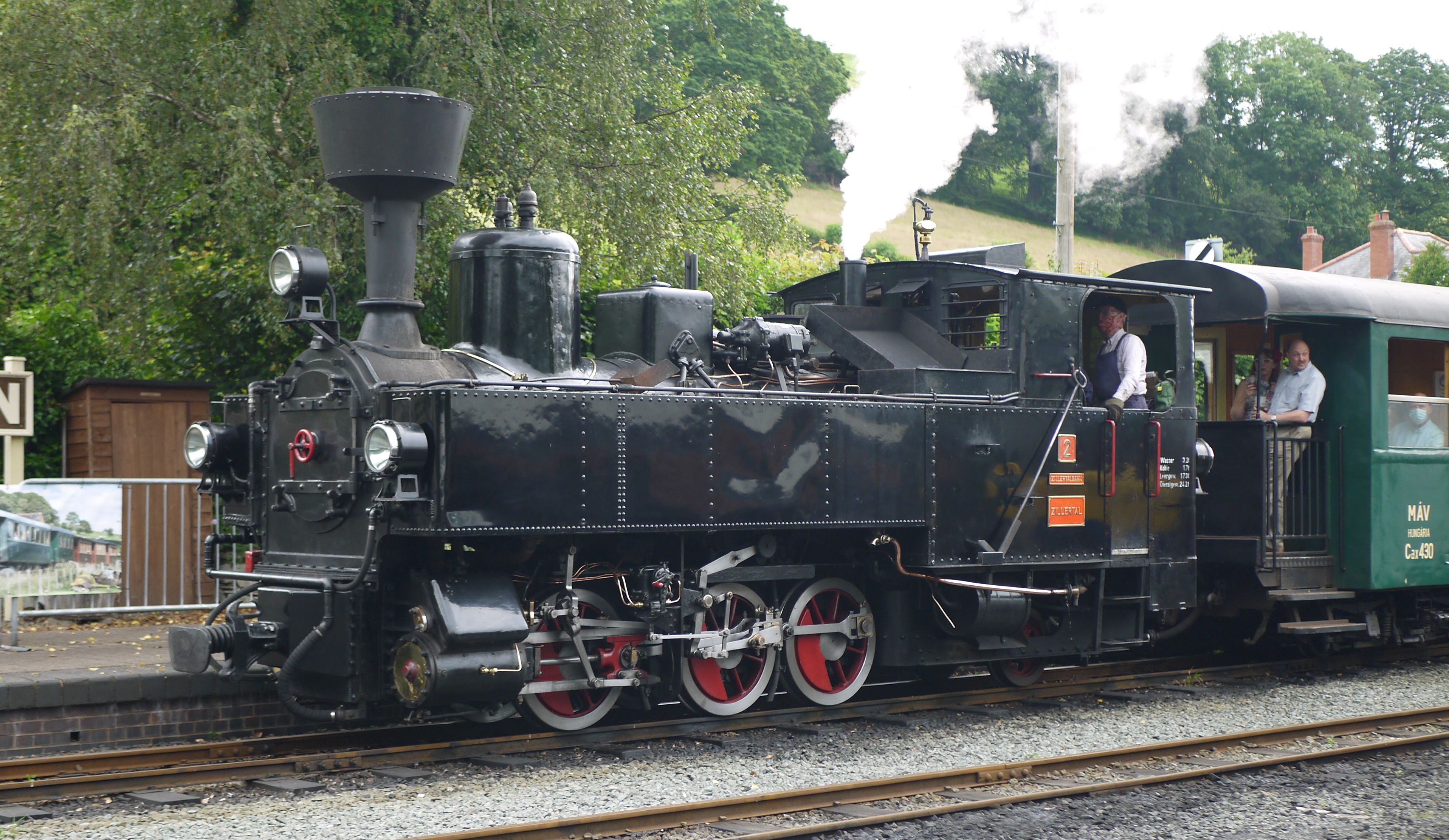

A locomotive of the Zillertalbahn on visit at Llanfair
A locomotive of the Zillertalbahn on visit at Llanfair
Peter Glyn

The U is a 0-6-2T narrow gauge locomotive built in larger numbers for several lines in Austria. The first ones were ordered by the Murtalbahn in 1894 that was operated by the kkStB. They were essentially an enlarged variant of the number 1 to 6 of the Steytalbahn. A Krauss-Helmholtz bogie connected the trailing axle with the rear driving axle, resulting in a rigid wheelbase of only 1,200 mm. Maximum train weight on the level was 515 tonnes and 90 tonnes could be hauled on two percent with 20 km/h.

In the next years, several railways in the Austrian part of the empire ordered the same model. Most were built for a gauge of 760 mm, but some in the North also for 750 mm. Production only stopped in 1922 when much more modern locomotives had been available. The Uv of the NÖLB was a variant of the U with compound engine. After a single superheated Uh ordered by the NÖLB, the BBÖ also ordered several Uh in the late twenties.

After World War I, a number of locomotives with both gauges stayed in Czechoslovakia and were designated U 37. Others were now located in Poland, Italy or Yugoslavia. The locomotives which were still in Austria became ÖBB class 298 in 1953. In Czechoslovakia, the first ones were replaced by diesel power in the late fifties and by 1964, all were withdrawn from regular service in this country. Today, some can still be found either on display or in working order with several preserved railways.

General
Built1894-1922
ManufacturerKrauss Linz, StEG, BMMF, Wiener Neustadt, Floridsdorf
Wheel arr.0-6-2T (Webb)
Gauge2 ft 5 15/16 in (Bosnian gauge), 2 ft 5 1/2 in
Dimensions and Weights
Length23 ft 6 3/4 in
Wheelbase13 ft 1 1/2 in
Rigid wheelbase3 ft 11 1/4 in
Empty weight40,345 lbs
Service weight53,572 lbs
Adhesive weight42,990 lbs
Axle load14,330 lbs
Water capacity845 us gal
Fuel capacity3,086 lbs (coal)
Boiler
Grate area10.8 sq ft
Firebox area47.6 sq ft
Tube heating area498 sq ft
Evaporative heating area545.6 sq ft
Total heating area545.6 sq ft
Power Plant
Driver diameter31.5 in
Boiler pressure174 psi
Expansion typesimple
Cylinderstwo, 11 7/16 x 15 3/4 in
Power
Power sourcesteam
Indicated power215 hp (160 kW)
Top speed22 mph
Starting effort9,639 lbf
Calculated Values
steam locomotive
tank locomotive
freight
passenger
narrow gauge
