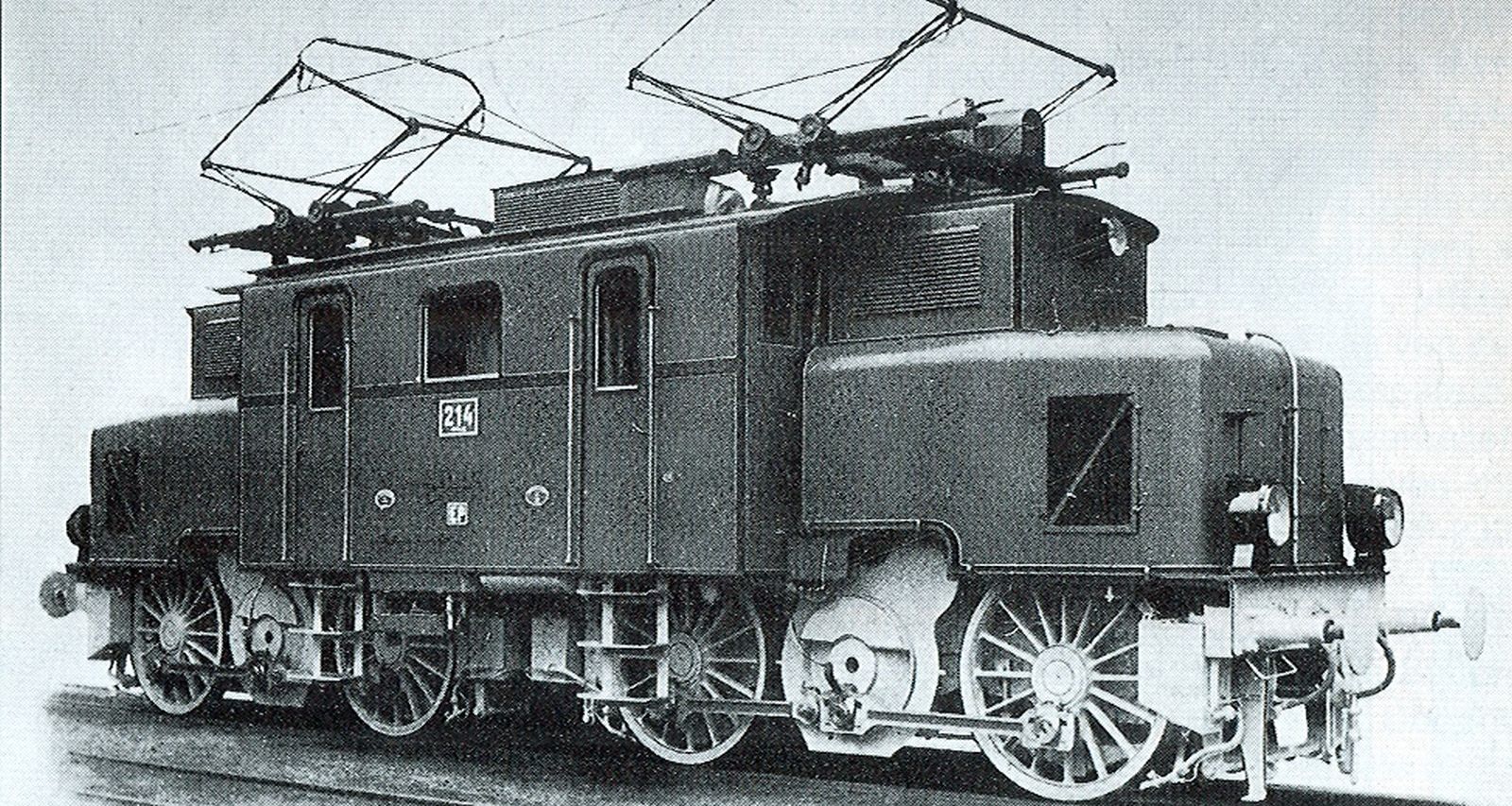

loco-info.com - Preußische EP 213 bis 219

Maße und Gewichte
Länge	42 ft 3 7/8 in	43 ft 10 3/4 in
Radstand	29 ft 10 1/4 in	30 ft 9 5/16 in
Dienstmasse	167,551 lbs	170,197 lbs
Reibungsmasse	167,551 lbs	170,197 lbs
Achslast	41,888 lbs	42,549 lbs

Kessel

Kessel

Variante	E 41¹	E 41²

Triebwerk

Triebwerk

Antrieb
Antrieb	Elektro - Wechselstrom
Stromsystem	15.000 V 16⅔ Hz
Stundenleistung	1,126 hp (840 kW)	1,046 hp (780 kW)
Dauerleistung	992 hp (740 kW)	798 hp (595 kW)
Max. Geschwindigkeit	43 mph
Anfahrzugkraft	30,349 lbf

Berechnete Werte
Adhäsionskoeffizient	1 : 5.52	1 : 5.61
Leistungsgewicht	0.0067 hp/lb	0.0061 hp/lb
Reibungsmasse/Gesamt	1 : 1.00

E-Lok

Personenzug

Stangenantrieb
