Soviet Railways ОР23 (OR23)
go back
Soviet Union | 1949
only one produced

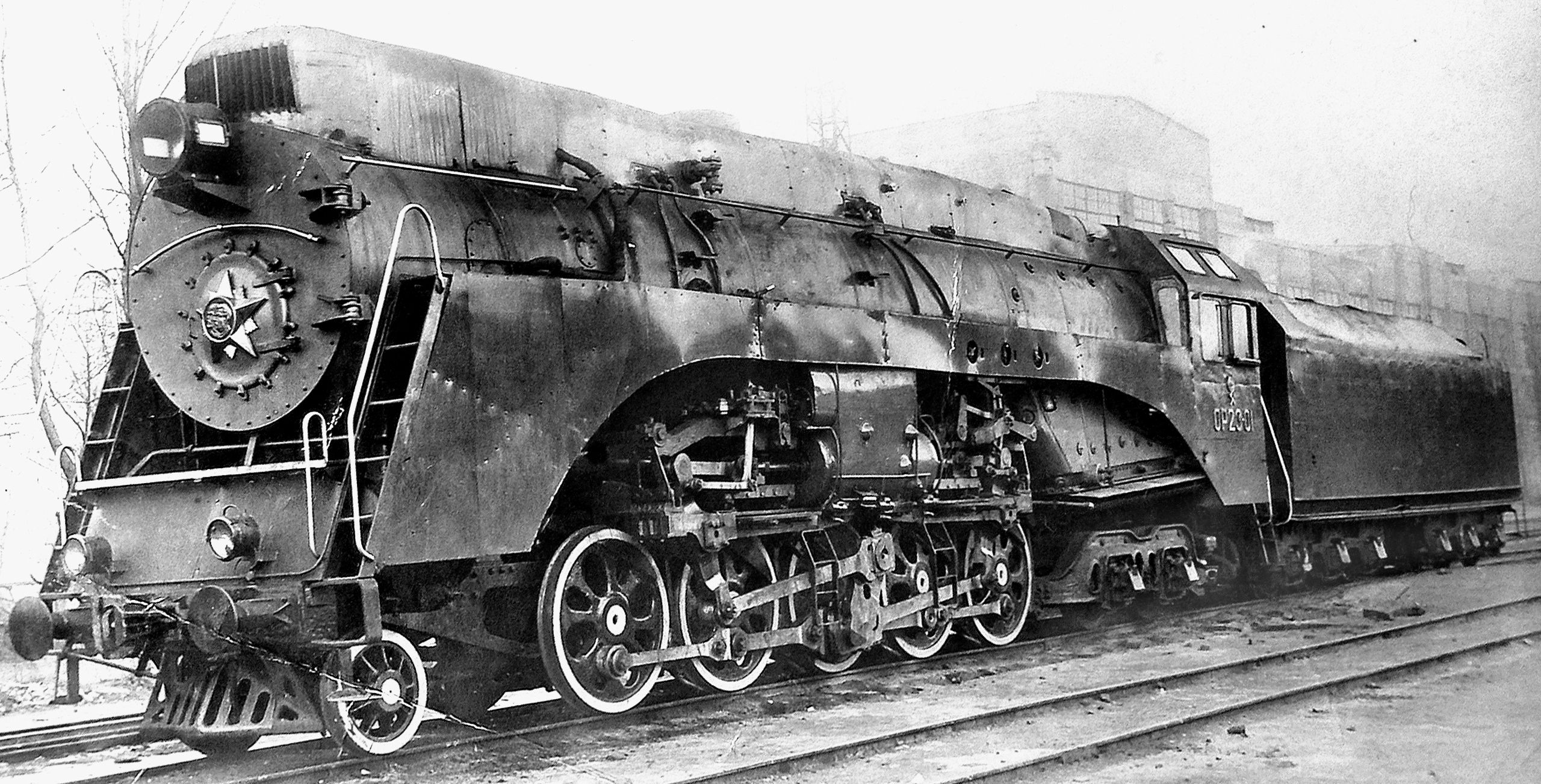

Image of locomotive

This locomotive was a unique prototype built for the growing freight demands after the Great Patriotic War, utilizing the Brown engine with opposing pistons. It had the wheel arrangement 2-10-4 and the cylinders were mounted above the third driving axle. This resulted in smaller moving masses, intended to reduce the hammer blow on the tracks. Maximum power was produced with an axle load of 23 tonnes, made possible by new tracks. Its indicated continuous power is being given with 2,500 hp, but it is likely that the large boiler was able to produce more power. Nevertheless, this locomotive was only tested for a short time and diesel locomotives were ordered instead. The later whereabouts of the ОР23 ware uncertain, but it was probably passed back to the manufacturer and scrapped.

General
Built1949
ManufacturerLuhansk
Wheel arr.2-10-4 (Texas)
Gauge4 ft 11 13/16 in (Russian broad gauge)
Dimensions and Weights
Length96 ft 11 in
Length loco55 ft 0 7/16 in
Service weight370,597 lbs
Adhesive weight254,413 lbs
Axle load50,927 lbs
Fuel capacitycoal
Boiler
Grate area88.3 sq ft
Evaporative heating area3,487.5 sq ft
Superheater area2,012.8 sq ft
Total heating area5,500.4 sq ft
Power Plant
Driver diameter59.1 in
Boiler pressure247 psi
Expansion typesimple
Cylindersfour, 20 1/2 x 25 3/8 in
Power
Power sourcesteam
Estimated power3,353 hp (2,500 kW)
Top speed56 mph
Starting effort75,550 lbf
Calculated Values
steam locomotive
freight
prototype
