Thuringian Railway No. 97 to 134
go back
Germany | 1868
38 produced

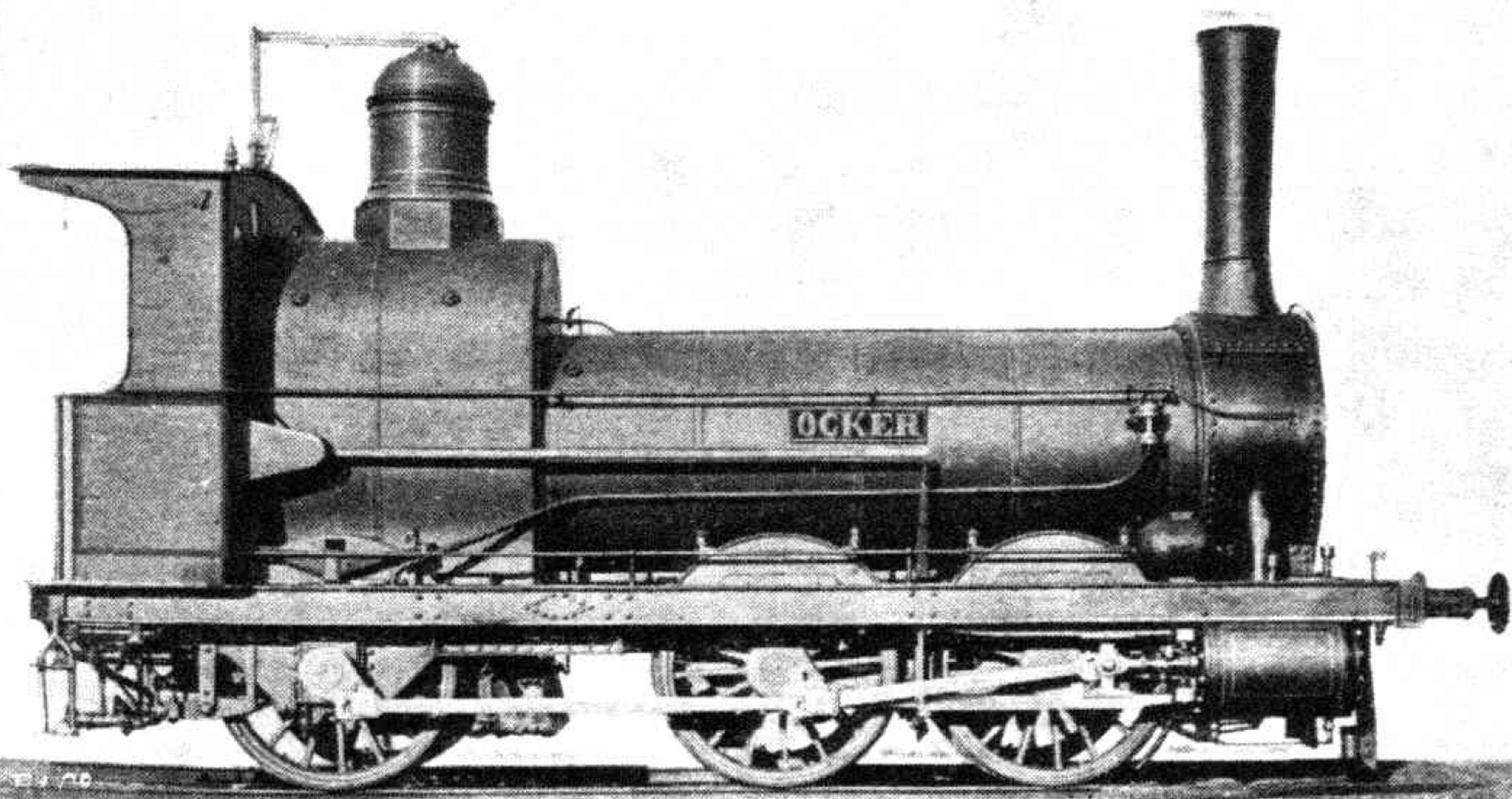

Image of locomotive
Die Lokomotive, March 1908

These locomotives were a standard freight type of this railway in central Germany. They featured a round-topped firebox that was much higher than the boiler barrel and was crowned by a large dome. With this configuration it was possible to get dry steam for feeding the cylinders. It had three coupled axles with the unique feature that the first two were mounted in inside frames, while the third one was mounted far back in outside frames to make space for the firebox. This ensured both good curve negotiation and enough support for the heavy firebox. The first five were built by Borsig in 1968, among which was the “Ocker” that can be seen in the photo. The 33 others came from Vulcan of Szczecin.

General
Built1868
ManufacturerBorsig, Vulcan
Wheel arr.0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase13 ft 4 9/16 in
Rigid wheelbase13 ft 4 9/16 in
Empty weight77,162 lbs
Service weight87,082 lbs
Adhesive weight87,082 lbs
Axle load30,203 lbs
Fuel capacitycoal
Boiler
Grate area18.2 sq ft
Firebox area81.4 sq ft
Tube heating area1,227.7 sq ft
Evaporative heating area1,309.1 sq ft
Total heating area1,309.1 sq ft
Power Plant
Driver diameter54 in
Boiler pressure106 psi
Expansion typesimple
Cylinderstwo, 18 x 22 5/8 in
Power
Power sourcesteam
Estimated power335 hp (250 kW)
Starting effort12,202 lbf
Calculated Values
steam locomotive
freight
last changed: 09/2026
