Furness Railway class 1
Rush class D5
go back
Great Britain | 1913
19 produced

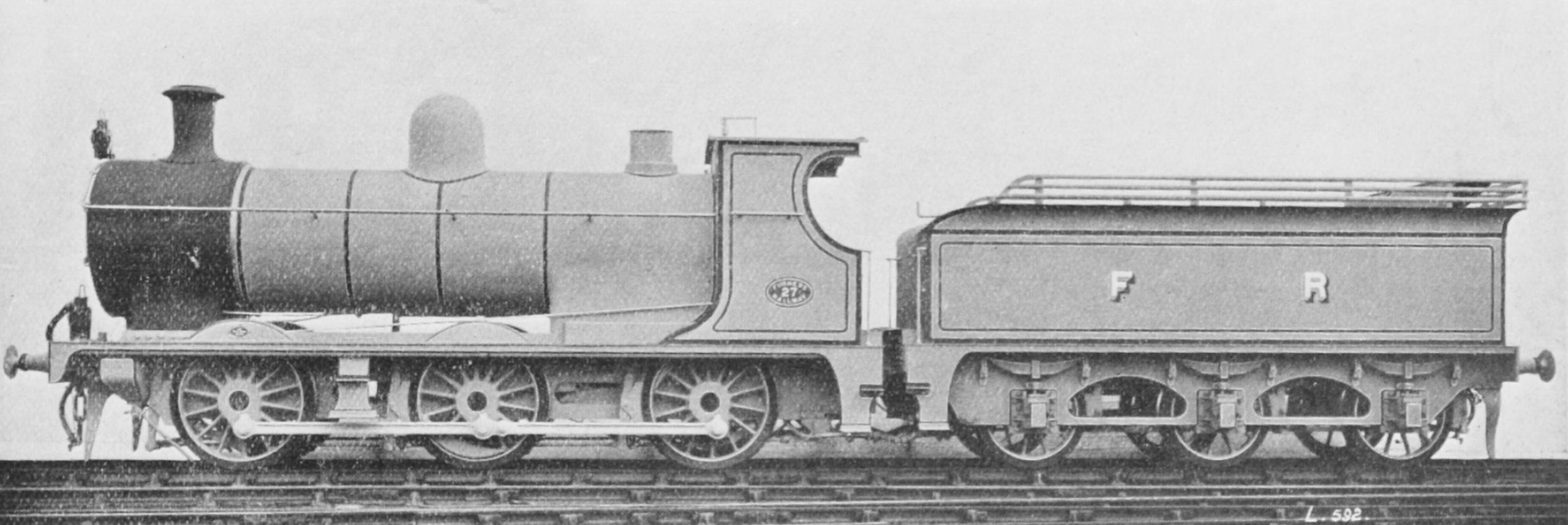

Image of locomotive
Locomotive Magazine, August 1914

The last design of 0-6-0 goods locomotives built for the Furness Railway was classified D5 by Bob Rush. They had been designed by W.F. Pettigrew and used the same boiler and the same 18 by 26 inch cylinders as the class 94 (L4) “Improved Cleator Tanks” and the class 130 (K4) 4-4-0. The first six were built by North British in 1913 and 1914. These were followed by four from Kitson in 1918 and nine more from North British between 1918 and 1920. The first two had gotten the numbers 1 and 2, while the others were numbered 19 to 35. The LMS inherited all in 1923 and numbered them 12494 to 12512. 13 were withdrawn between 1930 and 1935, but the other six came to British Railways in 1948. There their running numbers were increased by 40000. 52508 already quit service in 1950, but the other five only followed in 1956 and 1957.

General
Built1913-1920
ManufacturerNorth British, Kitson & Co.
Wheel arr.0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length51 ft 11 in
Wheelbase15 ft 6 in
Rigid wheelbase15 ft 6 in
Total wheelbase39 ft 4 1/2 in
Service weight100,464 lbs
Adhesive weight100,464 lbs
Total weight184,240 lbs
Water capacity3,963 us gal
Boiler
Grate area20.5 sq ft
Firebox area107 sq ft
Tube heating area1,139 sq ft
Evaporative heating area1,246 sq ft
Total heating area1,246 sq ft
Power Plant
Driver diameter55.5 in
Boiler pressure170 psi
Cylinderstwo, 18 x 26 in
Power
Calculated Values
steam locomotive
freight
William Frank Pettigrew
