Gotthard Railway Ec 3/3
go back
Switzerland | 1897
12 produced

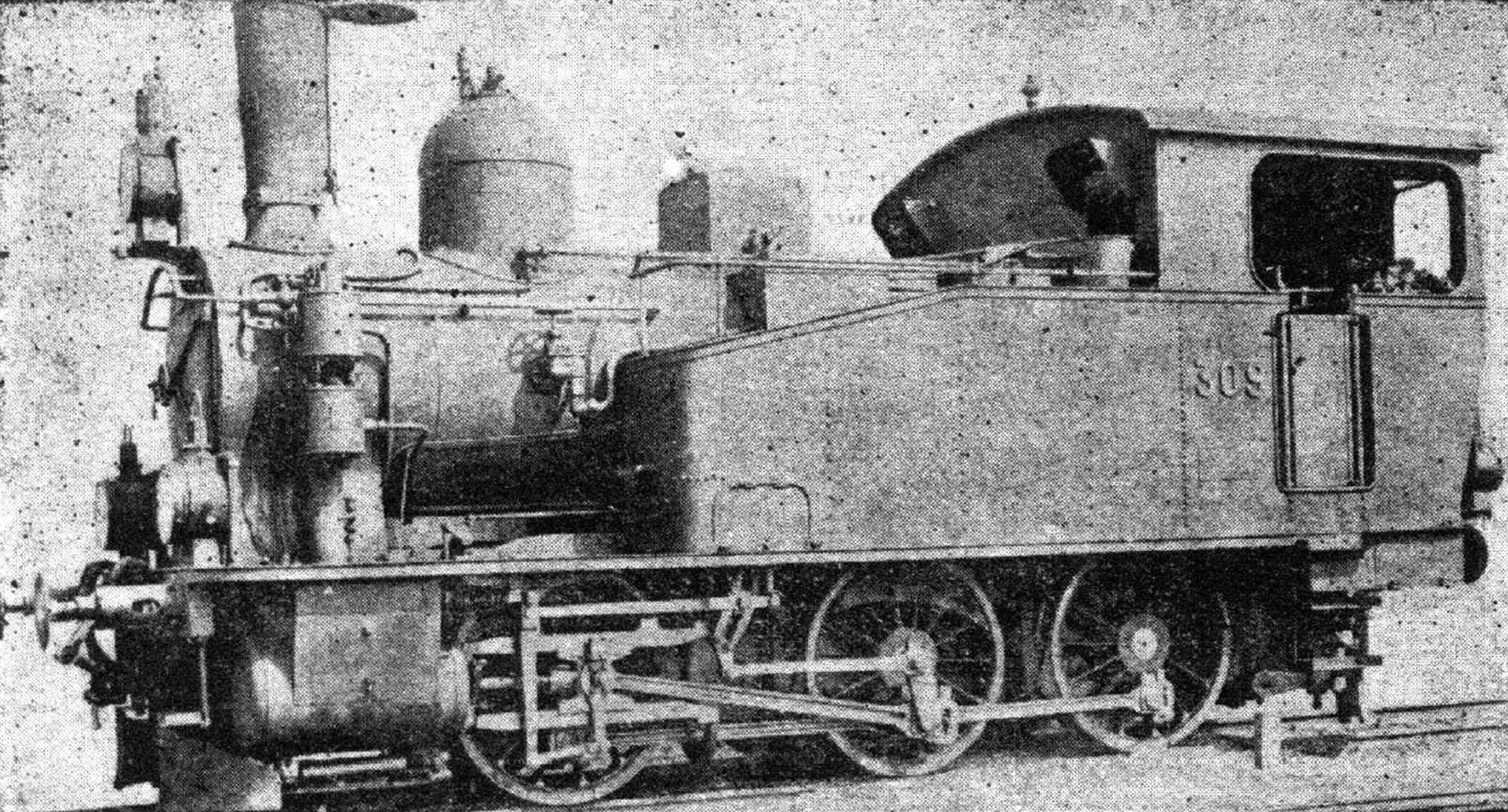

Image of locomotive
Die Lokomotive, October 1924

The Ec 3/3 was ordered when the shunting duties in large stations and yards grew. Numbers 301 to 306 were delivered by SLM in 1897, followed by 307 to 312 in 1901. With a service weight of 42.7 tonnes, they were the heaviest shunting locomotives in Switzerland at that time. They had drivers of 1,230 mm and cylinders which measured 380 mm in diameter and 600 mm in stroke. Their water tanks had a capacity of 4.5 tonnes and were sloped at the front to increase visibility. Although not designed for line service, they had an air brake and were equipped for steam heating.

Variant301-306307-312
General
Built18971901
ManufacturerSLM
Wheel arr.0-6-0ST (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length26 ft 10 13/16 in
Wheelbase11 ft 1 7/8 in
Rigid wheelbase11 ft 1 7/8 in
Empty weight73,414 lbs
Service weight94,137 lbs
Adhesive weight94,137 lbs
Water capacity1,189 us gal
Fuel capacity3,968 lbs (coal)
Boiler
Grate area14 sq ft
Firebox area73.2 sq ft
Tube heating area796.1 sq ft776.1 sq ft
Evaporative heating area869.3 sq ft849.3 sq ft
Total heating area869.3 sq ft849.3 sq ft
Variant301-306307-312
Power Plant
Driver diameter48.4 in
Boiler pressure174 psi
Expansion typesimple
Cylinderstwo, 14 15/16 x 23 5/8 in
Power
Power sourcesteam
Indicated power394 hp (294 kW)
Top speed37 mph
Starting effort16,149 lbf
Calculated Values
steam locomotive
tank locomotive
switcher
