Emperor Ferdinand Northern Railway Ve
Imperial-Royal State Railways class 159 and Czechoslovak State Railways class 334.0
go back
Austria-Hungary | 1890
14 produced

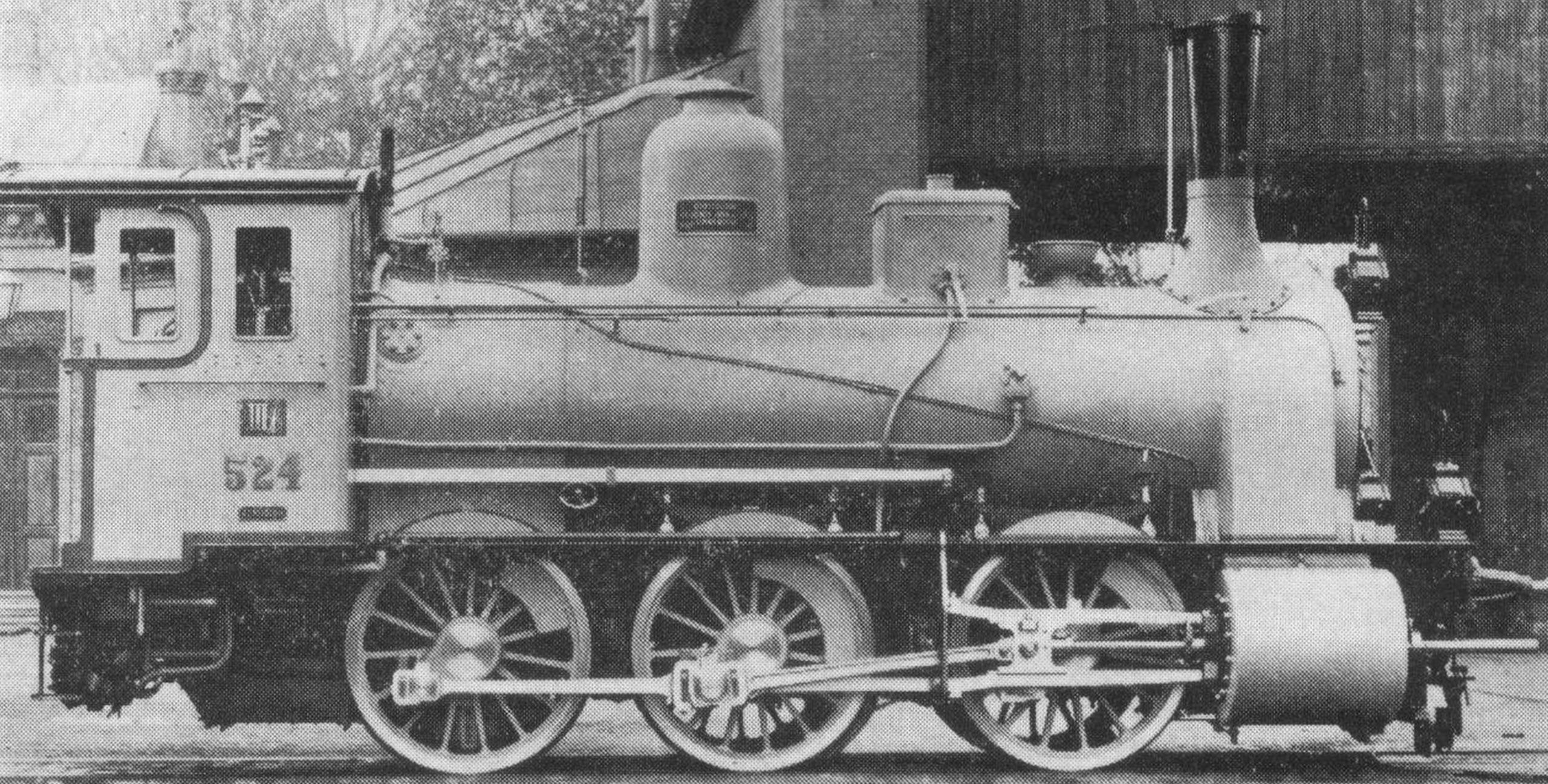

No. 524, later 159.18
No. 524, later 159.18

The Ve was a series of 14 0-6-0 locomotives built in 1890 and 1891 for the KFNB. Designed for express freight service, the driver diameter measured 1,400 mm. They had inside frames and outside cylinders. The grate area was 2.2 square meters, but the tube heating surface differed between the locomotives. While the first two, numbers 511 and 512 had 117.5 square meters, all others had 124 square meters. Ten were two-cylinder compounds with cylinder diameters of 480 and 740 mm and four were simples with two cylinders of 460 mm.

The series was numbered 511 to 524. As it was found out that the compound variant was better suited for express freights, the simple locomotives 515 to 518 were later used for shunting and transfer duties at coal mines. The large number of the type IIIq built by MÁVAG for the MÁV from 1893 was very similar to the Ve. In 1909, the KFNB locomotives became kkStB class 159. After World War I, all came to the ČSD and were designated class 334.0. The first ones were withdrawn in 1933, but withdrawals of larger numbers started in 1951 and the last one was gone in 1962.

VariantCompoundSimple
General
Built1890-1891
ManufacturerWiener Neustadt
Wheel arr.0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length28 ft 10 9/16 in
Length loco50 ft 6 7/16 in
Wheelbase11 ft 5 13/16 in
Rigid wheelbase11 ft 5 13/16 in
Total wheelbase35 ft 1 1/16 in
Empty weight83,776 lbs83,555 lbs
Service weight92,594 lbs91,271 lbs
Adhesive weight92,594 lbs91,271 lbs
Total weight163,803 lbs162,260 lbs
Water capacity3,170 us gal
Fuel capacity13,228 lbs (coal)
Boiler
Grate area23.7 sq ft
Firebox area102.3 sq ft
Tube heating area1,334.7 sq ft
Evaporative heating area1,437 sq ft
Total heating area1,437 sq ft
VariantCompoundSimple
Power Plant
Driver diameter55.1 in
Boiler pressure174 psi
Expansion typecompoundsimple
Cylinderstwo, HP: 18 7/8 x 26 in
and LP: 29 1/8 x 26 in
two, 18 1/8 x 26 in
Power
Power sourcesteam
Estimated power603 hp (450 kW)
Starting effort17,526 lbf22,867 lbf
with start valve21,031 lbf
Calculated Values
steam locomotive
freight
last changed: 08/2026
